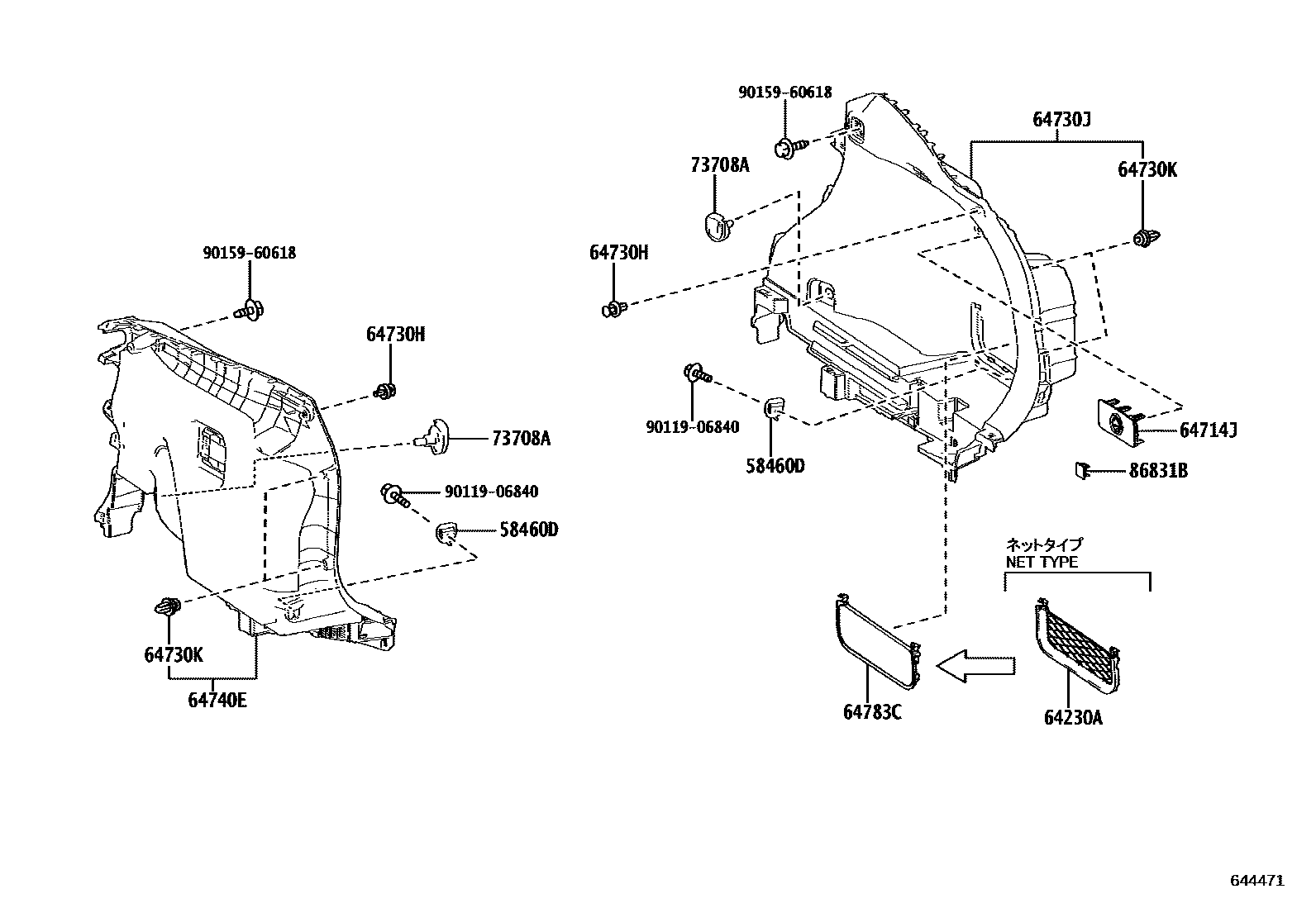

Toyota RAV4 (JPP) — DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
64230ANET ASSY, ROOM PARTITION
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM1#,2#,4#
XLE PACKAGE&DECK TRIM-ADJUSTABLE DECK BOARD & SIDE POCKET NET,DARK GRAY,TRIM1#,2#,4#
DARK GRAY,TRIM2#
64714JCOVER, DECK SIDE TRIM, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
XLE PACKAGE&DECK TRIM-ADJUSTABLE DECK BOARD & SIDE POCKET NET&AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM1#,2#,4#
HV EMOTIONAL PACKAGE&DECK TRIM-ADJUSTABLE DECK BOARD & SIDE POCKET NET&AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM1#,2#,4#
HV EMOTIONAL PACKAGE&DECK TRIM-ADJUSTABLE DECK BOARD & SIDE POCKET NET&AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM1#,2#,4#
AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM1#,2#,4#
AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM2#,4#
AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64730JPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64740EPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
AUDIO-6SPEAKER 8INCH,BLACK,TRIM1#,2#,4#
AUDIO-6SPEAKER 7INCH DVD,BLACK,TRIM1#,2#,4#
KOREA SPEC,BLACK,TRIM1#,2#,4#
AUDIO-JBL 9INCH XM,BLACK,TRIM1#,2#,4#
AUDIO-JBL 9INCH XM,BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
AUDIO-JBL 9INCH XM,BLACK,TRIM2#,4#
XLE PACKAGE&AUDIO-JBL 10.5INCH XM,BLACK,TRIM1#,2#,4#
AUDIO-JBL 10.5INCH XM,BLACK,TRIM2#
64783CPLATE, DECK TRIM POCKET COVER
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
73708ABRACKET SET, TETHER ANCHOR
86831BCOVER, ACCESSORY SOCKET
BLACK
9011906840
9015960618
12 parts on this diagram · 3 diagrams in section
