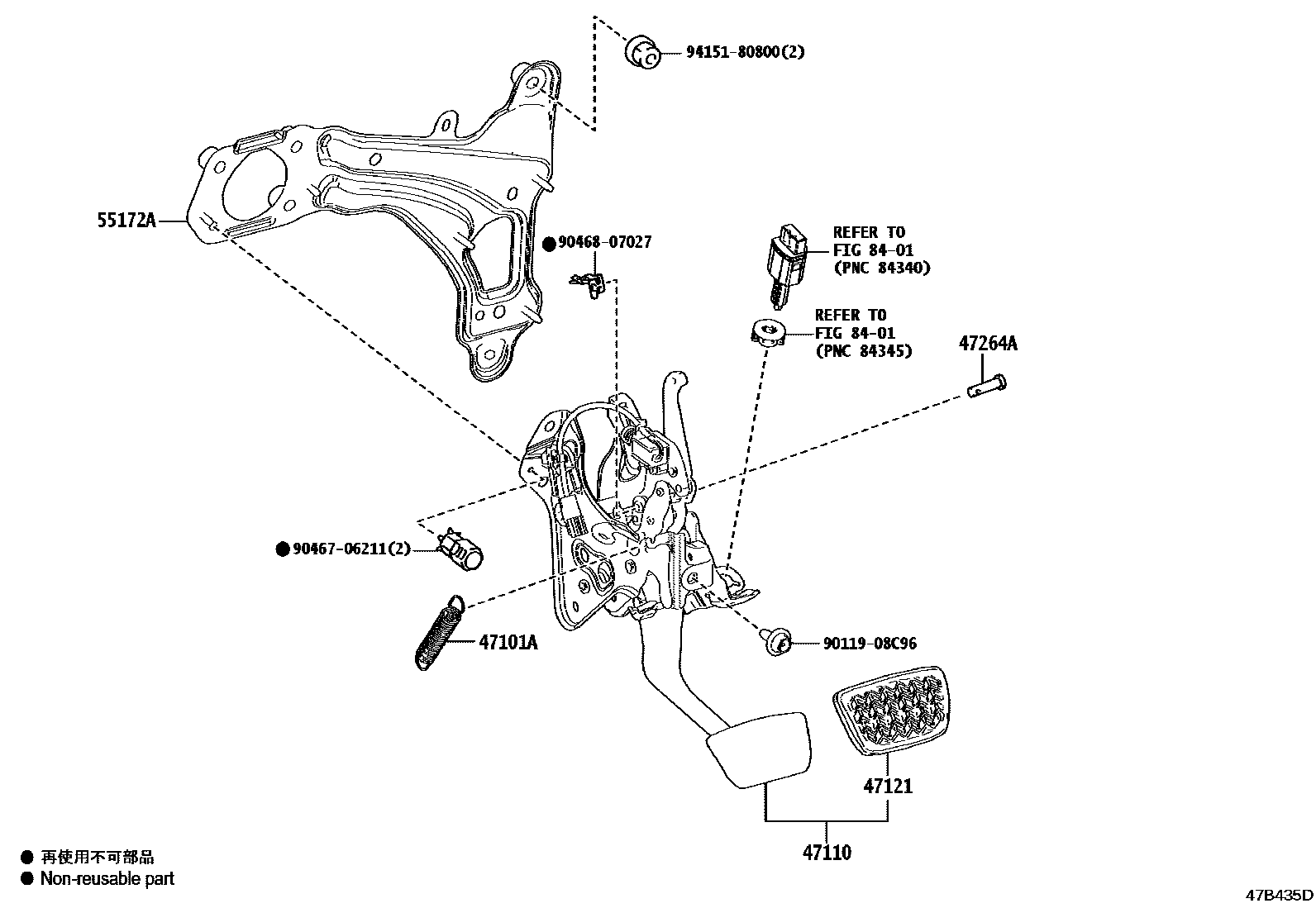

Toyota RAV4 (JPP) — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXAA5#,AXAH5#,AXAL54¥120202008-202210

main90507-12046iAXAA5#,AXAH5#,AXAL54¥120202210-202310

main90507-12046iAXAA5#,AXAH5#,AXAL54¥120202310

main90507-12046iAXAA5#,AXAH5#,AXAL54¥120201811-202007

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42260iAXAA5#202008-202110

sub47110-42390

main47110-42260iAXAA5#201811-202007

sub47110-42390

main47110-42300iAXAH5#,AXAL54202008-202110

sub47110-42410

main47110-42300iAXAH5#,AXAL54201811-202007

sub47110-42410

main47110-42390iAXAA5#202210-202310

main47110-42390iAXAA5#202110-202210

main47110-42390iAXAA5#202310

main47110-42410iAXAH5#,AXAL54202110-202112

main47110-42430iAXAH5#,AXAL54202210-202310

main47110-42430iAXAH5#,AXAL54202310

main47110-42430iAXAH5#,AXAL54202112-202210

47121PAD, BRAKE PEDAL

main47121-48010iAXAA5#,AXAH5#,AXAL54¥520202008-202110

main47121-48010iAXAA5#,AXAH5#,AXAL54¥520201811-202007

main47121-62010iAXAA5#,AXAH5#,AXAL54¥520202210-202310

main47121-62010iAXAA5#,AXAH5#,AXAL54¥520202110-202210

main47121-62010iAXAA5#,AXAH5#,AXAL54¥520202310

47264APIN(FOR PUSH ROD)

main90240-06028iAXAA5#¥90202210-202310

main90240-06028iAXAA5#¥90201811-202007

main90240-06028iAXAA5#¥90202008-202210

main90240-06028iAXAA5#¥90202310

main90240-08078iAXAH5#,AXAL54¥120202310

main90240-08078iAXAH5#,AXAL54¥120202210-202310

main90240-08078iAXAH5#,AXAL54¥120202008-202210

main90240-08082iAXAH5#,AXAL54¥120201811-202007

55172ABASE, BRAKE PEDAL SUPPORT

main55172-42010iAXAA5#,AXAH5#,AXAL54201811-202007

main55172-42010iAXAA5#,AXAH5#,AXAL54202008-202210

main55172-42010iAXAA5#,AXAH5#,AXAL54202210-202310

main55172-42010iAXAA5#,AXAH5#,AXAL54202310

8401

9011908C96

main90119-08C96¥80

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

9415180800

main94151-80800¥80

10 parts on this diagram · 2 diagrams in section
