Toyota RAV4 (JPP) — BATTERY CARRIER

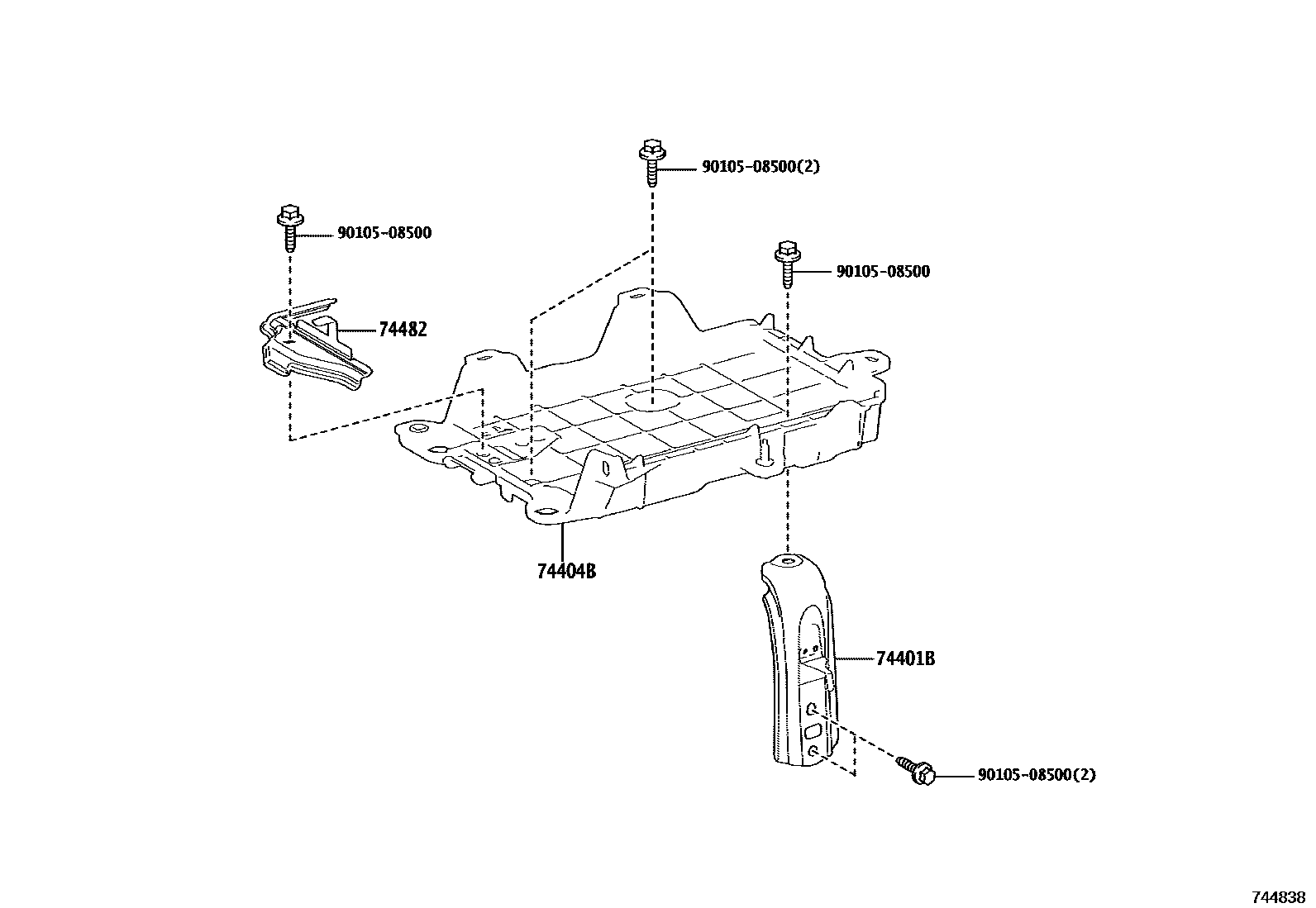

Parts diagram

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-33010i¥1,340202008-202210

main74401-33010i¥1,340201811-202007

main74401-33010i¥1,340202210-202310

main74401-33010i¥1,340202310

74404BCLAMP SUB-ASSY, BATTERY

main74404-33160i¥4,720202008-202210

main74404-33160i¥4,720201811-202007

main74404-33160i¥4,720202210-202310

main74404-33160i¥4,720202310

main74440-42010i¥1,760202310

main74440-42010i¥1,760202210-202310

main74440-42010i¥1,760201811-202007

main74440-42010i¥1,760202008-202210

74482CLAMP, BATTERY, NO.2

main74482-33020i¥820201811-202007

main74482-33020i¥820202008-202210

main74482-33020i¥820202210-202310

main74482-33020i¥820202310

9010508500

main90105-08500¥100

4 parts on this diagram · 3 diagrams in section
