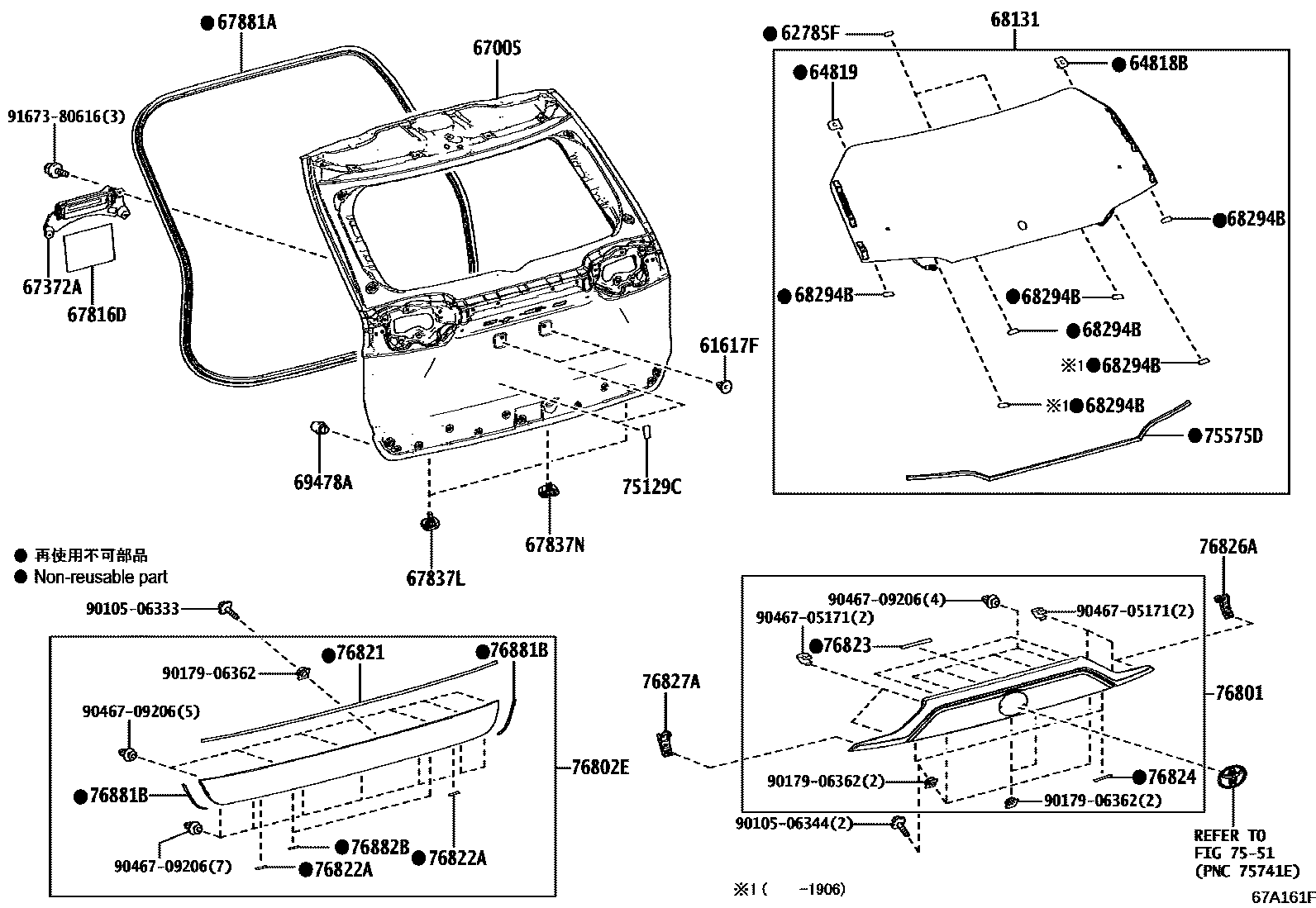

Toyota RAV4 (JPP) — BACK DOOR PANEL & GLASS
61617FRETAINER, BACK DOOR BRACKET
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
KOREA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION & *PBD
67372AWEIGHT, BACK DOOR
67816DSHEET, BACK DOOR PANEL SILENCER
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
REFER TO PNC 86466D
REFER TO PNC 86466D
KOREA SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN),REFER TO PNC 86466D
KOREA SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER 8INCH KOREA,REFER TO PNC 86466D
KOREA SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER 8INCH DVD KOREA,REFER TO PNC 86466D
KOREA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER 7INCH DVD,REFER TO PNC 86466D
KOREA SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER 7INCH DVD,REFERTO PNC 86466D
REFER TO PNC 86466D
KOREA SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
68294BDAM, BACK DOOR GLASS ADHESIVE
69478ACUSHION, BACK DOOR LOWER STOPPER
75129CCUSHION, REAR LICENCE PLATE
7551
75575DMOULDING, BACK WINDOW, LOWER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
RED MC.,3T3
URBAN KHAKI,2QU ,6X3
URBAN KHAKI,6X3
DK. BLUE MC.,8X8
GRAYISH BLUE,8W2
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
RED MC.,3T3
DK. BLUE MC.,8X8
PAINT REQ.
PAINT REQ.
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2VV
ATTITUDE BLACK MC.,070 ,1D6 ,1G3 ,218 ,8W2
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,8W2
ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
9010506333
9010506344
9017906362
9046705171
9046709206
9167380616
32 parts on this diagram · 2 diagrams in section
