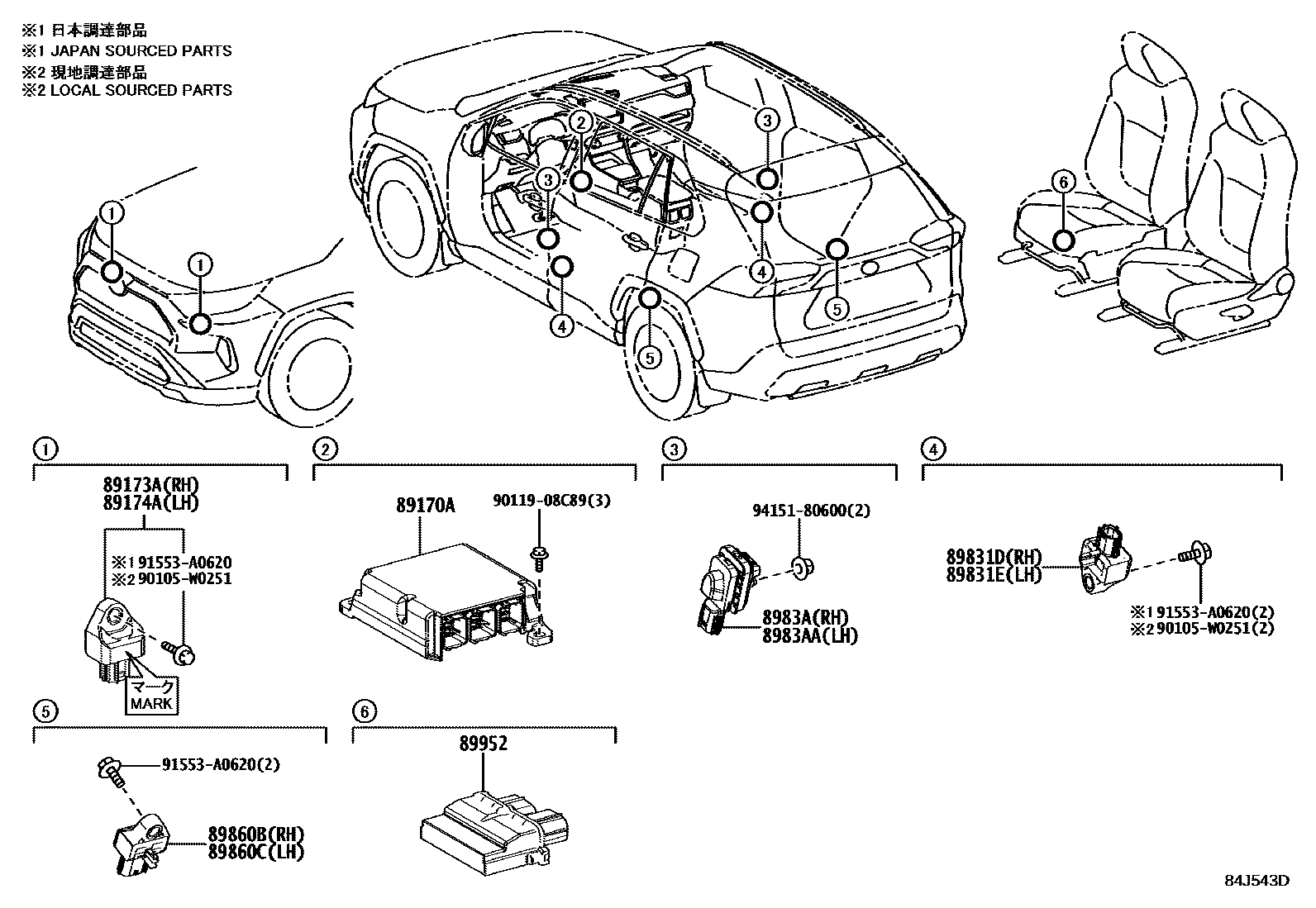

Toyota RAV4 (JPP) — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-42870iAXAA5#201811-202007

main89170-42880iAXAH54,AXAL54201902-202007

main89170-42A00iAXAH52201811-202007

main89170-42C80iAXAA5#202008-202202

main89170-42C81iAXAA5#202310

main89170-42C81iAXAA5#202202-202210

main89170-42C81iAXAA5#202210-202310

main89170-42C90iAXAH54,AXAL54202008-202202

main89170-42C91iAXAH54,AXAL54202202-202210

main89170-42C91iAXAH54,AXAL54202310

main89170-42C91iAXAH54,AXAL54202210-202310

main89170-42D10iAXAH54..G202008-202202

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main89170-42D11iAXAH54..G,M202310

KOREA SPEC&AUDIO-6SPEAKER 8INCH KOREA

main89170-42D11iAXAH52202202-202210

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main89170-42D11iAXAH52202210-202310

KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110201811-202007

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110202202-202208

MARK=J4

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110202210-202310

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110202310

main89173-49505iAXAA5#,AXAH5#,AXAL54¥4,110202008-202210

MARK = RA

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110201811-202007

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110202202-202208

MARK=J4

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110202210-202310

main89173-19515iAXAA5#,AXAH5#,AXAL54¥4,110202310

main89173-49505iAXAA5#,AXAH5#,AXAL54¥4,110202008-202210

MARK = RA

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42060iAXAA5#,AXAH5#,AXAL54¥4,110202008-202202

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200201811-202007

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200202202-202210

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200202210-202310

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200202310

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42060iAXAA5#,AXAH5#,AXAL54¥4,110202008-202202

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200202202-202210

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200202210-202310

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200202310

main89831-47050iAXAA5#,AXAH5#,AXAL54¥8,200201811-202007

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iAXAA5#,AXAH5#,AXAL54¥4,110202310

main8983A-33010iAXAA5#,AXAH5#,AXAL54¥9,100201811-202006

sub8983A-33011¥8,200

main8983A-52010iAXAA5#,AXAH5#,AXAL54¥4,520202008-202101

sub8983A-52011¥4,110

main8983A-52011iAXAA5#,AXAH5#,AXAL54¥4,110202102-202210

main8983A-52011iAXAA5#,AXAH5#,AXAL54¥4,110202210-202310

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iAXAA5#,AXAH5#,AXAL54¥4,110202310

main8983A-33010iAXAA5#,AXAH5#,AXAL54¥9,100201811-202006

sub8983A-33011¥8,200

main8983A-52010iAXAA5#,AXAH5#,AXAL54¥4,520202008-202101

sub8983A-52011¥4,110

main8983A-52011iAXAA5#,AXAH5#,AXAL54¥4,110202102-202210

main8983A-52011iAXAA5#,AXAH5#,AXAL54¥4,110202210-202310

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28040iAXAA5#,AXAH5#,AXAL54¥8,200201811-202007

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28040iAXAA5#,AXAH5#,AXAL54¥8,200201811-202007

89952COMPUTER, OCCUPANT DETECTION

main89952-42020iAXAA5#,AXAH5#,AXAL54201811-202007

main89952-42020iAXAA5#,AXAH5#,AXAL54..M,P,S,V,X202008-202210

main89952-42020iAXAA5#,AXAH5#,AXAL54..M,P,S,V,X202210-202310

main89952-42020iAXAA5#,AXAH54,AXAL54..G202008-202112

main89952-42020iAXAA5#,AXAH5#,AXAL54..M,P,S,V,X202310

main89952-42030iAXAA5#,AXAH54,AXAL54..G202310

main89952-42030iAXAA5#,AXAH54,AXAL54..G202112-202210

main89952-42030iAXAA5#,AXAH54,AXAL54..G202210-202310

90105W0251

main90105-W0251

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
