Toyota RAV4 (JPP) — V-BELT

1106

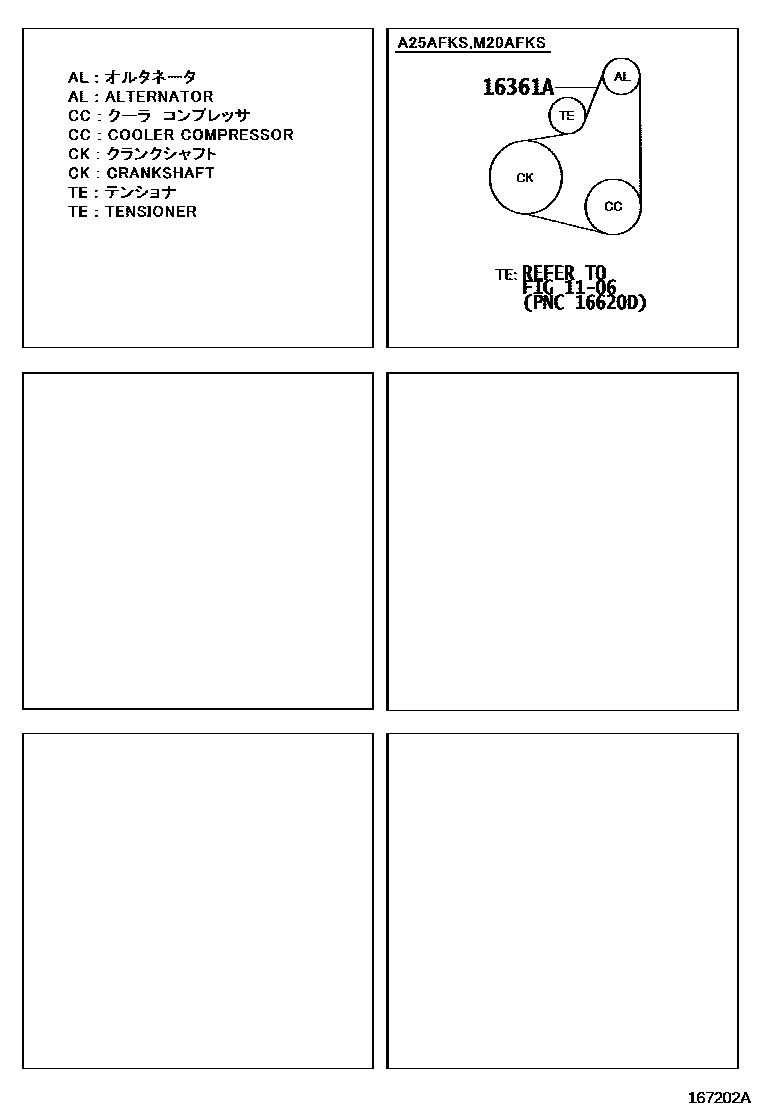

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02735iA25AFKS..AXAA5#¥4,360201811-201908

sub90916-02778¥4,360

main90916-02761iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥4,360201811-202310

main90916-02778iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN¥4,360201909-202310

main90916-02788iM20AFKS..MXAA54..CVT..(GCC,GEN,SA);M20AFKS..MXAA52..CVT..X..(ARL,GCC,GEN);M20AFKS..MXAA52..CVT..(G,M)..(ARL,GEN,SA)¥4,360202303-202310

main90916-W2049iM20AFKS..MXAA5#..RUS201910-202203

2 parts on this diagram · 1 diagram in section
