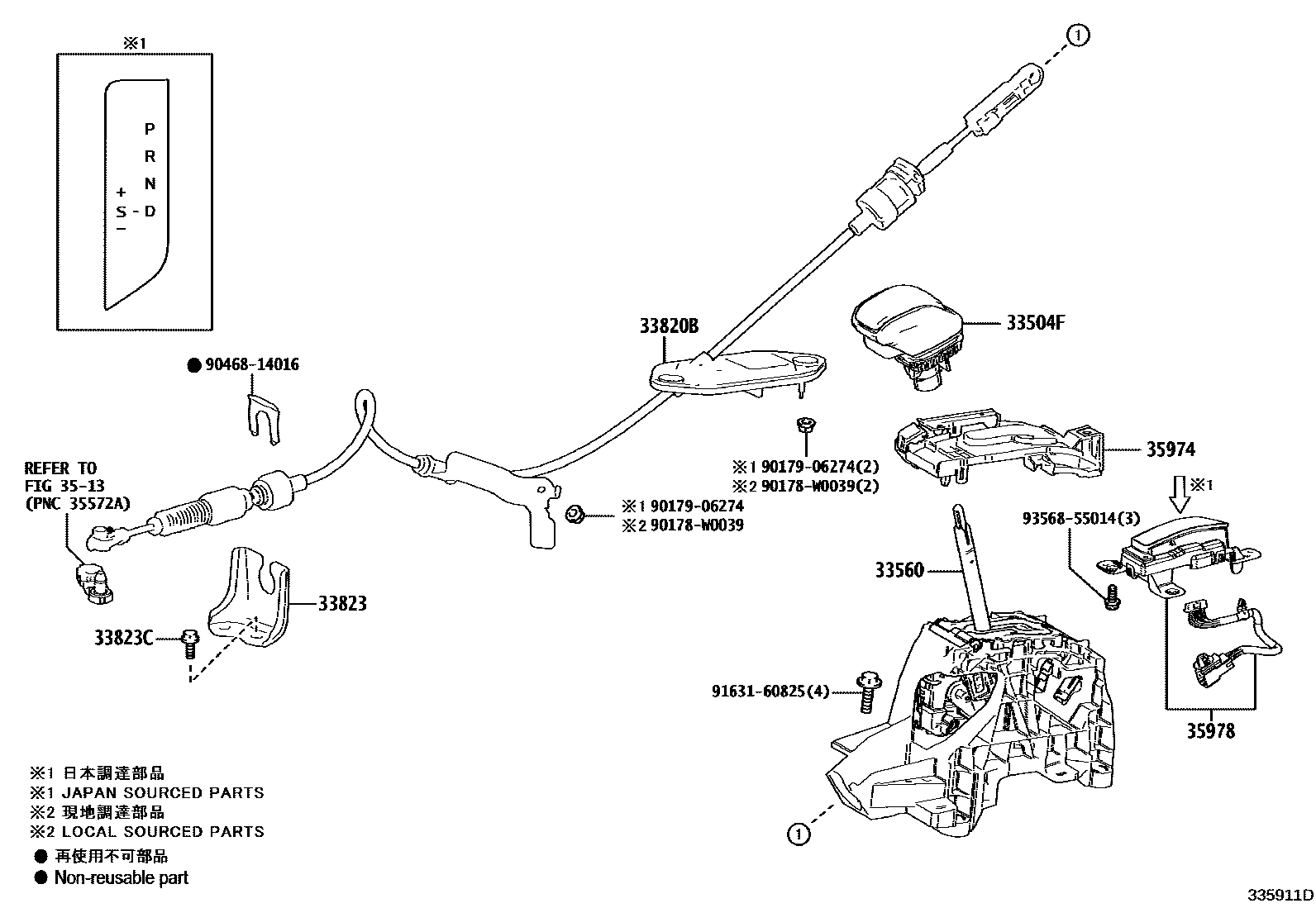

Toyota RAV4 (JPP) — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12320-C2iMXAA52..RHD..6F..(ARL,GEN)201901-202310

BLACK,TRIM1#,2#,4#

sub33504-12320¥1,890

sub33504-33100

main33504-12320-C2iMXAA52..RHD..6F..(ARL,GEN)201901-202310

BLACK,TRIM2#,4#

sub33504-12320¥1,890

sub33504-33100

main33504-12320-C2iMXAA52..6F..RUS202010-202203

BLACK,TRIM2#

sub33504-12320¥1,890

sub33504-33100

main33504-12330-C3iMXAA54..6F..G202008-202210

BLACK,TRIM2#,4#

sub33504-12330¥6,200

main33504-12330-C3iMXAA54..6F..G201811-202210

BLACK,TRIM1#,2#,4#

sub33504-12330¥6,200

main33504-12330-C3iMXAA54..6F..G202008-202210

STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#

sub33504-12330¥6,200

main33504-12330-C3iMXAA5#..LHD..6F..M..GEN201811-202210

BLACK,TRIM2#

sub33504-12330¥6,200

main33504-42130-C0iAXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..M..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main33504-42130-C0iAXAH5#,MXAA52..CVT..X..(ARL,GCC,GEN);AXAA5#,MXAA54..(ATM,CVT)..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main33504-42130-C0iAXAH5#,MXAA52..X..ARL202010-202203

BLACK,TRIM2#

main33542-40050-C0iAXAA54,AXAH52,MXAA5#..(ATM,CVT)..M..GEN201811-202310

STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM2#,4#

main33542-40050-C0iAXAA54,AXAH52,MXAA5#..(ATM,CVT)..M..GEN201811-202310

STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#

main33542-40050-C0iAXAA54,AXAH54,MXAA54..V..(ARL,SA)201901-202310

BLACK,TRIM2#,4#

main33542-40050-C0iAXAA54,AXAH54,MXAA54..V..(ARL,SA)201811-202410

BLACK,TRIM2#

main33542-40050-C0iAXAA54,AXAH54,MXAA54..V..(ARL,SA)201811-202410

BLACK,TRIM1#,2#,4#

main33542-40050-C0iAXAL5#..(M,X)..EUR;AXAH5#,MXAA52..CVT..X..EUR201811-202007

LEATHER PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-10010iMXAA5#..RHD..X..GEN201901-202310

main33560-10020iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥18,400201811-202410

main33560-12640iAXAA52..X..GCC;AXAA54,MXAA5#..JPP..LHD..(ATM,CVT)..X201811-202310

main33560-12650iAXAH5#,AXAL5#..LHD;AXAA5#,MXAA5#..JPP..LHD..(ATM,CVT)..(G,M,V)..(GCC,GEN,RUS)201811-202410

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0R241iAXAA54..RUS201910-202103

sub33820-0R242

main33820-0R242iAXAA54..RUS202104-202203

main33820-0R270iMXAA5#..CVT..RUS201910-202103

sub33820-0R271

main33820-0R271iMXAA5#..CVT..RUS202104-202203

main33820-42460iAXAA5#..JPP¥12,000201811-202310

main33820-42470iMXAA5#..JPP..CVT¥12,000201811-202310

main33820-42480iAXAL52..ARL;AXAH52..RHD..GEN;AXAH52,AXAL52..RHD..X..EUR¥14,700201811-202410

main33820-42490iAXAL54..ARL;AXAH54..RHD..M..GEN;AXAH54,AXAL54..RHD..X..EUR¥14,700201902-202410

main33820-42500iMXAA5#..6F..RUS201811-202310

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)¥650201811-202310

main33823-33070iAXAA54..RUS¥510201811-202310

main33823-42050iAXAH54..RUS¥1,150201811-202410

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820iAXAH54..RUS¥80201811-202410

3513

35974HOUSING, POSITION INDICATOR, LOWER

main35974-42040iAXAH54..RUS201811-202410

main35974-42050iMXAA52..G..EUR;MXAA52..CVT..X..SA¥2,970201811-202410

35978INDICATOR, SHIFT POSITION

main35978-42010iAXAA5#..LHD..(GCC,GEN)201811-202310

main35978-42020iAXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)201901-202310

main35978-42030iMXAA5#..JPP..LHD..CVT..(GCC,GEN,RUS)201811-202310

main35978-42040iMXAA5#..RHD..CVT¥6,600201811-202310

main35978-42050iAXAH54..RUS201811-202410

main35978-42060iAXAH52..RHD..G..GEN¥6,700201811-202410

90178W0039

main90178-W0039¥60

9017906274

main90179-06274¥70

9046814016

main90468-14016¥160

9163160825

main91631-60825¥80

9356855014

main93568-55014¥70

13 parts on this diagram · 9 diagrams in section
