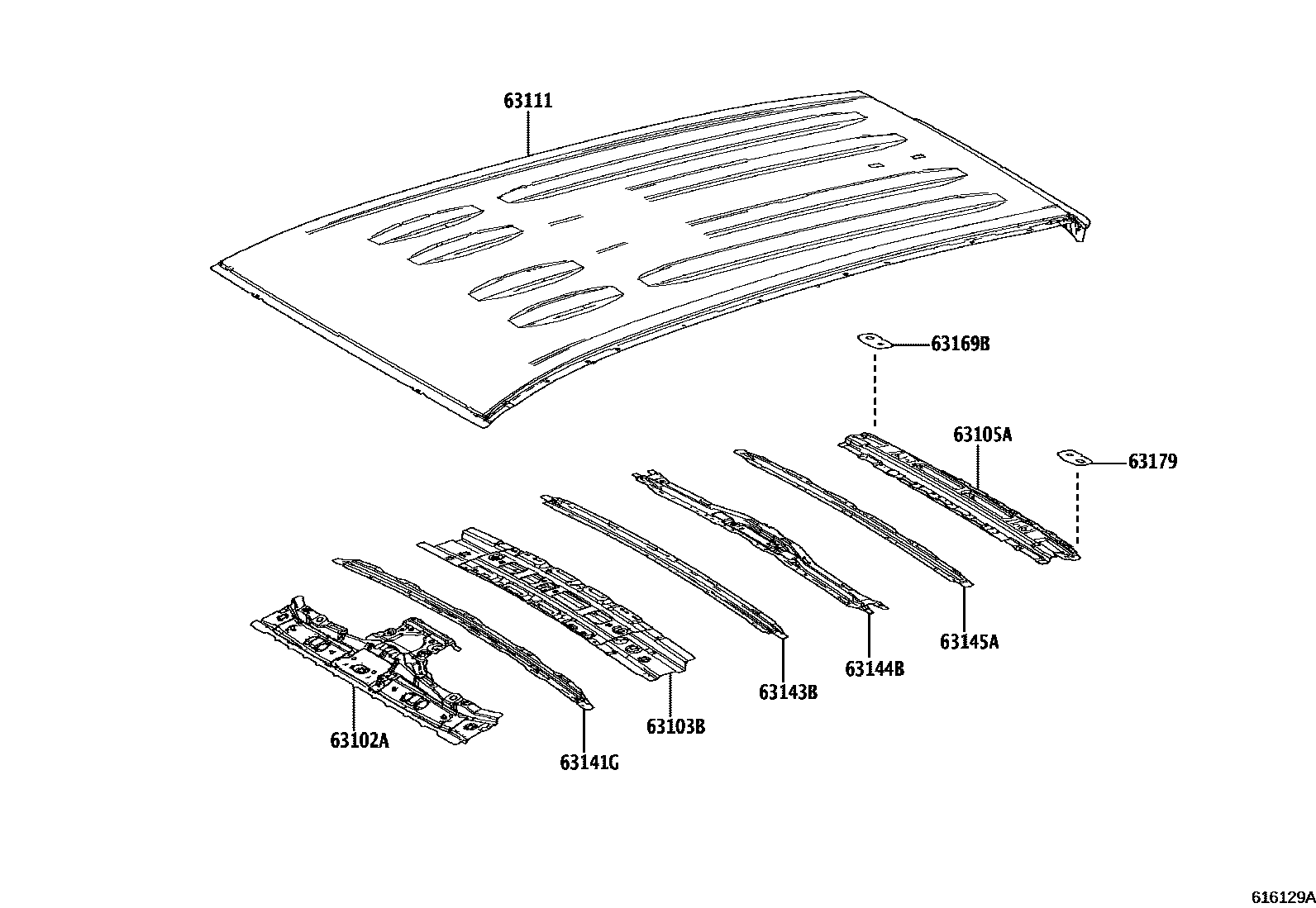

Toyota RAV4 (JPP) — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1SLIDING ROOF(MOON ROOF) 0005 1SLIDING ROOF(PANORAMA ROOF) 0006 1ROOF RAIL 0007 1ROOF RAIL(FLAT TYPE) 0009 1ROOF RAIL 0010 1ROOF RAIL(FLAT TYPE) 0011 1ROOF RAIL(BRIDGE TYPE)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42907iAXAA54..EUR;AXAH52..RHD..G..GEN¥8,200201811-202005

sub63102-42912¥8,200

main63102-42910iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥6,200202006-202410

main63102-42911iAXAH54..P..ARL;AXAH54..(G,V)..(GCC,SA);AXAA5#,MXAA52..G..(GCC,SA);AXAH52,MXAA54..(P,V)..(ARL,SA)¥5,500202112-202310

MOON ROOF-WIHT

main63102-42911iAXAH5#..P..ARL;AXAA54..G..(GCC,SA);AXAA52,AXAH54,MXAA5#..(G,V)..(GCC,SA)¥5,500202210-202310

ROOF RAIL-WITH(FLAT TYPE)&MOON ROOF-WIHT

main63102-42912iAXAA5#,AXAH5#,AXAL5#,MXAA5#¥8,200202005-202006

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42040iAXAA54..LHD..V;AXAH54..M..EUR;AXAH52..LHD..GEN;AXAH54..LHD..M..GEN;MXAA52..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT..(M,X);AXAH5#..(M,P,X)..(ARL,GCC);A¥8,500201811-202410

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42050iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥5,400201811-202410

63111PANEL, ROOF

main63111-0R210iMXAA5#..X..RUS201910-202203

sub63111-42250

main63111-0R220iAXAA54,MXAA5#..(G,M)..RUS201910-202203

sub63111-42260¥49,400

main63111-42250iAXAH54..M..GCC;MXAA5#..GCC,GEN;AXAA5#..(M,X)..GCC;AXAH52..EUR,GCC,GEN;AXAH54..X..(ARL,GCC);AXAH52,MXAA52..X..ARL;AXAA54,AXAH54,AXAL5#..EUR,GEN201811-202410

main63111-42261iAXAA52..(M,X)..GCC;AXAA54..LHD..V..GEN;AXAH54..LHD..M..GEN;MXAA52..CVT..X..ARL;AXAA54..(G,M,X)..GEN;AXAH52..LHD..(GCC,GEN);AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT.¥44,900202112-202210

ROOF RAIL-WITH(FLAT TYPE),REFER TO PNC 86466D

main63111-42261iAXAA52..(M,X)..GCC;AXAA54..LHD..V..GEN;AXAH54..LHD..M..GEN;MXAA52..CVT..X..ARL;AXAA54..(G,M,X)..GEN;AXAH52..LHD..(GCC,GEN);AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT.¥44,900202112-202210

ROOF RAIL-WITH(BRIDGE TYPE),REFER TO PNC 86466D

main63111-42261iMXAA54..LHD..V..GEN¥44,900202112-202210

REFER TO PNC 86466D

main63111-42261iAXAH54..GEN;AXAH52..LHD..M;AXAH54..M..GCC;MXAA5#..GCC,GEN;AXAA5#..(M,X)..GCC;AXAH54..X..(ARL,GCC);AXAH52,MXAA52..X..ARL;AXAA54,AXAL5#..EUR,GEN;AXAH54..LHD..(G,M,P,V¥44,900202210-202310

ROOF RAIL-WITH(FLAT TYPE)

main63111-42281iAXAA5#,AXAH5#,MXAA5#..M..(GCC,GEN)202210-202310

MOON ROOF-WIHT

main63111-42281iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

REFER TO PNC 86466D

main63111-42281iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

ROOF RAIL-WITH(FLAT TYPE)&MOON ROOF-WIHT,REFER TO PNC 86466D

main63111-42281iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

MOON ROOF-WIHT,REFER TO PNC 86466D

main63111-42281iAXAA54,AXAH5#,MXAA52..(G,V)..ARL202210-202310

ROOF RAIL-WITH(FLAT TYPE)&MOON ROOF-WIHT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-0R080iAXAA54,MXAA5#..RUS201910-202203

sub63143-42070¥1,420

main63143-42070iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥1,420201811-202410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-0R090iAXAA54,MXAA5#..RUS201910-202203

sub63144-42050¥2,360

main63144-42050iAXAA54..EUR;AXAH52..RHD..G..GEN¥2,360201811-202410

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63108-0R040iAXAA54,MXAA5#..RUS201910-202203

sub63108-42010¥3,280

main63108-42010iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥3,280201811-202410

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-0R090iAXAA54,MXAA5#..RUS201910-202203

sub63149-42080¥1,650

main63149-42080iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥1,650201811-202410

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥200201811-202410

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥200201811-202410

10 parts on this diagram · 10 diagrams in section
