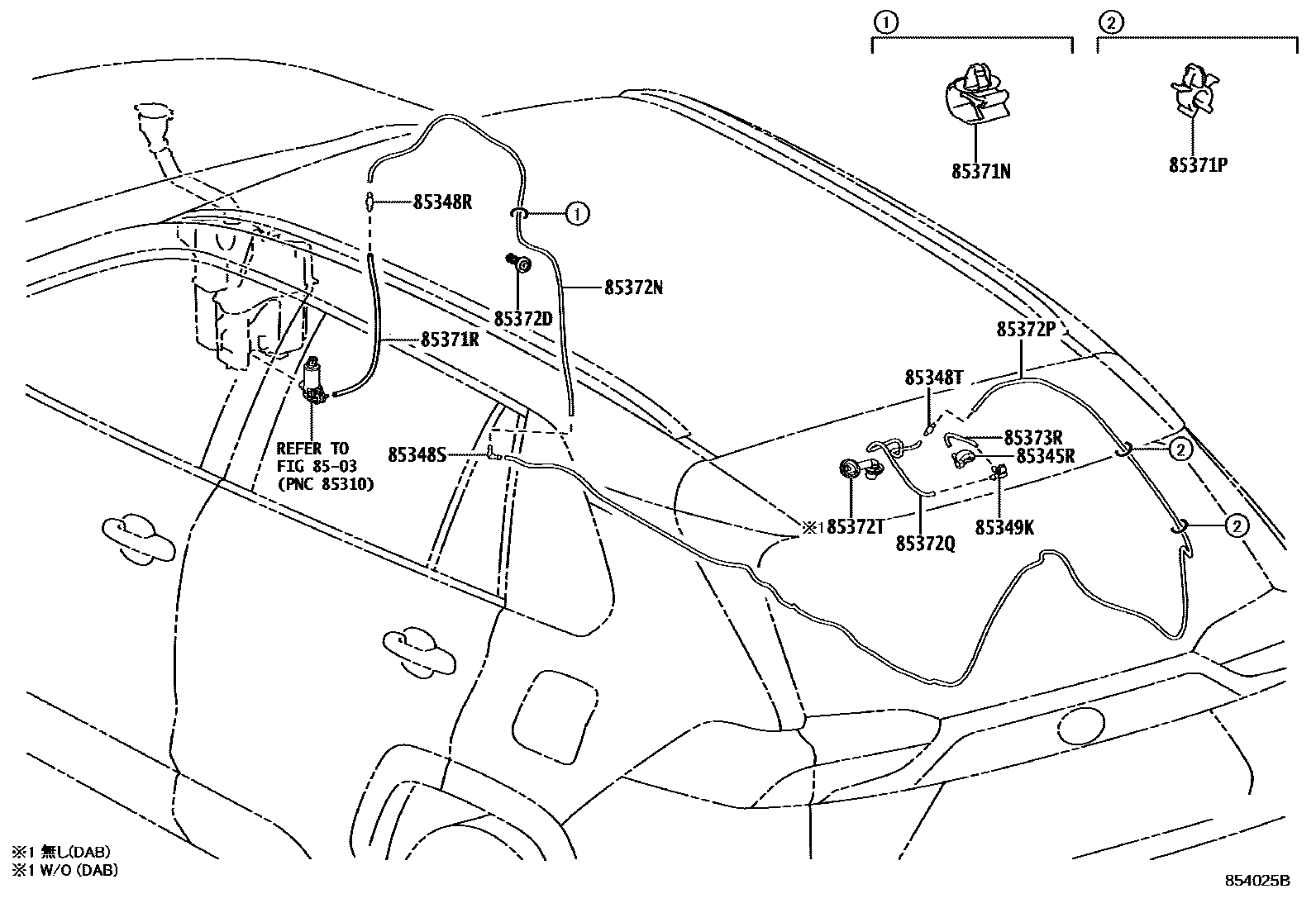

Toyota RAV4 (JPP) — REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥120201811-202410

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥120201811-202410

85349KJOINT, REAR WASHER ELBOW, NO.2

main85375-60290iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥140201811-202410

85371NCLAMP, REAR WASHER HOSE

main82711-16790iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥120201811-202410

85371PCLAMP, REAR WASHER HOSE, NO.2

main90469-07011iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥110201811-202410

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62092iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥0201811-202410

L=400

main90099-62092iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥0201811-202410

L=400,COLD AREA SPEC

main90099-62092iAXAA54..EUR;AXAH52..RHD..G..GEN¥0201811-202310

L=400,COLD AREA SPEC,WITH(REAR SEAT HEATER)

main90099-62092iAXAA54..EUR;AXAH52..RHD..G..GEN¥0201811-202310

L=400,COLD AREA SPEC,WITHOUT(REAR SEAT HEATER)

main90099-62092iAXAA54..EUR;AXAH52..RHD..G..GEN¥0201811-202310

L=400,COLD AREA SPEC,WITH(STEERING HEATER)

main90099-62092iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥0202210-202410

L=400,COLD AREA SPEC&FRONT FOG & DRIVING LAMP-WITH(LED)

85372DGROMMET, REAR WASHER HOSE

main85379-12850iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥0201811-202410

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62187iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

L=1300

main90099-62187iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202007

L=1300,AUDIO-6SPEAKER 8INCH DAB, EUROPE

main90099-62187iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202007

L=1300,AUDIO-JBL 8INCH DAB, EUROPE

main90099-62187iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202210

L=1300,AUDIO-4SPEAKER(AUDIO LESS)

main90099-62187iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

L=1300,AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main90099-62187iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

L=1300,EU BASIC PACKAGE

main90099-62187iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

L=1300,AUDIO-6SPEAKER 7INCH T-DAB DVD, U.A.E.

main90099-62187iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

L=1300,AUDIO-6SPEAKER(AUDIO LESS)

main90099-62187iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

L=1300,AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main90099-62187iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202410

L=1300,AUDIO-6SPEAKER 10.5INCH, EUROPE

main90099-62187iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

L=1300,AUDIO-6SPEAKER 8INCH, GENERAL

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62121iAXAA5#,AXAH5#,AXAL5#,MXAA5#201811-202410

L=5000(*H,L=3900)

main90099-62121iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202209

L=5000(*H,L=3900),AUDIO-4SPEAKER(AUDIO LESS)

main90099-62121iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

L=5000(*H,L=3900),AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main90099-62121iMXAA52..CVT;AXAA54..LHD..V;MXAA54..RHD..CVT;MXAA54..(M,X)..GCC;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..E202008-202209

L=5000(*H,L=3900),EU BASIC PACKAGE

main90099-62121iMXAA52..CVT;AXAA54..LHD..V;MXAA54..RHD..CVT;MXAA54..(M,X)..GCC;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..E202008-202209

L=5000(*H,L=3900),AUDIO-6SPEAKER 7INCH T-DAB DVD, U.A.E.

main90099-62121iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202210-202309

L=5000(*H,L=3900),AUDIO-6SPEAKER(AUDIO LESS)

main90099-62121iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202210-202309

L=5000(*H,L=3900),AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main90099-62121iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202210-202410

L=5000(*H,L=3900),AUDIO-6SPEAKER 10.5INCH, EUROPE

main90099-62121iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202210-202309

L=5000(*H,L=3900),AUDIO-6SPEAKER 8INCH, GENERAL

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62180iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

L=480

main90099-62180iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202007

L=480,AUDIO-6SPEAKER 8INCH DAB, EUROPE

main90099-62180iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202007

L=480,AUDIO-JBL 8INCH DAB, EUROPE

main90099-62180iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202210

L=480,AUDIO-4SPEAKER(AUDIO LESS)

main90099-62180iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

L=480,AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main90099-62180iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

L=480,EU BASIC PACKAGE

main90099-62180iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

L=480,AUDIO-6SPEAKER 7INCH T-DAB DVD, U.A.E.

main90099-62180iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

L=480,AUDIO-6SPEAKER(AUDIO LESS)

main90099-62180iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

L=480,AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main90099-62180iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202410

L=480,AUDIO-6SPEAKER 10.5INCH, EUROPE

main90099-62180iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

L=480,AUDIO-6SPEAKER 8INCH, GENERAL

85372TGROMMET, WASHER

main85373-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥440201811-202203

main85373-42030iAXAA52..X..GEN;AXAH54..G..ARL;AXAA54..(G,M)..ARL;AXAL52..(G,X)..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH52..RHD..M..(ARL,GEN);MXAA5#..RHD..6F..(ARL,GEN);AXAA¥440202008-202210

AUDIO-4SPEAKER(AUDIO LESS)

main85373-42030iAXAA54..LHD..V;MXAA54..LHD..6F..GEN;MXAA54..CVT..(GEN,SA);AXAA52..LHD..(G,M)..GEN;AXAH52,MXAA52..LHD..GEN;AXAH54..LHD..M..(GCC,GEN);AXAA54..(G,M,X)..(GCC,GEN,SA);MX¥440202008-202210

EU BASIC PACKAGE

main85373-42030iMXAA52..X..GEN;MXAA52..(G,M)..(GEN,SA);AXAA54,AXAH5#,MXAA54..GEN,SA¥440202210-202310

AUDIO-6SPEAKER(AUDIO LESS)

main85373-42030iMXAA52..X..GEN;MXAA52..(G,M)..(GEN,SA);AXAA54,AXAH5#,MXAA54..GEN,SA¥440202210-202310

AUDIO-6SPEAKER 10.5INCH, EUROPE

main85373-42030iMXAA52..X..GEN;MXAA52..(G,M)..(GEN,SA);AXAA54,AXAH5#,MXAA54..GEN,SA¥440202210-202310

AUDIO-6SPEAKER 8INCH, GENERAL

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-62128iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥200201811-202410

L=125

main90099-62128iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥200201811-202007

L=125,AUDIO-6SPEAKER 8INCH DAB, EUROPE

main90099-62128iAXAA54..EUR;AXAH52..RHD..G..GEN¥200201811-202007

L=125,AUDIO-JBL 8INCH DAB, EUROPE

main90099-62128iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥200202008-202210

L=125,AUDIO-4SPEAKER(AUDIO LESS)

main90099-62128iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥200202008-202111

L=125,AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main90099-62128iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥200202008-202210

L=125,EU BASIC PACKAGE

main90099-62128iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥200202008-202210

L=125,AUDIO-6SPEAKER 7INCH T-DAB DVD, U.A.E.

main90099-62128iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥200202210-202310

L=125,AUDIO-6SPEAKER(AUDIO LESS)

main90099-62128iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥200202210-202310

L=125,AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main90099-62128iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥200202210-202410

L=125,AUDIO-6SPEAKER 10.5INCH, EUROPE

main90099-62128iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥200202210-202310

L=125,AUDIO-6SPEAKER 8INCH, GENERAL

15 parts on this diagram · 1 diagram in section
