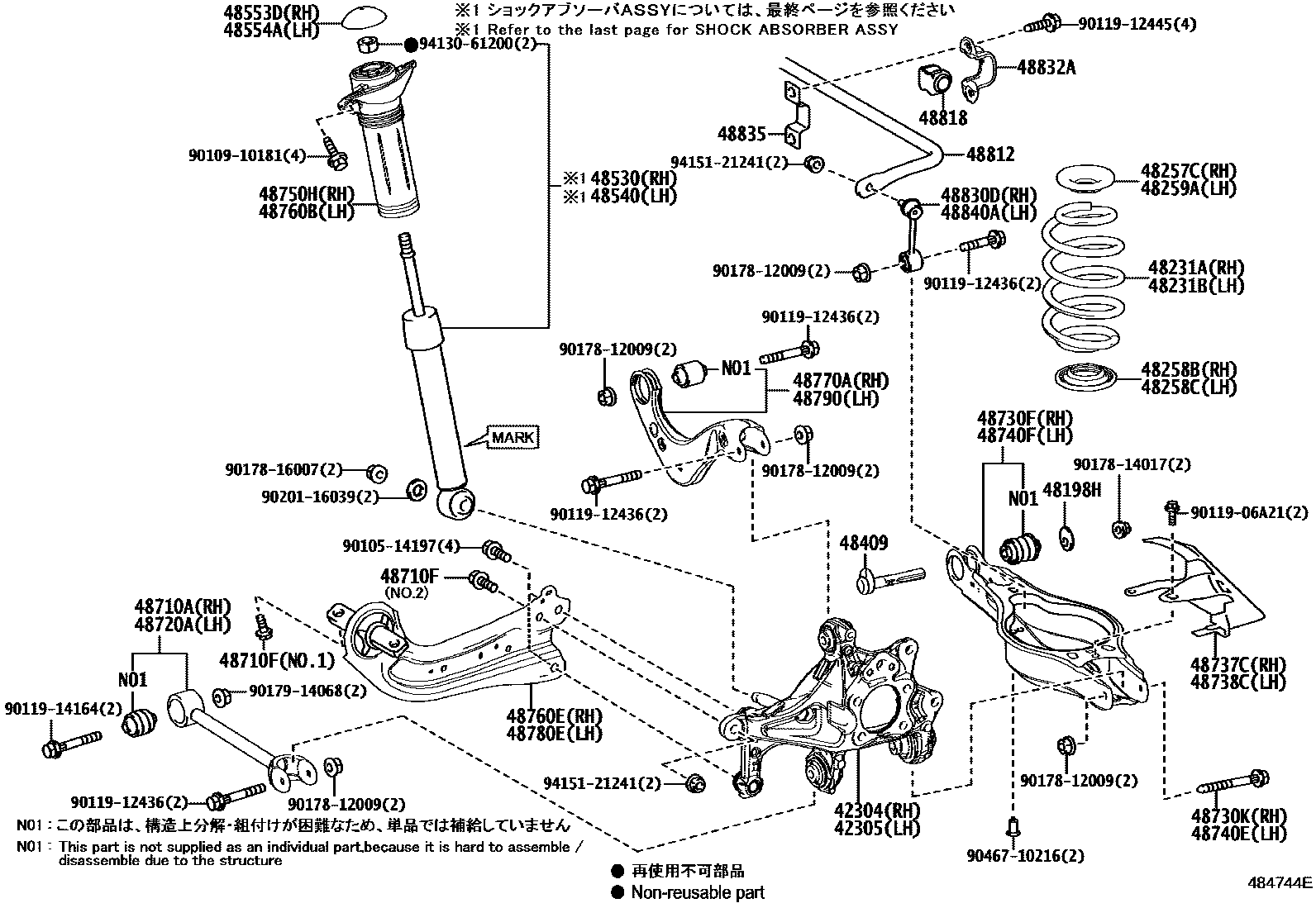

Toyota RAV4 (JPP) — REAR SPRING & SHOCK ABSORBER

0001 1 0003 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-42060iMXAA52..RUS¥21,100201811-202410

main42304-42070iAXAA54,AXAH54,AXAL54..JPP;MXAA54..JPP..(GCC,GEN,RUS,SA)¥21,100201811-202410

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-42060iAXAH52..RHD..G..GEN¥21,100201811-202410

main42305-42070iAXAA54,AXAH54,AXAL54..JPP;MXAA54..JPP..(GCC,GEN,RUS,SA)¥21,100201811-202410

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥520201811-202410

48231ASPRING, COIL, REAR RH

main48231-42460iMXAA52..GCC202112-202310

main48231-42470iMXAA54..GCC¥5,400202112-202310

main48231-42540iAXAA52..X..GEN;MXAA52..RHD..6F..(ARL,GEN)¥6,700201811-202310

main48231-42550iMXAA54..(M,X)..GCC¥5,200201811-202310

main48231-42560iMXAA54..G..EUR¥5,200201811-202310

main48231-42580iAXAA54..JPP..(M,X);AXAH52..X..(ARL,GEN);AXAH52,AXAL52..M..EUR;AXAH52,AXAL52..LHD..X..EUR¥5,400201811-202410

main48231-42580iAXAH52..LHD..M..EUR;AXAH52..X..(ARL,EUR,GEN);AXAA54,AXAL52..JPP..(M,X)¥5,400202210-202310

JORDAN SPEC

main48231-42590iAXAA54..G..ARL;AXAH52..RHD..GEN;AXAL52..(G,M)..ARL;AXAA54..RHD..V..GEN¥5,400201811-202310

main48231-42630iAXAL54..(G,M)..ARL;AXAH54..RHD..M..GEN¥6,700201902-202410

main48231-42700iAXAL54..RHD..X;AXAH54..RHD..X..EUR¥6,700201902-202410

main48231-42840iAXAH52..GCC202210-202310

main48231-42840iAXAA54..M..GCC202112-202210

SAUDI ARABIA SPEC

48231BSPRING, COIL, REAR LH

main48231-42460iMXAA52..GCC202112-202310

main48231-42470iMXAA54..(M,X)..GCC¥5,400202112-202310

main48231-42540iMXAA52..(M,X)..RUS¥6,700201811-202310

main48231-42550iMXAA54..JPP..(M,X)..(GEN,RUS);AXAA52,MXAA52..G..(ARL,GCC,GEN,SA)¥5,200201811-202310

main48231-42560iMXAA54..G..RUS¥5,200201811-202310

main48231-42580iAXAH52..RHD..M..EUR¥5,400201811-202410

main48231-42580iAXAH52..LHD..M..EUR;AXAH52..X..(ARL,EUR,GEN);AXAA54,AXAL52..JPP..(M,X)¥5,400202210-202310

JORDAN SPEC

main48231-42590iAXAA54..G..EUR;AXAH52..RHD..G..GEN¥5,400201811-202310

main48231-42630iAXAL54..G,P,V;AXAH54..LHD..(G,P,V)..EUR;AXAH54..(G,M,P,V)..(ARL,GCC,GEN,SA)¥6,700201902-202410

main48231-42700iAXAH54,AXAL54..(M,X)..EUR;AXAH54,AXAL54..X..(ARL,GCC)¥6,700201902-202410

main48231-42840iAXAH52..GCC202210-202310

main48231-42840iAXAA54..M..GCC202112-202210

SAUDI ARABIA SPEC

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iAXAA54..EUR;AXAH52..RHD..G..GEN¥400201811-202204

main48257-47020iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥400202204-202410

(J)

main48257-F4010iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202204-202410

(L)

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-47010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥280201811-202204

main48258-47010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥280202204-202410

(J)

main48258-F4010iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202204-202410

(L)

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-47010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥280201811-202204

main48258-47010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥280202204-202410

(J)

main48258-F4010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202204-202410

(L)

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥400201811-202204

main48257-47020iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥400202204-202410

(J)

main48257-F4010iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202204-202410

(L)

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iAXAA5#,AXAH5#,AXAL5#,MXAA5#¥640201811-202410

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80892iMXAA5#..(M,X)..GCC202112-202210

MARK 48530-42100,REFER TO LAST PAGE

main48530-80892iAXAA54..V..GCC202210-202310

MARK 48530-42100,SAUDI ARABIA SPEC

main48530-80892iAXAA54..V..GCC202210-202310

MARK 48530-42100

main48530-80892iMXAA5#..(M,X)..GCC202112-202210

MARK 48530-42100,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48530-80893iAXAH52..GCC202210-202310

MARK 48530-42180

main48530-80893iAXAH52..GCC202112-202210

MARK 48530-42180,REFER TO LAST PAGE

main48530-80893iAXAH52..GCC202210-202310

MARK 48530-42180,SAUDI ARABIA SPEC

main48530-80895iMXAA52..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA52..CVT..(ARL,EUR,GEN,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)¥4,570202008-202210

MARK 48530-42190,REFER TO LAST PAGE

main48530-80895iMXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥4,570201811-202310

MARK 48530-42190

main48530-80896iMXAA54..(M,X)..GCC¥4,570202008-202210

MARK 48530-42120,REFER TO LAST PAGE

main48530-80896iAXAA54,MXAA54..JPP¥4,570201811-202310

MARK 48530-42120

main48530-80897iAXAH52..GCC¥4,570202210-202310

MARK 48530-42130,JORDAN SPEC

main48530-80897iAXAH52..X..(ARL,GEN);AXAL52..(G,M,P)..EUR;AXAH52..LHD..(G,M,P)..GEN;AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR)¥4,570202008-202210

MARK 48530-42130,REFER TO LAST PAGE

main48530-80897iAXAH52..RHD..M..EUR¥4,570201811-202410

MARK 48530-42130

main48530-80898iAXAL54;AXAH54..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR¥4,570201902-202410

MARK 48530-42140

main48530-80898iAXAL54..ARL;AXAH54..RHD..M..GEN;AXAH54,AXAL54..RHD..X..EUR¥4,570202008-202210

MARK 48530-42140,REFER TO LAST PAGE

main48530-8Z093iMXAA5#..(M,X)..GCC202112-202204

MARK 48530-0R270,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48530-8Z093iMXAA5#..(M,X)..GCC202112-202204

MARK 48530-0R270,REFER TO LAST PAGE

main48530-8Z095iAXAH52..GCC202112-202204

MARK 48530-0R020,REFER TO LAST PAGE

main48530-8Z104iMXAA52..RUS202010-202203

MARK 48530-0R180,REFER TO LAST PAGE

main48530-8Z104iMXAA52..RUS201910-202009

MARK 48530-0R180

main48530-8Z105iAXAA54,MXAA54..RUS201910-202009

MARK 48530-0R190

main48530-8Z105iAXAA54,MXAA54..RUS202010-202203

MARK 48530-0R190,REFER TO LAST PAGE

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80892iMXAA5#..GCC202210-202310

MARK 48530-42100

main48530-80892iMXAA5#..(M,X)..GCC202112-202210

MARK 48530-42100,REFER TO LAST PAGE

main48530-80892iMXAA5#..(M,X)..GCC202112-202210

MARK 48530-42100,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48530-80892iMXAA5#..GCC202210-202310

MARK 48530-42100,SAUDI ARABIA SPEC

main48530-80893iAXAH52..GCC202210-202310

MARK 48530-42180

main48530-80893iAXAH54..GCC202210-202310

MARK 48530-42180,SAUDI ARABIA SPEC

main48530-80893iAXAH52..GCC202112-202210

MARK 48530-42180,REFER TO LAST PAGE

main48530-80895iAXAA52;MXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA)¥4,570201811-202310

MARK 48530-42190

main48530-80895iMXAA52..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA52..CVT..(ARL,EUR,GEN,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)¥4,570202008-202210

MARK 48530-42190,REFER TO LAST PAGE

main48530-80896iAXAA54,MXAA54..JPP¥4,570201811-202310

MARK 48530-42120

main48530-80896iAXAA54..LHD..V;AXAA54..(M,V,X)..ARL;MXAA54..JPP..LHD..6F;MXAA54..CVT..(EUR,GEN,SA);AXAA54..(G,M,X)..(GCC,GEN,SA)¥4,570202008-202210

MARK 48530-42120,REFER TO LAST PAGE

main48530-80897iAXAL52;AXAH52..ARL,GEN;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR¥4,570202210-202310

MARK 48530-42130,JORDAN SPEC

main48530-80897iAXAH52..GCC¥4,570201811-202410

MARK 48530-42130

main48530-80897iAXAH52..X..(ARL,GEN);AXAL52..(G,M,P)..EUR;AXAH52..LHD..(G,M,P)..GEN;AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR)¥4,570202008-202210

MARK 48530-42130,REFER TO LAST PAGE

main48530-80898iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAH54..X..(ARL,GCC);AXAL54..(G,M,P,V)..EUR;AXAH54,AXAL54..LHD..X..EUR;AXAH54..(G,M,P,V)..(ARL,EUR,GCC,SA)¥4,570202008-202210

MARK 48530-42140,REFER TO LAST PAGE

main48530-80898iAXAH54,AXAL54¥4,570201902-202410

MARK 48530-42140

main48530-8Z093iMXAA5#..(M,X)..GCC202112-202204

MARK 48530-0R270,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48530-8Z093iMXAA5#..(M,X)..GCC202112-202204

MARK 48530-0R270,REFER TO LAST PAGE

main48530-8Z095iAXAH52..GCC202112-202204

MARK 48530-0R020,REFER TO LAST PAGE

main48530-8Z104iMXAA52..RUS202010-202203

MARK 48530-0R180,REFER TO LAST PAGE

main48530-8Z104iMXAA52..RUS201910-202009

MARK 48530-0R180

main48530-8Z105iAXAA54,MXAA54..RUS202010-202203

MARK 48530-0R190,REFER TO LAST PAGE

main48530-8Z105iAXAA54,MXAA54..RUS201910-202009

MARK 48530-0R190

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iAXAA54,MXAA5#..RUS¥340201811-202410

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥340201811-202410

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-42040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥3,710201811-202410

48710FBOLT(FOR REAR TRAILING ARM)

main90119-12451iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥190201811-202410

NO.2

main90119-12452iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥190201811-202410

NO.1

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-42040iAXAA54,MXAA5#..RUS¥3,710201811-202410

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-42060iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥6,700201811-202410

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥240201811-202410

48737CCOVER, LOWER CONTROL ARM, RH NO.2

main48737-42060iAXAA54..EUR¥2,200201811-202410

48738CCOVER, LOWER CONTROL ARM, LH NO.2

main48738-42030iAXAA54..EUR¥2,030201811-202410

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥240201811-202410

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,700201811-202410

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,670201811-202410

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-42020iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥2,670201811-202410

48760EARM ASSY, TRAILING, REAR RH

main48760-42070iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥6,100201811-202410

main48760-42080iAXAH54..RUS¥6,100201902-202203

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-42050iAXAA54..EUR;AXAH52..RHD..G..GEN¥5,900201811-202410

48780EARM ASSY, TRAILING, REAR LH

main48780-42070iMXAA5#..6F..G..(GEN,SA)¥6,100201811-202410

main48780-42080iAXAA54,MXAA5#..RUS¥6,100201902-202203

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-42030iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥5,900201811-202410

48812BAR, STABILIZER, REAR

main48812-42050iMXAA52..RUS¥6,000201811-202210

main48812-42050iAXAA54..M..GCC¥6,000201811-202310

SAUDI ARABIA SPEC

main48812-42060iAXAA54,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;MXAA54..JPP..(GEN,RUS,SA);AXAH54..LHD..(G,M,P,V)..EUR¥6,000201811-202410

48818BUSH, STABILIZER, REAR

main48818-42030iAXAA52..X..GEN;AXAA52,MXAA52..RHD..(6F,8FC)..(ARL,GEN)¥1,050201811-202310

SAUDI ARABIA SPEC

main48818-42030iMXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥1,050201811-202210

main48818-42040iAXAA54,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;MXAA54..JPP..(GEN,RUS,SA);AXAH54..LHD..(G,M,P,V)..EUR¥1,030201811-202410

48830DLINK ASSY, REAR STABILIZER, RH

main48830-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥3,340201811-202410

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-42021iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥270201811-202410

48835BRACKET, REAR STABILIZER, LOWER

main48835-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥520201811-202410

48840ALINK ASSY, REAR STABILIZER, LH

main48830-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥3,340201811-202410

9010514197

main90105-14197¥190

9010910181

main90109-10181¥160

9011906A21

main90119-06A21¥80

9011912436

main90119-12436¥240

9011912445

main90119-12445¥160

9011914164

main90119-14164¥360

9017812009

main90178-12009¥120

9017814017

main90178-14017¥120

9017816007

main90178-16007¥160

9017914068

main90179-14068¥120

9020116039

main90201-16039¥120

9046710216

main90467-10216¥100

9413061200

main94130-61200¥100

9415121241

main94151-21241¥100

49 parts on this diagram · 2 diagrams in section
