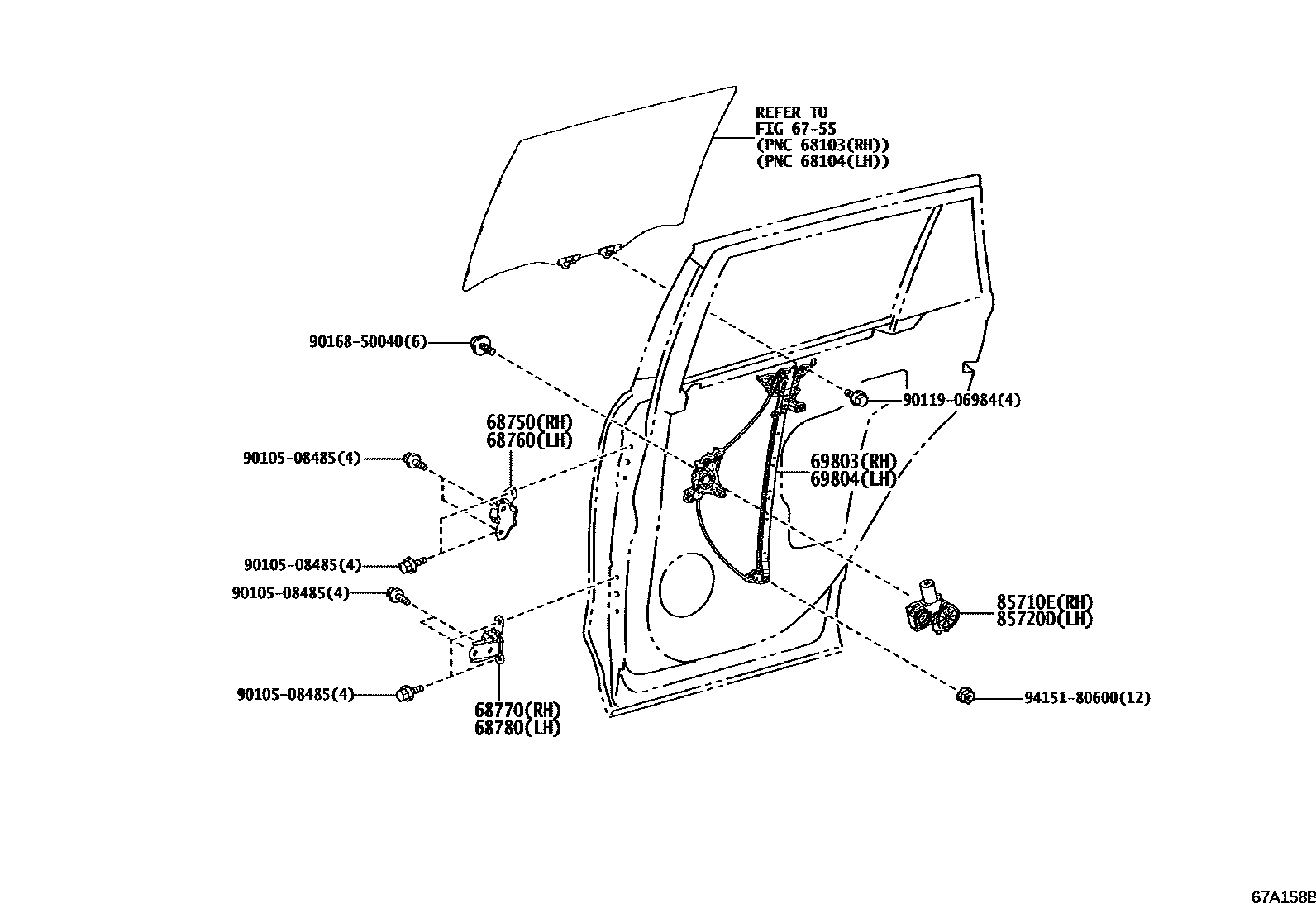

Toyota RAV4 (JPP) — REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iAXAA54..EUR;AXAH52..RHD..G..GEN¥1,850201811-202410

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,850201811-202410

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,030201811-202410

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,030201811-202410

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,100201811-202002

sub69803-42061¥5,100

main69803-42061iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;AXAH54,AXAL5#,MXAA5#..JPP¥5,100202003-202108

sub69803-42062¥4,560

main69803-42062iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥4,560202109-202410

main69830-0R080iAXAA54,MXAA5#..RUS201910-202203

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,100201811-202002

sub69804-42061¥5,100

main69804-42061iAXAA54..EUR;AXAH52..RHD..G..GEN¥5,100202003-202108

sub69804-42062¥4,560

main69804-42062iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥4,560202109-202410

main69840-0R080iAXAA54,MXAA5#..RUS201910-202203

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12540iAXAA54,MXAA5#..RUS¥20,900202112-202410

main85710-42150iAXAA54,MXAA5#..RUS¥23,000201811-202112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12530iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥20,900202112-202410

main85720-42140iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥23,000201811-202112

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

13 parts on this diagram · 2 diagrams in section
