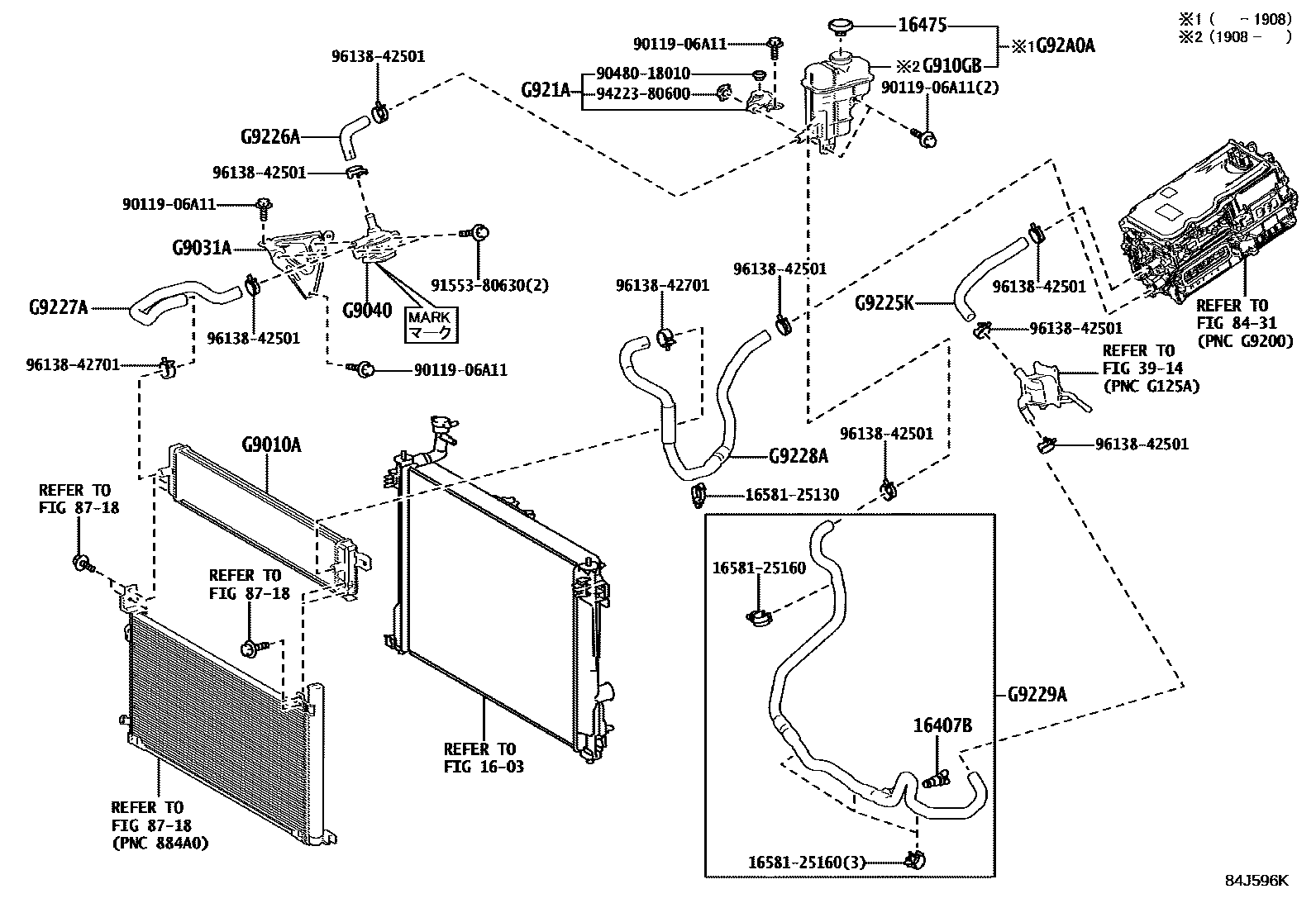

Toyota RAV4 (JPP) — INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXAH54..RUS¥380201811-202112

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXAH54..RUS¥1,200201811-202410

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAH54..RUS201811-202112

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAXAH54..RUS201811-202112

mainG914178010iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202112-202410

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042010iAXAH54..RUS201811-202007

mainG904042010iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202112

MARK=G

mainG904048050iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202112-202210

MARK=T

mainG904048050iAXAH5#,AXAL5#202210-202410

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAXAH54..RUS201908-202410

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAXAH54..RUS201811-202410

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542010iAXAH54..RUS201811-202410

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAXAH54..RUS201811-202112

mainG922642020iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202112-202410

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742010iAXAH54..RUS201811-202112

mainG922778010iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202112-202410

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842030iAXAH54..RUS201811-202112

mainG922842050iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202112-202410

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942020iAXAH54..RUS201811-202007

mainG922942020iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202112

REFER TO PNC 86466D

mainG922942040iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202112-202210

REFER TO PNC 86466D

mainG922942040iAXAH5#,AXAL5#202210-202410

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H042020iAXAH5#201811-201908

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9422380600

main94223-80600¥70

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

25 parts on this diagram · 2 diagrams in section
