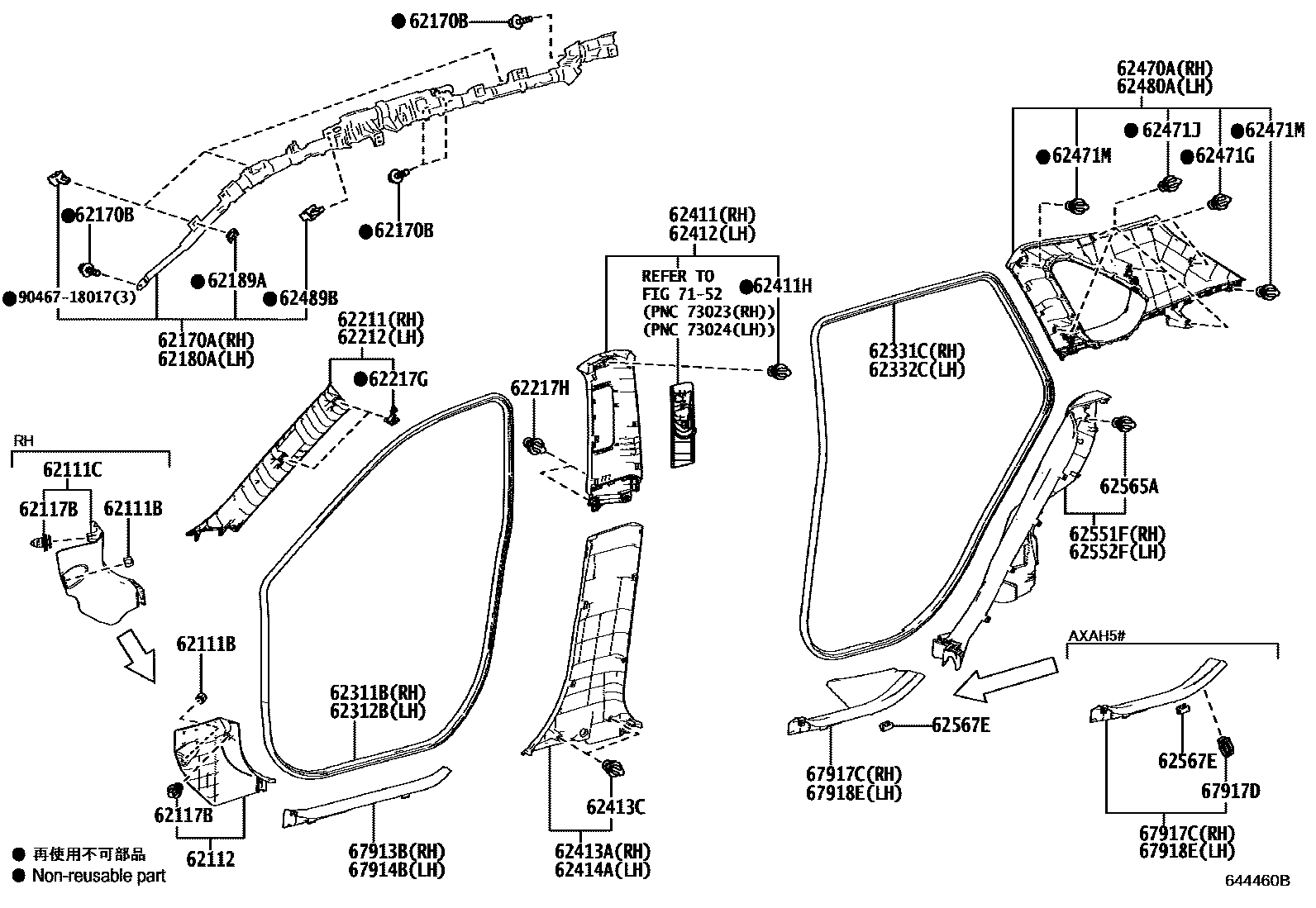

Toyota RAV4 (JPP) — INSIDE TRIM BOARD

0001 1 0003 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06155iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥70201811-202410

62111CBOARD, COWL SIDE TRIM, RH

main62111-0R090-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub62111-42070

main62111-42070-C0iAXAH54..LHD..G;AXAH54..M..GCC;AXAH52,AXAL5#..LHD..G..EUR;AXAA5#,AXAH52,MXAA5#..LHD..(G,M)..(GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main62111-42070-C0iAXAH54..LHD..G;AXAH54..M..GCC;AXAH52,AXAL5#..LHD..G..EUR;AXAA5#,AXAH52,MXAA5#..LHD..(G,M)..(GCC,GEN)202005-202410

BLACK,TRIM2#

main62111-42070-C0iAXAH52..P..GEN;MXAA54..JPP..RUS;AXAH54..LHD..(M,P,V)..(EUR,GEN);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR201811-202310

BLACK,TRIM2#,4#

main62111-42080-C0iMXAA52..G..EUR201811-202410

BLACK,TRIM1#,2#,4#

main62111-42080-C0iMXAA52..X..SA;MXAA54..RHD..(V,X);AXAA54..RHD..X..GEN;MXAA52..RHD..CVT..X..(ARL,GEN);AXAA54,AXAH5#..(V,X)..(ARL,SA)201811-202310

BLACK,TRIM2#,4#

main62111-42080-C0iAXAH54..RHD..G;AXAH52..(G,M)..ARL;AXAA54,AXAH54..M..ARL;MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#,MXAA52..RHD..G..EUR;AXAA54,MXAA54..RHD..(ATM,CVT)..(G,M)..(GE202005-202410

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0R090-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub62112-42070

main62112-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR202005-202410

BLACK,TRIM2#

main62112-42070-C0iMXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)201811-202310

BLACK,TRIM2#,4#

main62112-42070-C0iMXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)201811-202410

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iAXAA54,MXAA5#..RUS¥90201811-202410

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0R120iAXAA54,MXAA5#..RUS201910-202203

main62170-42070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥34,200201811-202207

sub62170-42071¥31,000

main62170-42071iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥31,000202208-202410

62170BBOLT, W/WASHER

main90119-W0037iAXAA54,MXAA5#..RUS¥60202112-202203

(L)

main91673-80616iAXAA54,MXAA5#..RUS¥60202112-202203

(J)

main91673-80616iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥60201811-202410

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0R120iAXAA54,MXAA5#..RUS201910-202203

main62180-42070iAXAA54..EUR;AXAH52..RHD..G..GEN¥34,200201811-202207

sub62180-42071¥31,000

main62180-42071iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥31,000202208-202410

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥80201811-202410

62211GARNISH, FRONT PILLAR, RH

main62210-42100-B0iMXAA54..JPP..(V,X);AXAA54,AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)201811-202310

LT.GRAY,TRIM2#,4#

main62210-42100-B0iMXAA54..JPP..(V,X);AXAA54,AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)201811-202410

LT.GRAY,TRIM1#,2#,4#

main62210-42100-B0iMXAA54..JPP..(V,X);AXAA54,AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)202210-202310

OCEANIA OTHERS SPEC,LT.GRAY,TRIM2#,4#

main62210-42100-B0iMXAA54..JPP..(V,X);AXAA54,AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)202210-202310

OCEANIA OTHERS SPEC,LT.GRAY,TRIM1#,2#,4#

main62210-42100-B0iMXAA54..JPP..(V,X);AXAA54,AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)202210-202310

PAPUA NEW GUINEA, SAMOA SPEC,LT.GRAY,TRIM1#,2#,4#

main62210-42100-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL202005-202410

LT.GRAY,TRIM2#

main62210-42110-B1iAXAH5#,AXAL5#..(M,V)..EUR202210-202310

AUDIO-JBL 10.5INCH DAB, EUROPE,LT.GRAY,TRIM1#,2#,4#

main62210-42110-B1iAXAH5#,MXAA52..G..ARL202112-202310

LT.GRAY,TRIM1#,2#,4#

main62210-42110-B1iAXAH5#,MXAA52..G..ARL202112-202310

LT.GRAY,TRIM2#,4#

main62210-42110-B1iAXAH5#,MXAA52..G..ARL202112-202210

AUDIO-JBL 8INCH DAB, EUROPE,LT.GRAY,TRIM2#

main62210-42110-B1iAXAH5#,MXAA52..G..ARL202210-202310

AUDIO-JBL 10.5INCH DAB, EUROPE,LT.GRAY,TRIM2#

main62210-42120-C1iAXAH54..RHD..P..EUR202112-202410

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-42090-B0iMXAA54..JPP..(V,X);AXAA54,AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)202210-202310

PAPUA NEW GUINEA, SAMOA SPEC,LT.GRAY,TRIM1#,2#,4#

main62220-42090-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL201811-202310

LT.GRAY,TRIM2#,4#

main62220-42090-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL202005-202410

LT.GRAY,TRIM2#

main62220-42090-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL201811-202410

LT.GRAY,TRIM1#,2#,4#

main62220-42090-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL202210-202310

OCEANIA OTHERS SPEC,LT.GRAY,TRIM2#,4#

main62220-42090-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL202210-202310

OCEANIA OTHERS SPEC,LT.GRAY,TRIM1#,2#,4#

main62220-42100-B1iAXAA54,AXAH54..V..ARL202210-202310

AUDIO-JBL 10.5INCH DAB, EUROPE,LT.GRAY,TRIM1#,2#,4#

main62220-42100-B1iAXAH5#,MXAA52..G..ARL202112-202310

LT.GRAY,TRIM1#,2#,4#

main62220-42100-B1iAXAH5#,MXAA52..G..ARL202112-202310

LT.GRAY,TRIM2#,4#

main62220-42100-B1iAXAH5#,MXAA52..G..ARL202112-202210

AUDIO-JBL 8INCH DAB, EUROPE,LT.GRAY,TRIM2#

main62220-42100-B1iAXAH5#,MXAA52..G..ARL202210-202310

AUDIO-JBL 10.5INCH DAB, EUROPE,LT.GRAY,TRIM2#

main62220-42110-C1iAXAH52,AXAL5#..P;AXAH54..LHD..P..EUR;AXAH54..P..(ARL,GEN)202112-202410

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥140201811-202311

main62217-42060iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥170202312-202410

62217HCLIP, CENTER PILLER GARNISH

main90467-10216iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥100201811-202410

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-42110iAXAA54..EUR;AXAH52..RHD..G..GEN¥5,700201811-202410

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-42110iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥5,700201811-202410

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-42100iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥5,400201811-202410

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-42090iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥5,400201811-202410

62411GARNISH, CENTER PILLAR, RH

main62410-0R100-B0iAXAA54,MXAA5#..RUS201910-202203

LT.GRAY,TRIM2#

sub62410-42100¥4,160

main62410-42100-B1iMXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202005-202410

LT.GRAY,TRIM2#

main62410-42100-B1iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

LT.GRAY,TRIM1#,2#,4#

main62410-42100-B1iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202310

LT.GRAY,TRIM2#,4#

main62410-42110-C2iAXAH52,AXAL5#..P;AXAH54..LHD..P..EUR;AXAH54..P..(ARL,GEN)202112-202410

BLACK,TRIM2#

62411HCLIP

main90467-10167iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥90201811-202410

62412GARNISH, CENTER PILLAR, LH

main62420-0R100-B0iAXAA54,MXAA5#..RUS201910-202203

LT.GRAY,TRIM2#

main62420-42100-B1iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN202005-202410

LT.GRAY,TRIM2#

main62420-42100-B1iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN201811-202410

LT.GRAY,TRIM1#,2#,4#

main62420-42100-B1iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN201811-202310

LT.GRAY,TRIM2#,4#

main62420-42110-C2iAXAH52,AXAL5#..P;AXAH54..LHD..P..EUR;AXAH54..P..(ARL,GEN)202112-202410

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0R090-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub62413-42090¥5,700

main62413-42090-C0iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,MXAA54..(V,X)..(ARL,GCC,GEN,SA)202005-202410

BLACK,TRIM2#

main62413-42090-C0iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

BLACK,TRIM1#,2#,4#

main62413-42090-C0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAXAA54,MXAA5#..RUS¥90201811-202410

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0R090-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub62414-42090¥5,700

main62414-42090-C0iMXAA52..(M,X)..EUR;AXAH5#..P..(ARL,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR201811-202410

BLACK,TRIM1#,2#,4#

main62414-42090-C0iMXAA52..(M,X)..EUR;AXAH5#..P..(ARL,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR201811-202310

BLACK,TRIM2#,4#

main62414-42090-C0iMXAA52..(M,X)..EUR;AXAH5#..P..(ARL,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR202005-202410

BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0R110-B0iAXAA54,MXAA5#..RUS201910-202201

LT.GRAY,TRIM2#

sub62470-42170¥8,000

main62470-0R111-B0iAXAA54,MXAA5#..RUS202201-202203

LT.GRAY,TRIM2#

main62470-42170-B0iAXAH54..V..ARL;MXAA54..JPP..(V,X);AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA;AXAA5#,AXAH5#,MXAA52..(V,X)..(GCC,GEN)201811-202310

LT.GRAY,TRIM2#,4#

main62470-42170-B0iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

LT.GRAY,TRIM1#,2#,4#

main62470-42170-B0iAXAL5#..(M,X)..EUR202005-202410

LT.GRAY,TRIM2#

main62470-42180-C0iAXAH5#,AXAL5#..P202112-202410

BLACK,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-10167iAXAA54,MXAA5#..RUS¥90201811-202410

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240iAXAA54..EUR;AXAH52..RHD..G..GEN¥80201811-202410

62471MCLIP

main90467-10161iAXAA54..EUR;AXAH52..RHD..G..GEN¥90201811-202410

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0R130-B0iAXAA54,MXAA5#..RUS201910-202201

LT.GRAY,TRIM2#

sub62480-42180¥8,000

main62480-0R131-B0iAXAA54,MXAA5#..RUS202201-202203

LT.GRAY,TRIM2#

main62480-42180-B0iMXAA52..X..SA201811-202310

LT.GRAY,TRIM2#,4#

main62480-42180-B0iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

LT.GRAY,TRIM1#,2#,4#

main62480-42180-B0iAXAL5#..(M,X)..EUR202005-202410

LT.GRAY,TRIM2#

main62480-42190-C0iAXAH5#,AXAL5#..P202112-202410

BLACK,TRIM2#

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-28010iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥360201811-202410

62551FGARNISH, REAR SEAT SIDE, RH

main62555-42050-C0iMXAA5#..(M,X)..EUR201811-202310

BLACK,TRIM1#,2#,4#

main62555-42050-C0iMXAA5#..(M,X)..EUR201811-202310

BLACK,TRIM2#,4#

main62555-42050-C0iAXAA54..M..ARL;MXAA5#..G..EUR;MXAA54..M..GCC;MXAA54..CVT..(G,M)..GEN;MXAA52..(G,M)..(ARL,GEN,SA);AXAA54..(G,M)..(GCC,GEN,SA);AXAA52,MXAA54..LHD..(6F,8FC)..(G,M)..(G202008-202310

BLACK,TRIM2#

main62555-42070-C0iAXAL5#..X..ARL201811-202310

BLACK,TRIM2#,4#

main62555-42070-C0iAXAH54..RUS201811-202410

BLACK,TRIM1#,2#,4#

main62555-42070-C0iAXAL5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62556-42050-C0iMXAA5#..6F..G..(GEN,SA)201811-202310

BLACK,TRIM1#,2#,4#

main62556-42050-C0iMXAA52..G..SA;MXAA54..JPP..(V,X);AXAA54..(G,V)..(ARL,SA);AXAA5#,MXAA52..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main62556-42050-C0iMXAA52..G..SA;MXAA54..JPP..(V,X);AXAA54..(G,V)..(ARL,SA);AXAA5#,MXAA52..(V,X)..(GCC,GEN)202008-202310

BLACK,TRIM2#

main62556-42070-C0iAXAH54..P..ARL;AXAH52..P..(ARL,GEN);AXAH54..(M,P,V,X)..(EUR,GEN);AXAH52,AXAL5#..(M,P,V,X)..EUR201811-202410

BLACK,TRIM1#,2#,4#

main62556-42070-C0iAXAH5#..RHD..X;AXAH54..X..GCC;AXAL5#..X..ARL201811-202310

BLACK,TRIM2#,4#

main62556-42070-C0iAXAL5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-09240iAXAA54,MXAA5#..RUS¥80201811-202410

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iAXAA54,MXAA5#..RUS¥220201811-202410

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0R050-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub67913-42130¥1,900

main67913-42130-C0iAXAH52..M;AXAL5#..G..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..LHD..G..GEN;MXAA5#..LHD..6F..EUR;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..M201811-202310

BLACK,TRIM2#,4#

main67913-42130-C0iAXAH52..M;AXAL5#..G..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..LHD..G..GEN;MXAA5#..LHD..6F..EUR;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..M201811-202410

BLACK,TRIM1#,2#,4#

main67913-42130-C0iAXAL5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0R050-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub67914-42130¥1,900

main67914-42130-C0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main67914-42130-C0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202410

BLACK,TRIM1#,2#,4#

main67914-42130-C0iAXAL5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0R050-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub67917-42100¥2,710

main67917-42100-C0iMXAA54..JPP..(V,X);AXAA5#,MXAA52..(V,X)..(ARL,GCC,GEN)202008-202310

BLACK,TRIM2#

main67917-42100-C0iMXAA54..JPP..(V,X);AXAA5#,MXAA52..(V,X)..(ARL,GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main67917-42100-C0iMXAA54..JPP..RUS201811-202310

BLACK,TRIM1#,2#,4#

main67917-42110-C0iAXAH54..RHD..G..EUR202005-202410

BLACK,TRIM2#

main67917-42110-C0iAXAH54..RUS201811-202410

BLACK,TRIM1#,2#,4#

main67917-42110-C0iAXAH5#..RHD..X;AXAH54..X..GCC;AXAL5#..X..ARL201811-202310

BLACK,TRIM2#,4#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-05171iAXAH54..RUS¥60201811-202410

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0R050-C0iAXAA54,MXAA5#..RUS201910-202203

BLACK,TRIM2#

sub67918-42100¥2,710

main67918-42100-C0iMXAA54..RHD..(M,X);AXAA54..RHD..X..GEN;MXAA5#..LHD..6F..EUR;MXAA5#..LHD..6F..M..GEN;MXAA52..JPP..CVT..(G,M);MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M201811-202310

BLACK,TRIM1#,2#,4#

main67918-42100-C0iAXAA54..V..GEN;MXAA54..RHD..V;AXAA54..LHD..X..GEN;MXAA54..JPP..LHD..(V,X);AXAA54,MXAA52..(V,X)..(ARL,GCC);AXAA52,MXAA52..LHD..(6F,8FC)..X..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main67918-42100-C0iMXAA5#..(M,X)..EUR202008-202310

BLACK,TRIM2#

main67918-42110-C0iAXAH52..P..GEN;AXAL5#..M,P,V,X;AXAH52..(P,X)..EUR;AXAH52..LHD..M..EUR;AXAH52..(M,P,X)..ARL;AXAH54..LHD..(M,P,V)..EUR;AXAH54..(M,P,X)..(ARL,GEN)201811-202310

BLACK,TRIM2#,4#

main67918-42110-C0iAXAH52..P..GEN;AXAL5#..M,P,V,X;AXAH52..(P,X)..EUR;AXAH52..LHD..M..EUR;AXAH52..(M,P,X)..ARL;AXAH54..LHD..(M,P,V)..EUR;AXAH54..(M,P,X)..(ARL,GEN)201811-202410

BLACK,TRIM1#,2#,4#

main67918-42110-C0iAXAH52..P..GEN;AXAL5#..M,P,V,X;AXAH52..(P,X)..EUR;AXAH52..LHD..M..EUR;AXAH52..(M,P,X)..ARL;AXAH54..LHD..(M,P,V)..EUR;AXAH54..(M,P,X)..(ARL,GEN)202005-202410

BLACK,TRIM2#

7152

9046718017

main90467-18017¥180

39 parts on this diagram · 2 diagrams in section
