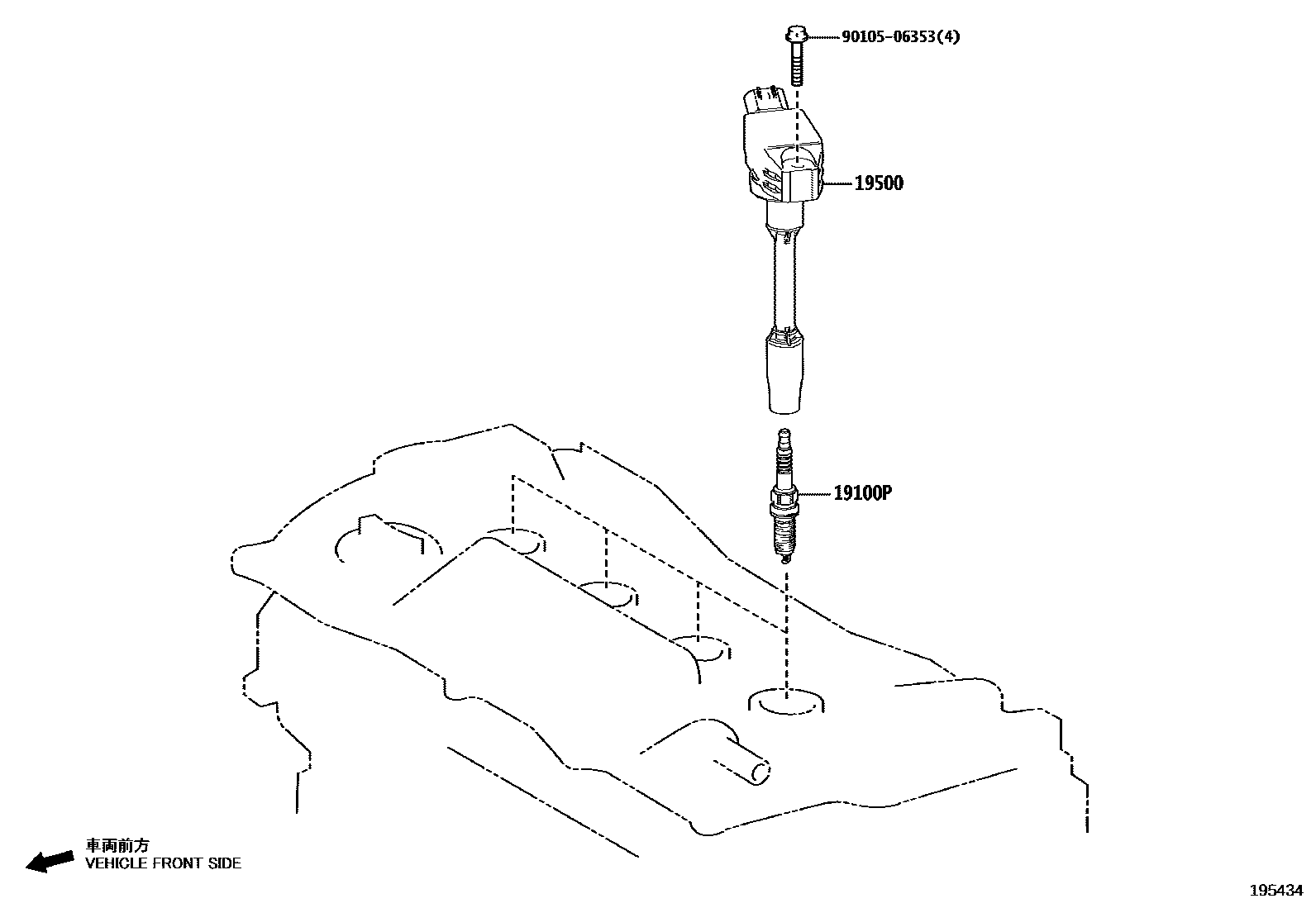

Toyota RAV4 (JPP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01289iA25AFKS..AXAA54..RUS¥2,300201811-202410

FC16HR-Q8

main90919-01297iM20AFKS..MXAA5#..RUS¥2,300201811-202310

FC20HR-Q8

19500COIL ASSY, IGNITION

main90919-02276iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN¥7,500201811-202310

main90919-02277iA25AFXS..AXAL5#;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥7,500201811-202410

9010506353

main90105-06353¥60

3 parts on this diagram · 2 diagrams in section
