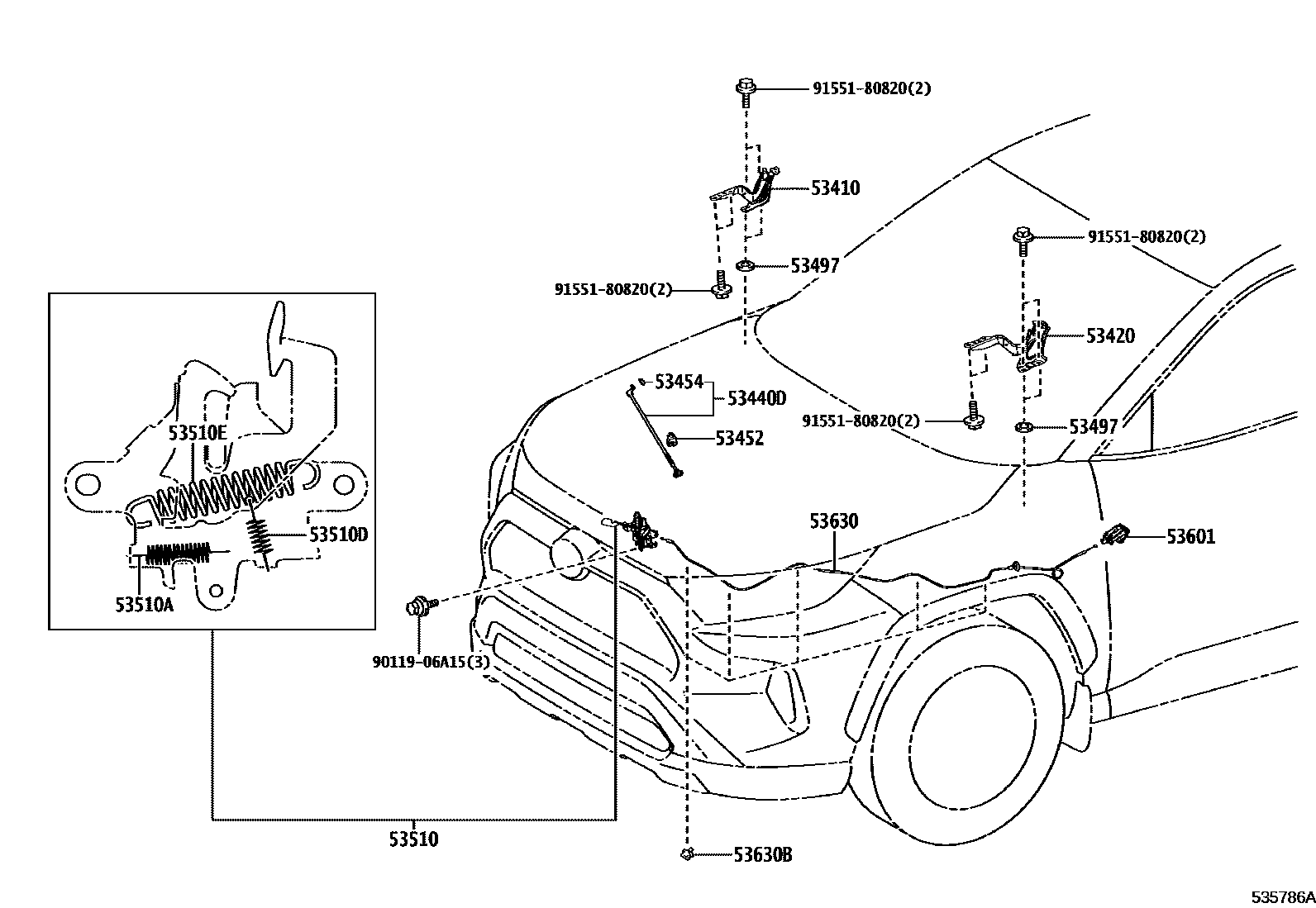

Toyota RAV4 (JPP) — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
main53410-42140iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥1,700201811-202410
53420HINGE ASSY, HOOD, LH
main53420-42140iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥1,700201811-202410
53440DSUPPORT ASSY, HOOD
main53440-42070iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥1,200201811-202303
main53440-42071iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥1,090202304-202410
53452HOLDER, HOOD STAY
main53452-12130iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥340201811-202410
53454CLIP, HOOD SUPPORT ROD
main90480-15025iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥220201811-202210
53497PAD, HOOD HINGE, NO.1
T=1.0
T=2.0
main53497-20070iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥140201811-202410
T=2.0
main53497-42010iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥100201811-202410
T=0.5
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))
OTHER LATIN-NCAP COUNTRY&ANTI-THEFT SYSTEM-IMMOBILIZER & HORN
BRAZIL SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & HORN
NEW ZEALAND SPEC&DATA COMMUNICATION MODULE-WITHOUT
PAPUA NEW GUINEA, SAMOA SPEC&DATA COMMUNICATION MODULE-WITHOUT
OCEANIA OTHERS SPEC&DATA COMMUNICATION MODULE-WITHOUT
LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))
main53510-42150iMXAA52..X..ARL;AXAH5#,MXAA54..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAA54..(G,V)..(ARL,SA)¥2,930202210-202310
NEW ZEALAND SPEC&LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN&DATA COMMUNICATION MODULE-WITHOUT
main53510-42150iMXAA52..X..ARL;AXAH5#,MXAA54..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAA54..(G,V)..(ARL,SA)¥2,930202210-202310
WITH(REMOTE AIR CONDITIONING SYSTEM)
main53510-42150iMXAA52..X..ARL;AXAH5#,MXAA54..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAA54..(G,V)..(ARL,SA)¥2,930202210-202310
WITH(REMOTE AIR CONDITIONING SYSTEM)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.4,CW=12
main90506-16077iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥120202102-202410
WD=1.6,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-30100-C0iAXAH54..G;MXAA52..RHD..(G,M);AXAH54..M..(ARL,GCC);MXAA52..LHD..(G,M)..GEN;AXAH52,AXAL5#,MXAA54..G..EUR;AXAA5#,AXAH52,MXAA54..(G,M)..(ARL,GCC,GEN,SA)201811-202309
BLACK,TRIM1#,2#,4#
main53601-30100-C0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202309
BLACK,TRIM2#,4#
BLACK,TRIM2#
main53601-62010-C0iAXAH52..P..GEN;AXAL5#..M,P,V,X;MXAA54..JPP..RUS;AXAH52..(P,X)..EUR;AXAH52..LHD..M..EUR;AXAH54..LHD..(M,P,V)..EUR;AXAH54..(M,P,X)..(ARL,GEN);AXAA54,AXAH52,MXAA52..(M202310-202410
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
53630CABLE ASSY, HOOD LOCK CONTROL
sub53630-42140
main53630-42130iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD¥990201811-202410
main53630-42140iAXAH54..X..GCC;AXAH54..LHD..(G,M,P,V);AXAA5#,AXAH52,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)201811-202410
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9011906A15
9155180820
15 parts on this diagram · 2 diagrams in section
