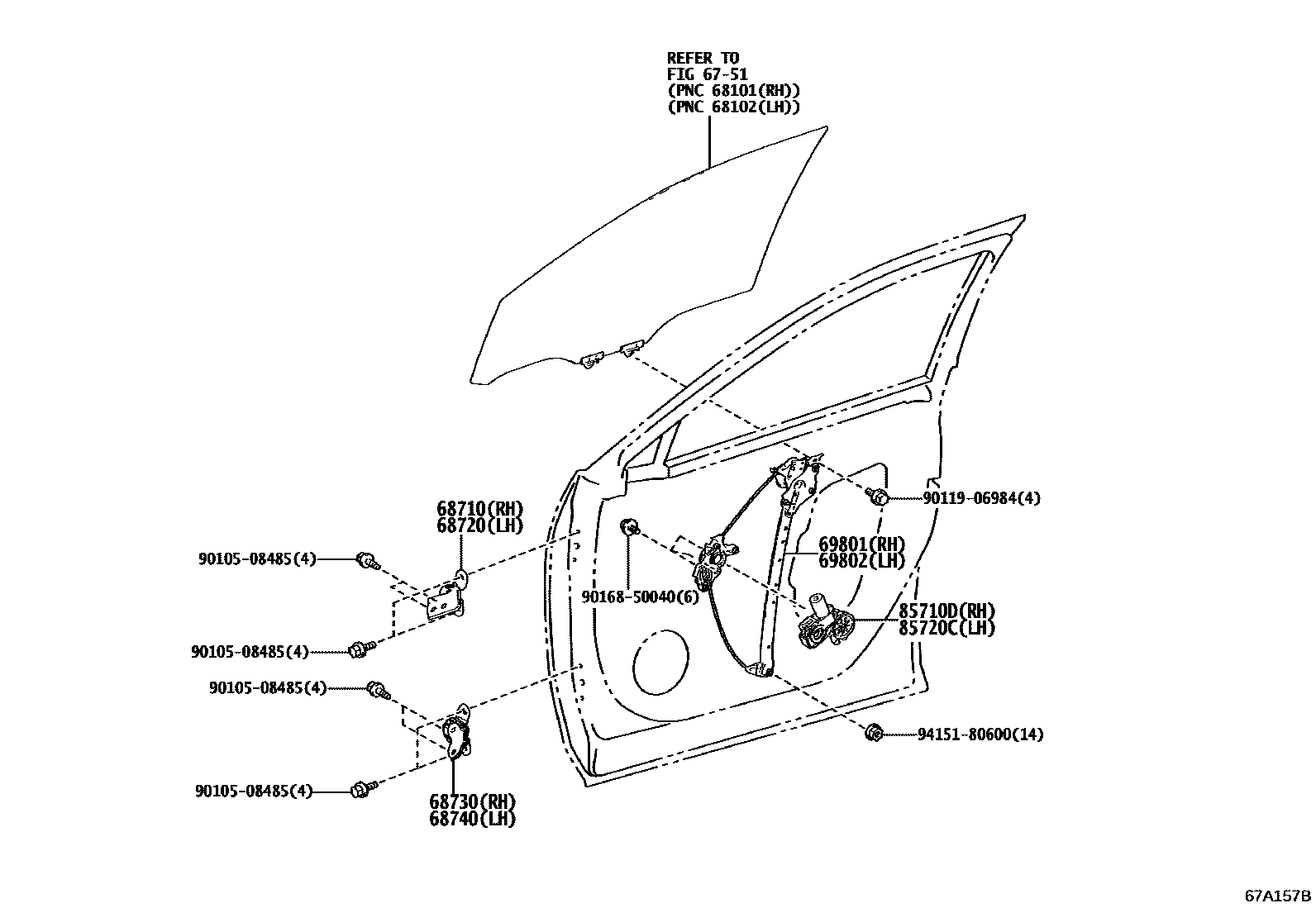

Toyota RAV4 (JPP) — FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAXAA54..EUR;AXAH52..RHD..G..GEN¥2,050201811-202410

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,050201811-202410

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,240201811-202410

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,240201811-202410

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-42070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,100201811-202002

sub69801-42071¥5,100

main69801-42071iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;AXAH54,AXAL5#,MXAA5#..JPP¥5,100202003-202104

sub69801-42072¥4,560

main69801-42072iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥4,560202105-202410

main69810-0R080iAXAA54,MXAA5#..RUS201910-202203

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-42070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,100201811-202002

sub69802-42071¥5,100

main69802-42071iAXAA54..EUR;AXAH52..RHD..G..GEN¥5,100202003-202104

sub69802-42072¥4,560

main69802-42072iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥4,560202105-202410

main69820-0R100iAXAA54,MXAA5#..RUS201910-202203

sub69802-42072¥4,560

sub85720-42130¥23,000

sub90168-50040¥70

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530iAXAA54,MXAA5#..RUS¥20,900202112-202410

main85710-42140iAXAA54,MXAA5#..RUS¥23,000201811-202112

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥20,900202112-202410

main85720-42130iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥23,000201811-202112

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

13 parts on this diagram · 2 diagrams in section
