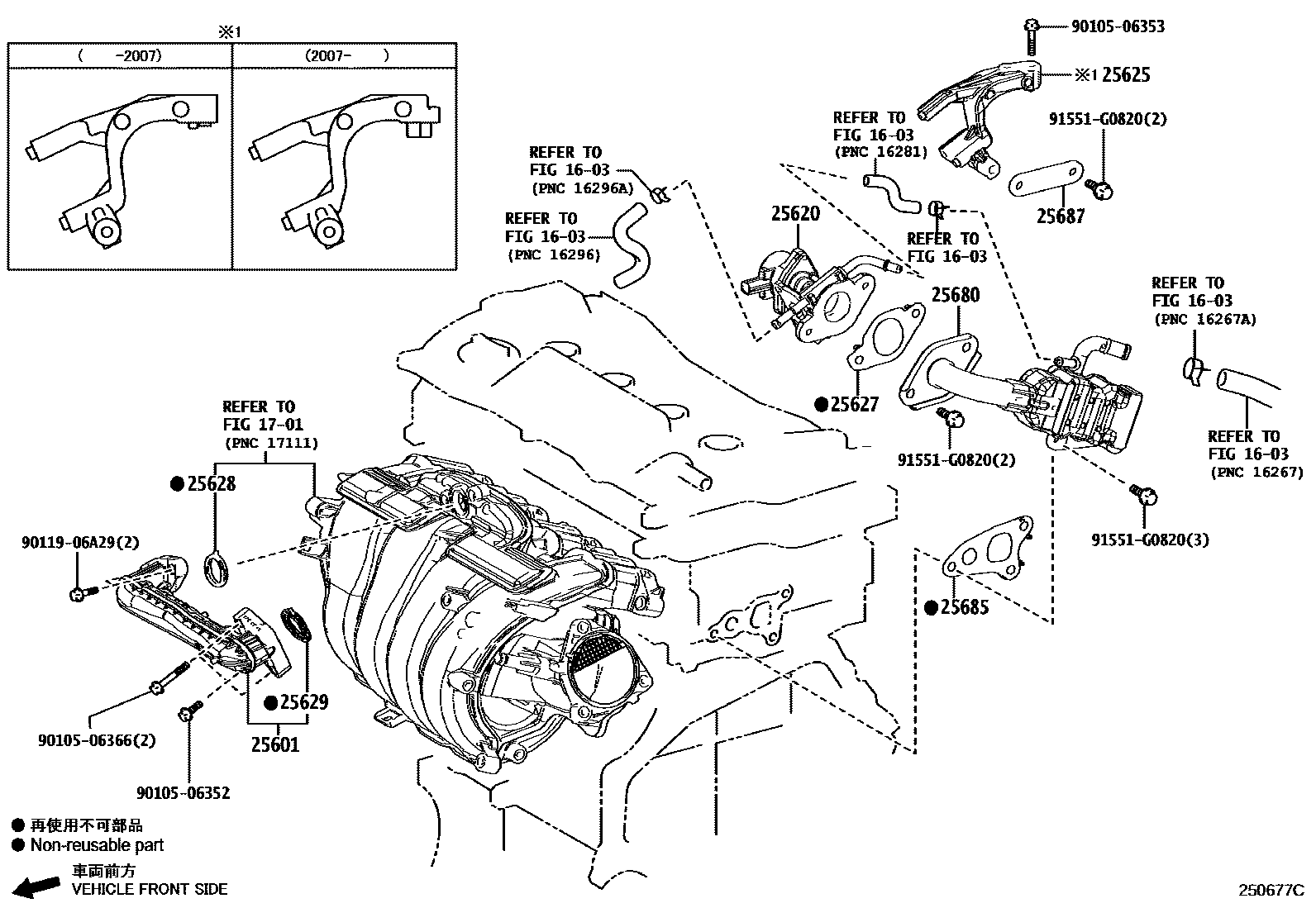

Toyota RAV4 (JPP) — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0003 1 0004 1 0005 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)¥3,140201811-202310

main25601-25011iA25AFXS..AXAH54..RUS¥3,450201811-202203

main25601-25030iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;¥3,140202112-202410

main25601-F2020iM20AFKS..MXAA5#..RUS201910-202203

25620VALVE ASSY, EGR

main25620-24050iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥18,400202210-202310

QATAR SPEC

main25620-24050iA25#..AXAA5#,AXAH54..GCC¥18,400202210-202310

JORDAN SPEC

main25620-24050iA25#..AXAA5#,AXAH54..GCC¥18,400202210-202310

SAUDI ARABIA SPEC

main25620-24050iA25#..AXAA5#,AXAH54..GCC¥18,400202210-202310

LEBANON SPEC

main25620-24050iA25#..AXAA5#,AXAH54..GCC¥18,400202210-202310

SUDAN SPEC

main25620-24050iA25#..AXAA5#,AXAH54..GCC¥18,400202210-202310

LIBYA SPEC

main25620-24050iA25#..AXAA5#,AXAH54..GCC¥18,400202210-202310

U.A.E. SPEC

main25620-24050iM20AFKS..MXAA5#..EUR¥18,400202008-202410

main25620-24050iM20AFKS..MXAA52..RHD..6F..EUR¥18,400201811-202007

MARK=25620-24050

main25620-24050iM20AFKS..MXAA52..RHD..6F..EUR¥18,400201811-202007

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA),MARK=25620-24050

main25620-24050iM20AFKS..MXAA52..RHD..6F..EUR¥18,400201811-202007

IRAN SPEC,MARK=25620-24050

main25620-24060iM20AFKS..MXAA52..RHD..CVT..EUR;M20AFKS..MXAA5#..6F..G..(GEN,SA)¥18,400201811-202007

MARK=25620-24060

main25620-24060iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥18,400202210-202310

MOROCCO SPEC

main25620-24060iA25AFXS..AXAH5#..LHD..EUR¥18,400202210-202310

UKRAINE,MOLDOVA SPEC

main25620-24060iM20AFKS..MXAA52..X..SA¥18,400202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main25620-24060iA25#..AXAA5#,AXAH54..GCC¥18,400202310

UKRAINE,MOLD SPEC

main25620-24060iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥18,400202008-202312

main25620-24060iM20AFKS..MXAA52..G..EUR¥18,400202008-202210

SINGAPOLE SPEC

main25620-25040iA25AFXS..AXAH54..RUS¥18,400201811-202203

main25620-F2020iM20AFKS..MXAA5#..RUS201910-202203

25625BRACKET, EGR VALVE

main25625-25010iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN¥3,570201811-202007

main25625-25030iA25AFKS..AXAA54..RUS¥2,970202007-202203

25627GASKET, EGR VALVE

main25627-24010iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥270201811-202410

main25627-25010iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS¥270201811-202203

main25627-F2040iM20AFKS..MXAA5#..RUS201910-202203

25628GASKET, EGR INLET

main25628-25010iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥340201811-202410

main25628-F2040iM20AFKS..MXAA5#..RUS201910-202203

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25AFKS..AXAA54..RUS¥340201811-202410

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MXAA5#..LHD..EUR¥16,700201811-202007

IRAN SPEC,REFER TO PNC 25620

main25680-24010iM20AFKS..MXAA52..LHD..CVT..(G,X)..EUR¥16,700201811-202007

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA),REFER TO PNC 25620

main25680-24010iM20AFKS..MXAA52..RHD..CVT..EUR¥16,700201811-202007

REFER TO PNC 25620

main25680-24010iM20AFKS..MXAA5#..RUS¥16,700201910-202210

main25680-24020iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202008-202312

main25680-24020iM20AFKS..MXAA52..G..EUR202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main25680-24020iM20AFKS..MXAA5#..LHD..EUR202008-202210

SINGAPOLE SPEC

main25680-24020iM20AFKS..MXAA52..RHD..CVT..EUR;M20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202007

REFER TO PNC 25620

main25680-25010iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202203

main25680-25030iA25AFXS..AXAH54..G..GEN;A25AFXS..AXAH52..LHD..GEN;A25AFXS..AXAL5#..(G,M)..EUR;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAH5#..X..(ARL,GCC);A25AFXS..AXAH5#,AXAL5#..LHD¥18,400201811-202112

main25680-25060iA25AFXS..AXAH54..GCC;A25AFKS..AXAA54..V..GCC¥16,700202210-202310

U.A.E. SPEC

main25680-25060iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;¥16,700202112-202410

main25680-25060iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥16,700202210-202310

SAUDI ARABIA SPEC

main25680-25060iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥16,700202210-202310

LEBANON SPEC

main25680-25060iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥16,700202210-202310

SUDAN SPEC

main25680-25060iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥16,700202210-202310

LIBYA SPEC

main25680-25060iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥16,700202210-202310

JORDAN SPEC

main25680-25060iA25AFXS..AXAH52;A25#..AXAA54,AXAH54,AXAL5#..ARL,EUR,GEN,SA¥16,700202210-202310

QATAR SPEC

main25680-25070iA25AFKS..AXAA5#..GCC202210-202310

main25680-25080iA25AFXS..AXAH54..GCC202210-202310

MOROCCO SPEC

main25680-25080iA25AFXS..AXAH52..LHD..EUR;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202310

UKRAINE,MOLD SPEC

main25680-25080iA25AFXS..AXAH5#..LHD..(G,M)..GEN202210-202310

UKRAINE,MOLDOVA SPEC

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥270201811-202410

25687BRACKET, EGR COOLER, NO.1

main25687-25010iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202203

9010506352

main90105-06352¥60

9010506353

main90105-06353¥60

9010506366

main90105-06366¥80

9011906A29

main90119-06A29¥60

91551G0820

main91551-G0820¥80

16 parts on this diagram · 4 diagrams in section
