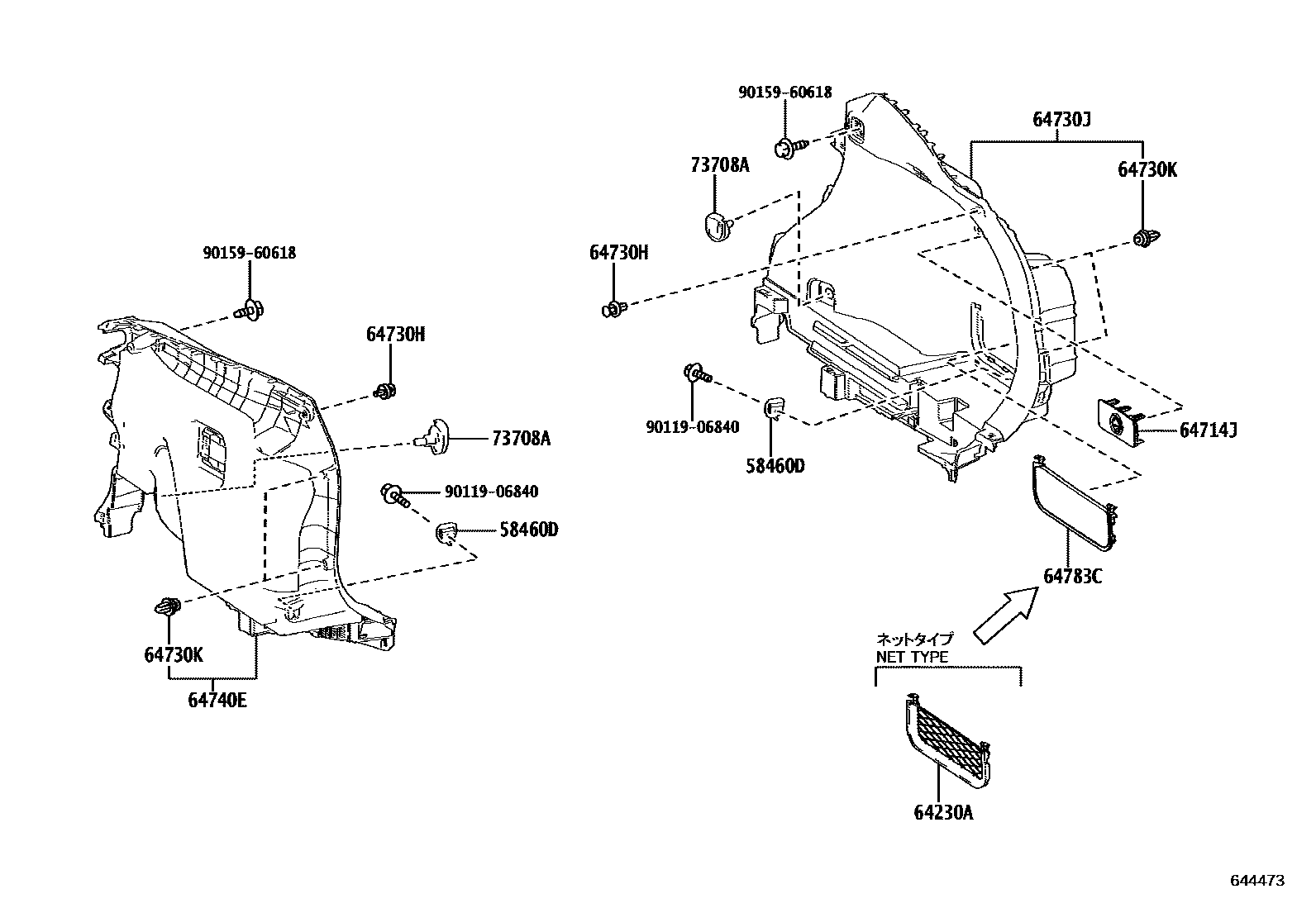

Toyota RAV4 (JPP) — DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1 0006 1

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iAXAA54..EUR;AXAH52..RHD..G..GEN¥620201811-202410

64230ANET ASSY, ROOM PARTITION

main64230-42030-C0iAXAA54..G..ARL;MXAA54..G..GCC;AXAA52,AXAL5#..RHD..G..(ARL,GEN)201811-202410

DARK GRAY,TRIM1#,2#,4#

main64230-42030-C0iAXAA54..G..ARL;MXAA54..G..GCC;AXAA52,AXAL5#..RHD..G..(ARL,GEN)201811-202310

DARK GRAY,TRIM2#,4#

main64230-42030-C0iAXAH54..P..ARL;AXAH52,AXAL5#..P,V;AXAH54..(P,V)..(EUR,GEN)202112-202410

DARK GRAY,TRIM2#

64714JCOVER, DECK SIDE TRIM, RH

main64714-42050-C0iAXAH5#..P..GEN202112-202310

BLACK,TRIM2#

main64714-42050-C0iMXAA52..X..SA201811-202310

BLACK,TRIM2#,4#

main64714-42050-C0iMXAA52..X..SA201811-202310

BLACK,TRIM1#,2#,4#

main64714-42050-C0iAXAH52..RHD..P..EUR202008-202310

AUDIO JACK-WITHOUT,BLACK,TRIM2#

main64714-42050-C0iAXAH52..RHD..P..EUR201811-202310

AUDIO JACK-WITHOUT,BLACK,TRIM1#,2#,4#

main64714-42050-C0iAXAH54..G..GEN;AXAH54..LHD..M..GEN;MXAA54..CVT..(G,M)..GEN;MXAA54..LHD..6F..M..GEN;AXAA54,MXAA52..(G,M)..GEN;AXAA52,AXAH52..LHD..(G,M)..GEN201811-202210

AUDIO JACK-WITHOUT,BLACK,TRIM2#,4#

main64714-42070-C0iAXAA54,MXAA5#..(V,X)..GEN202008-202310

AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM1#,2#,4#

main64714-42070-C0iAXAH54..RUS;MXAA52..6F..G..SA201811-202410

BLACK,TRIM1#,2#,4#

main64714-42070-C0iAXAH54..RUS;MXAA52..6F..G..SA201811-202210

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2,BLACK,TRIM1#,2#,4#

main64714-42070-C0iAXAH54..RUS;MXAA52..6F..G..SA201811-202210

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK,TRIM1#,2#,4#

main64714-42070-C0iAXAH5#..RHD..X..EUR;AXAA54,MXAA54..V..(ARL,GCC,SA)201811-202310

BLACK,TRIM2#,4#

main64714-42070-C0iAXAL5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

main64714-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202210

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2,BLACK,TRIM2#,4#

main64714-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202210

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK,TRIM2#,4#

main64714-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202310

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM1#,2#,4#

main64714-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202310

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM2#,4#

main64714-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202310

AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM2#,4#

main64714-42070-C0iMXAA52..X..ARL;AXAH5#..(V,X)..(ARL,SA);AXAA54,MXAA54..V..(ARL,GCC,SA)202210-202310

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM2#

main64714-42070-C0iMXAA52..X..ARL;AXAH5#..(V,X)..(ARL,SA);AXAA54,MXAA54..V..(ARL,GCC,SA)202210-202310

AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM2#

main64714-42070-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202310

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM2#,4#

main64714-42070-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202310

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM2#

main64714-42070-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202310

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM1#,2#,4#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main65487-53020iAXAA5#,AXAH52,MXAA5#¥200201811-201812

main90467-09242iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥120201901-202410

64730JPANEL ASSY, DECK TRIM SIDE, RH

main64730-0R230-C0iMXAA5#..X..RUS202010-202111

BLACK,TRIM2#

sub64730-0R231

main64730-0R230-C0iMXAA5#..X..RUS201910-202009

BLACK,TRIM1#,2#,4#

sub64730-0R231

main64730-0R231-C0iMXAA5#..X..RUS202112-202203

BLACK,TRIM2#

sub64730-42140¥20,700

main64730-0R240-C0iAXAA54,MXAA5#..M..RUS201910-202009

BLACK,TRIM1#,2#,4#

sub64730-0R241

main64730-0R240-C0iAXAA54,MXAA5#..G..RUS201910-202111

BLACK,TRIM2#

sub64730-0R241

main64730-0R241-C0iAXAA54,MXAA5#..(G,M)..RUS202112-202203

BLACK,TRIM2#

sub64730-42220¥24,200

main64730-42140-C0iAXAA54..LHD..X..GEN;MXAA54..JPP..LHD..X;AXAA54,MXAA52..X..(ARL,GCC);AXAA52,MXAA52..LHD..(6F,8FC)..X..(GCC,GEN)201811-202004

BLACK,TRIM2#,4#

sub64730-42141¥15,600

main64730-42140-C0iAXAA54..LHD..X..GEN;MXAA54..JPP..LHD..X;AXAA54,MXAA52..X..(ARL,GCC);AXAA52,MXAA52..LHD..(6F,8FC)..X..(GCC,GEN)201811-202004

BLACK,TRIM1#,2#,4#

sub64730-42141¥15,600

main64730-42141-C0iMXAA52..X..SA202005-202310

BLACK,TRIM2#,4#

main64730-42141-C0iMXAA52..X..EUR202005-202210

BLACK,TRIM2#

main64730-42150-C0iAXAH5#..LHD..X..EUR201811-202004

BLACK,TRIM2#,4#

sub64730-42151

main64730-42150-C0iAXAH5#..RHD..X;AXAH54..X..GCC201811-202004

BLACK,TRIM1#,2#,4#

sub64730-42151

main64730-42151-C0iAXAH5#,AXAL5#..RHD..X..EUR202005-202410

BLACK,TRIM2#

main64730-42151-C0iAXAH5#,AXAL5#..LHD..X..EUR202005-202310

BLACK,TRIM2#,4#

main64730-42220-C0iAXAA54,MXAA54..V201811-202004

BLACK,TRIM2#,4#

sub64730-42221¥18,300

main64730-42220-C0iAXAA54,MXAA54..V201811-202004

BLACK,TRIM1#,2#,4#

sub64730-42221¥18,300

main64730-42221-C0iMXAA5#..M..EUR202005-202310

BLACK,TRIM2#,4#

main64730-42221-C0iMXAA5#..M..EUR202005-202310

BLACK,TRIM2#

main64730-42221-C0iMXAA5#..M..EUR202005-202310

BLACK,TRIM1#,2#,4#

main64730-42230-C0iAXAH54..G..RUS201811-202004

BLACK,TRIM1#,2#,4#

sub64730-42231¥15,500

main64730-42230-C0iAXAH54..M..RUS201902-201909

BLACK,TRIM2#

sub64730-42231¥15,500

main64730-42231-C0iAXAL5#..M,P,V;AXAH52..(M,P)..ARL;AXAH52..LHD..M..EUR;AXAH52..P..(EUR,GEN);AXAH54..(M,P)..(ARL,GEN);AXAH54..LHD..(M,P,V)..EUR202112-202310

BLACK,TRIM2#,4#

main64730-42231-C0iAXAH54..RHD..G..EUR202005-202410

BLACK,TRIM1#,2#,4#

main64730-42231-C0iAXAH54..RHD..G..EUR202005-202410

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iAXAA54..EUR;AXAH52..RHD..G..GEN¥90201811-202410

64740EPANEL ASSY, DECK TRIM SIDE, LH

main64740-0R200-C0iMXAA5#..X..RUS202010-202111

BLACK,TRIM2#

sub64740-0R201

main64740-0R200-C0iMXAA5#..X..RUS201910-202009

BLACK,TRIM1#,2#,4#

sub64740-0R201

main64740-0R201-C0iMXAA5#..X..RUS202112-202203

BLACK,TRIM2#

sub64740-42140¥19,700

main64740-0R210-C0iAXAA54,MXAA5#..G..RUS201910-202009

BLACK,TRIM1#,2#,4#

sub64740-0R211

main64740-0R210-C0iAXAA54,MXAA5#..G..RUS201910-202111

BLACK,TRIM2#

sub64740-0R211

main64740-0R211-C0iAXAA54,MXAA5#..(G,M)..RUS202112-202203

BLACK,TRIM2#

sub64740-42160¥23,200

main64740-42140-C0iMXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA)201811-202004

BLACK,TRIM2#,4#

sub64740-42141¥14,800

main64740-42140-C0iMXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA)201811-202004

BLACK,TRIM1#,2#,4#

sub64740-42141¥14,800

main64740-42141-C0iMXAA52..X..EUR202005-202410

BLACK,TRIM2#

main64740-42141-C0iMXAA52..X..EUR202005-202310

BLACK,TRIM2#,4#

main64740-42160-C0iAXAH54..M..RUS201902-201909

BLACK,TRIM2#

sub64740-42161¥17,400

main64740-42160-C0iAXAH54..G..RUS;MXAA5#..6F..G..(GEN,SA)201811-202004

BLACK,TRIM1#,2#,4#

sub64740-42161¥17,400

main64740-42160-C0iAXAA54,MXAA54..V201811-202004

BLACK,TRIM2#,4#

sub64740-42161¥17,400

main64740-42161-C0iAXAA54..V..ARL202005-202310

BLACK,TRIM2#,4#

main64740-42161-C0iAXAA54..V..ARL202005-202410

BLACK,TRIM1#,2#,4#

main64740-42161-C0iAXAH5#,AXAL5#,MXAA5#..M..EUR202005-202410

BLACK,TRIM2#

main64740-42161-C0iAXAA54,AXAH54,MXAA54..V..(GCC,GEN,SA)202210-202310

OCEANIA OTHERS SPEC,BLACK,TRIM2#,4#

main64740-42161-C0iAXAA54,AXAH54,MXAA54..V..(GCC,GEN,SA)202210-202310

OCEANIA OTHERS SPEC,BLACK,TRIM1#,2#,4#

main64740-42161-C0iAXAA54,AXAH54,MXAA54..V..(GCC,GEN,SA)202210-202310

PAPUA NEW GUINEA, SAMOA SPEC,BLACK,TRIM1#,2#,4#

main64740-42171-C0iAXAH5#,AXAL5#..G..EUR202210-202310

AUDIO-JBL 10.5INCH DAB, EUROPE,BLACK,TRIM1#,2#,4#

main64740-42171-C0iAXAL5#..G..ARL202111-202310

BLACK,TRIM1#,2#,4#

main64740-42171-C0iAXAH5#,MXAA52..G..ARL202112-202310

BLACK,TRIM2#,4#

main64740-42171-C0iAXAH5#,MXAA52..G..ARL202210-202310

LEATHER PACKAGE&AUDIO-JBL 10.5INCH DAB, EUROPE,BLACK,TRIM2#

main64740-42171-C0iAXAH5#,MXAA52..G..ARL202210-202310

AUDIO-JBL 10.5INCH DAB, EUROPE,BLACK,TRIM2#

64783CPLATE, DECK TRIM POCKET COVER

main64783-42030-C0iMXAA52..LHD..6F..X..GEN;MXAA52..CVT..X..(ARL,GEN);AXAA52,MXAA52..X..(GCC,SA);AXAA54,AXAH5#,MXAA54..X..(ARL,GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main64783-42030-C0iMXAA52..LHD..6F..X..GEN;MXAA52..CVT..X..(ARL,GEN);AXAA52,MXAA52..X..(GCC,SA);AXAA54,AXAH5#,MXAA54..X..(ARL,GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main64783-42030-C0iMXAA52..(M,X)..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..M..EUR201811-202410

BLACK,TRIM2#

73708ABRACKET SET, TETHER ANCHOR

main73708-42060-C1iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

BLACK,TRIM1#,2#,4#

sub73708-42060¥2,910

main73708-42060-C1iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

sub73708-42060¥2,910

main73708-42060-C1iAXAL5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

sub73708-42060¥2,910

9011906840

main90119-06840¥60

9015960618

main90159-60618¥60

11 parts on this diagram · 5 diagrams in section
