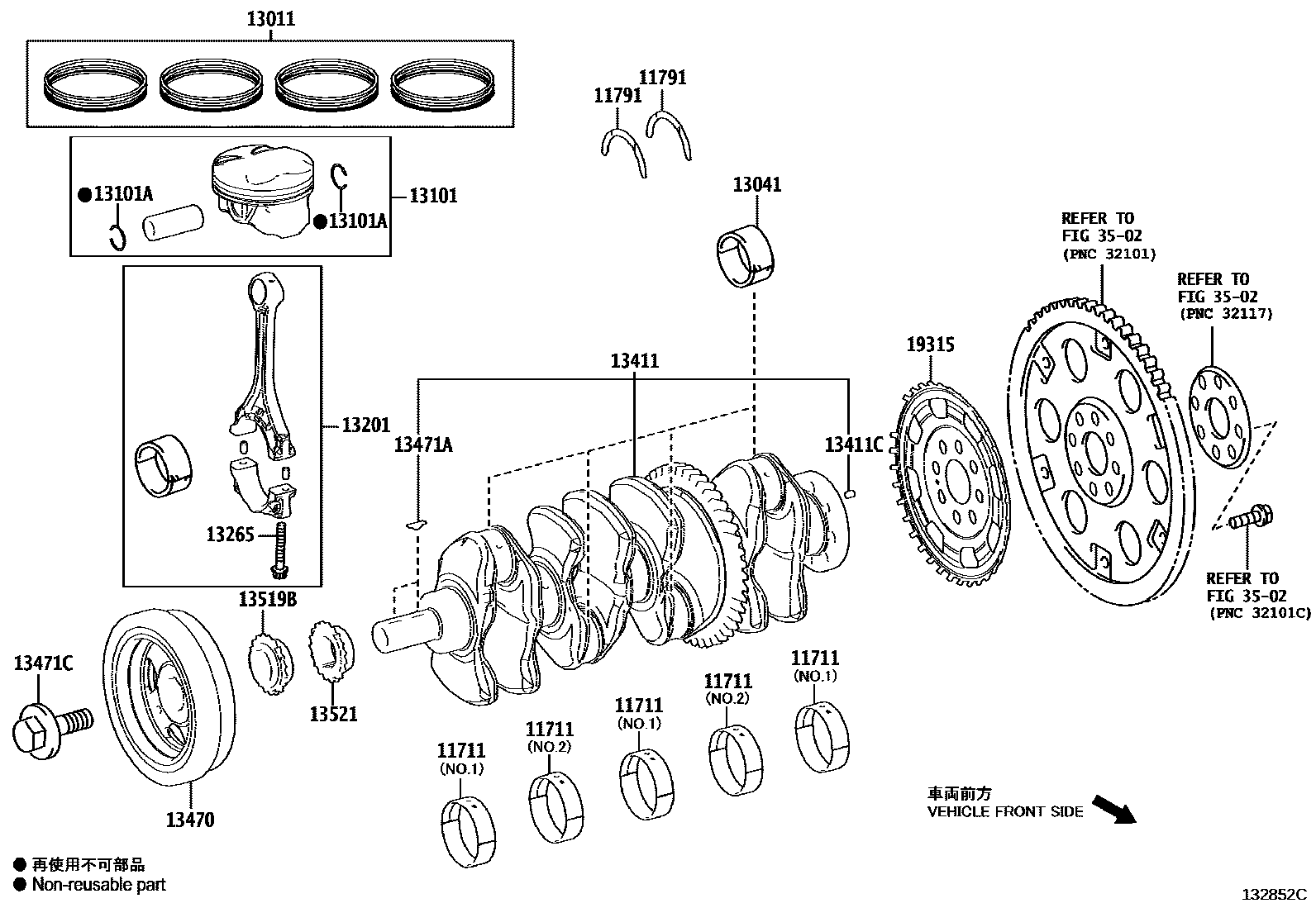

Toyota RAV4 (JPP) — CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11711BEARING, CRANKSHAFT

main11701-24010-01iM20AFKS..MXAA5#..RUS201811-202009

MARK 1,*132:REFER R/M

sub11701-24011¥1,960

main11701-24010-01iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.202008-202303

MARK 1,REFER REPAIR MANUAL

sub11701-24011¥1,960

main11701-24010-02iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202009

MARK 2,*132:REFER R/M

sub11701-24011¥1,960

main11701-24010-02iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)202008-202303

MARK 2,REFER REPAIR MANUAL

sub11701-24011¥1,960

main11701-24010-03iM20AFKS..MXAA5#..JPP202008-202303

MARK 3,REFER REPAIR MANUAL

sub11701-24011¥1,960

main11701-24010-03iM20AFKS..MXAA5#..RUS201811-202009

MARK 3,*132:REFER R/M

sub11701-24011¥1,960

main11701-24010-04iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)201811-202009

MARK 4,*132:REFER R/M

sub11701-24011¥1,960

main11701-24010-04iM20AFKS..MXAA5#..JPP202008-202303

MARK 4,REFER REPAIR MANUAL

sub11701-24011¥1,960

main11701-24010-05iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202009

MARK 5,*132:REFER R/M

sub11701-24011¥1,960

main11701-24010-05iM20AFKS..MXAA5#..JPP202008-202303

MARK 5,REFER REPAIR MANUAL

sub11701-24011¥1,960

main11701-24010-06iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202009

MARK 6,*132:REFER R/M

sub11701-24011¥1,960

main11701-24010-06iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.202008-202303

MARK 6,REFER REPAIR MANUAL

sub11701-24011¥1,960

main11701-24011-01iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 1,REFER REPAIR MANUAL

main11701-24011-02iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 2,REFER REPAIR MANUAL

main11701-24011-03iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)202303-202310

MARK 3,REFER REPAIR MANUAL

main11701-24011-04iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 4,REFER REPAIR MANUAL

main11701-24011-05iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 5,REFER REPAIR MANUAL

main11701-24011-06iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 6,REFER REPAIR MANUAL

main11701-25010-01iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202111-202410

MARK 1,NO.1 & NO.2,REF. R/M

main11701-25010-01iA25#..AXAA5#,AXAH5#201811-201906

MARK 1,NO.1,2 REFER R/M

main11701-25010-01iA25#..AXAA5#,AXAH5#,AXAL5#201906-202111

MARK 1,NO.1,REFER R/M

main11701-25010-02iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201906-202111

MARK 2,NO.1,REFER R/M

main11701-25010-02iA25#..AXAA5#,AXAH5#201811-201906

MARK 2,NO.1,2 REFER R/M

main11701-25010-02iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202111-202410

MARK 2,NO.1 & NO.2,REF. R/M

main11701-25010-03iA25AFKS..AXAA54..RUS202111-202410

MARK 3,NO.1 & NO.2,REF. R/M

main11701-25010-03iA25#..AXAA5#,AXAH5#,AXAL5#201906-202111

MARK 3,NO.1,REFER R/M

main11701-25010-03iA25#..AXAA5#,AXAH5#201811-201906

MARK 3,NO.1,2 REFER R/M

main11701-25010-04iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN201906-202111

MARK 4,NO.1,REFER R/M

main11701-25010-04iA25#..AXAA5#,AXAH5#201811-201906

MARK 4,NO.1,2 REFER R/M

main11701-25010-04iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202111-202410

MARK 4,NO.1 & NO.2,REF. R/M

main11701-25010-05iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202111-202410

MARK 5,NO.1 & NO.2,REF. R/M

main11701-25010-05iA25#..AXAA5#,AXAH5#201811-201906

MARK 5,NO.1,2 REFER R/M

main11701-25010-05iA25AFXS..AXAH54..RUS201906-202111

MARK 5,NO.1,REFER R/M

main11701-25020-01iA25#..AXAA5#,AXAH5#,AXAL5#201906-202111

MARK 1,NO.2,REFER R/M

main11701-25020-02iA25AFKS..AXAA54..RUS201906-202111

MARK 2,NO.2,REFER R/M

main11701-25020-03iA25AFKS..AXAA54..RUS201906-202111

MARK 3,NO.2,REFER R/M

main11701-25020-04iA25AFKS..AXAA54..RUS201906-202111

MARK 4,NO.2,REFER R/M

main11701-25020-05iA25#..AXAA5#,AXAH5#,AXAL5#201906-202111

MARK 5,NO.2,REFER R/M

main11701-F2030-01iM20AFKS..MXAA5#..RUS201910-202009

MARK 1,*613:REFER R/M

main11701-F2030-01iM20AFKS..MXAA5#..RUS202010-202203

MARK 1,REFER REPAIR MANUAL

main11701-F2030-02iM20AFKS..MXAA5#..RUS201910-202009

MARK 2,*613:REFER R/M

main11701-F2030-02iM20AFKS..MXAA5#..RUS202010-202203

MARK 2,REFER REPAIR MANUAL

main11701-F2030-03iM20AFKS..MXAA5#..RUS201910-202009

MARK 3,*613:REFER R/M

main11701-F2030-03iM20AFKS..MXAA5#..RUS202010-202203

MARK 3,REFER REPAIR MANUAL

main11701-F2030-04iM20AFKS..MXAA5#..RUS202010-202203

MARK 4,REFER REPAIR MANUAL

main11701-F2030-04iM20AFKS..MXAA5#..RUS201910-202009

MARK 4,*613:REFER R/M

main11701-F2030-05iM20AFKS..MXAA5#..RUS202010-202203

MARK 5,REFER REPAIR MANUAL

main11701-F2030-05iM20AFKS..MXAA5#..RUS201910-202009

MARK 5,*613:REFER R/M

main11701-F2030-06iM20AFKS..MXAA5#..RUS202010-202203

MARK 6,REFER REPAIR MANUAL

main11701-F2030-06iM20AFKS..MXAA5#..RUS201910-202009

MARK 6,*613:REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥460201906-202310

STD

main11791-24030iM20AFKS..MXAA5#¥620201811-201905

STD

sub11791-15030¥460

main11791-25030iA25AFXS..AXAH54..RUS¥1,930201811-202102

STD

sub11791-25040¥1,740

main11791-25040iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥1,740202103-202410

STD

main11791-F2040iM20AFKS..MXAA5#..RUS201910-202203

STD

13011RING SET, PISTON

main13011-24040iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥11,400201811-202310

STD

main13011-25080iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥12,100201811-202410

STD

main13011-F2020iM20AFKS..MXAA5#..RUS201910-202203

STD

13041BEARING, CONNECTING ROD

main13041-24020-01iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.202008-202310

MARK 1,REFER REPAIR MANUAL

main13041-24020-01iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202009

MARK 1,*132

main13041-24020-02iM20AFKS..MXAA5#..RUS201811-202009

MARK 2,*132

main13041-24020-02iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.202008-202310

MARK 2,REFER REPAIR MANUAL

main13041-24020-03iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)202008-202310

MARK 3,REFER REPAIR MANUAL

main13041-24020-03iM20AFKS..MXAA5#..RUS201811-202009

MARK 3,*132

main13041-25020-01iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS201811-202410

MARK 1,REFER REPAIR MANUAL

main13041-25020-02iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR201811-202410

MARK 2,REFER REPAIR MANUAL

main13041-25020-03iA25AFKS..AXAA54..RUS201811-202410

MARK 3,REFER REPAIR MANUAL

main13041-F2010-01iM20AFKS..MXAA5#..RUS202010-202203

MARK 1,REFER REPAIR MANUAL

main13041-F2010-01iM20AFKS..MXAA5#..RUS201910-202009

MARK 1,*613

main13041-F2010-02iM20AFKS..MXAA5#..RUS202010-202203

MARK 2,REFER REPAIR MANUAL

main13041-F2010-02iM20AFKS..MXAA5#..RUS201910-202009

MARK 2,*613

main13041-F2010-03iM20AFKS..MXAA5#..RUS201910-202009

MARK 3,*613

main13041-F2010-03iM20AFKS..MXAA5#..RUS202010-202203

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-24040iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)¥3,910201811-202310

STD

main13101-25030iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)¥4,320201811-202310

STD

main13101-25040iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN¥4,320201811-202410

STD

main13101-F2090iM20AFKS..MXAA5#..RUS202104-202203

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥70201811-202310

main90520-21024iA25AFXS..AXAH54..RUS¥90201811-202410

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR201811-202410

MARK A,REFER REPAIR MANUAL

main13201-29815-B0iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN201811-202410

MARK B,REFER REPAIR MANUAL

main13201-29815-C0iA25AFKS..AXAA54..RUS201811-202410

MARK C,REFER REPAIR MANUAL

main13201-29825-A0iM20AFKS..MXAA5#201811-201903

MARK A,REFER REPAIR MANUAL

sub13201-29835¥8,600

main13201-29825-B0iM20AFKS..MXAA5#201811-201903

MARK B,REFER REPAIR MANUAL

sub13201-29835¥8,600

main13201-29825-C0iM20AFKS..MXAA5#201811-201903

MARK C,REFER REPAIR MANUAL

sub13201-29835¥8,600

main13201-29835-A0iM20AFKS..MXAA5#..6F..G..(GEN,SA)201904-202310

MARK A,REFER REPAIR MANUAL

main13201-29835-B0iM20AFKS..MXAA5#..6F..G..(GEN,SA)201904-202310

MARK B,REFER REPAIR MANUAL

main13201-29835-C0iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.201904-202310

MARK C,REFER REPAIR MANUAL

main13201-F9010-A0iM20AFKS..MXAA5#..RUS201910-202203

MARK A,REFER REPAIR MANUAL

main13201-F9010-B0iM20AFKS..MXAA5#..RUS201910-202203

MARK B,REFER REPAIR MANUAL

main13201-F9010-C0iM20AFKS..MXAA5#..RUS201910-202203

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥310201811-202410

13411CRANKSHAFT

main13401-24020iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)¥62,900201811-202310

main13401-25010iA25AFXS..AXAH54..RUS¥80,000201811-202410

main13401-F2040iM20AFKS..MXAA5#..RUS201910-202203

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25AFXS..AXAH54..RUS¥70201811-202410

13470PULLEY ASSY, CRANKSHAFT

main13470-24010iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)¥9,900201811-202310

main13470-24030iM20AFKS..MXAA5#..RUS201910-202203

main13470-25010iA25AFKS..AXAA54..RUS¥8,700201811-202310

main13470-25020iA25AFXS..AXAH54..RUS¥5,500201811-202410

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.¥80201811-202410

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iA25AFKS..AXAA54..RUS¥490201811-202410

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010iM20AFKS..MXAA5#..RUS¥680201811-202310

main13519-25010iA25AFXS..AXAH54..RUS¥850201811-202410

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010iM20AFKS..MXAA5#..RUS¥1,300201811-202310

main13521-24010iM20AFKS..MXAA5#..RUS¥1,300202106-202203

(J)

main13521-25010iA25AFKS..AXAA54..RUS¥800201811-202410

main13521-F2040iM20AFKS..MXAA5#..RUS202106-202203

(L)

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)¥2,110201811-202310

main19315-24010iM20AFKS..MXAA5#..RUS¥2,110202106-202203

(J)

main19315-25010iA25AFXS..AXAH54..RUS¥3,050201811-201911

sub19315-25011¥2,810

main19315-25011iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS¥2,810201912-202410

main19315-F2020iM20AFKS..MXAA5#..RUS202106-202203

(L)

3502

17 parts on this diagram · 3 diagrams in section
