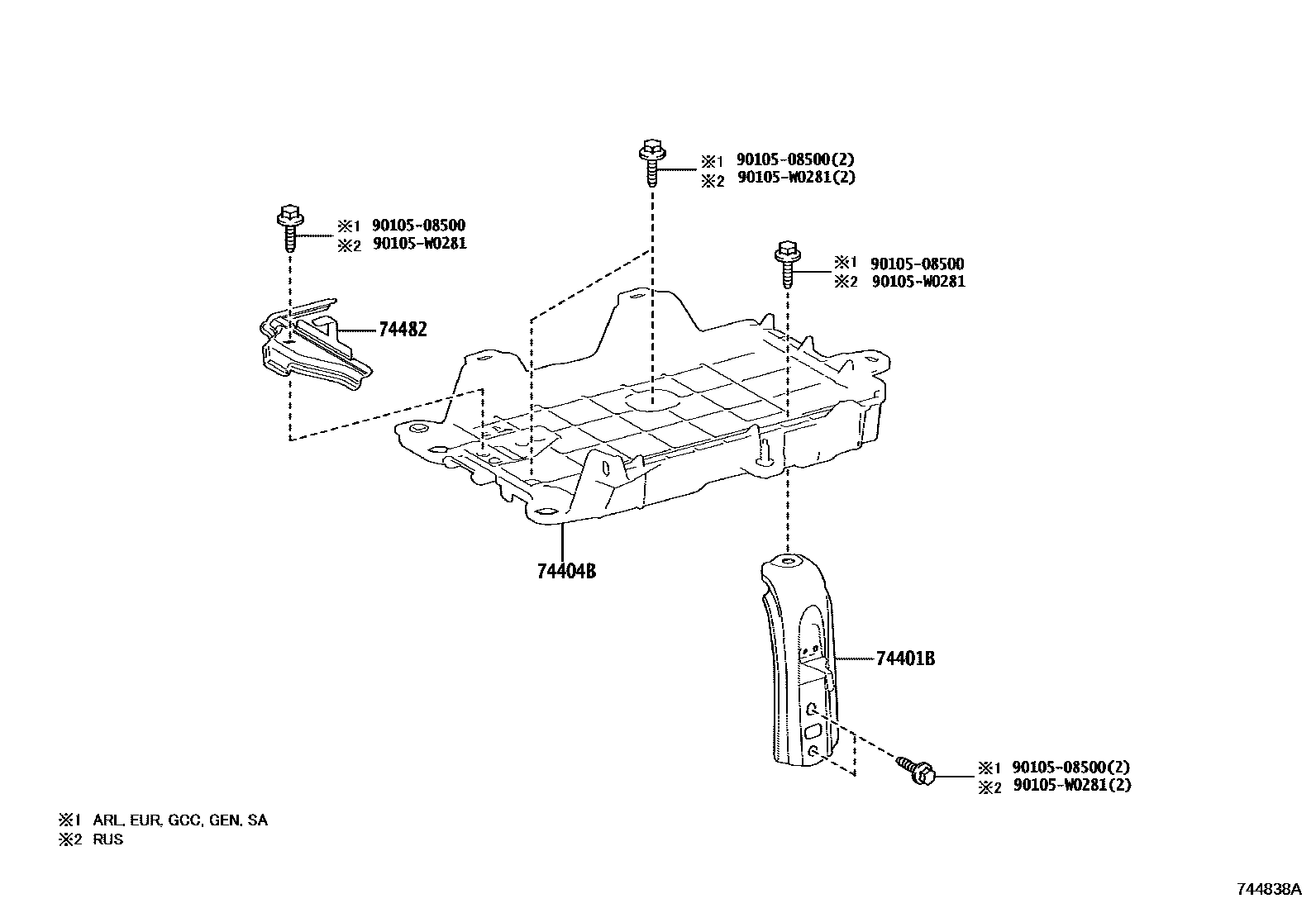

Toyota RAV4 (JPP) — BATTERY CARRIER

0001 1 0002 1

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-33010iMXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA¥1,340201811-202310

74404BCLAMP SUB-ASSY, BATTERY

main74404-06190iAXAA54,MXAA5#..RUS202005-202110

(L)

main74404-0R090iAXAA54,MXAA5#..RUS202110-202203

(L)

main74404-33160iAXAA54..EUR¥4,720201811-202310

main74404-33160iAXAA54,MXAA5#..RUS¥4,720202005-202110

(J)

main74440-42010iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR¥1,760201811-202410

74482CLAMP, BATTERY, NO.2

main74482-33020iMXAA5#..6F..G..(GEN,SA)¥820201811-202310

9010508500

main90105-08500¥100

90105W0281

main90105-W0281

5 parts on this diagram · 2 diagrams in section
