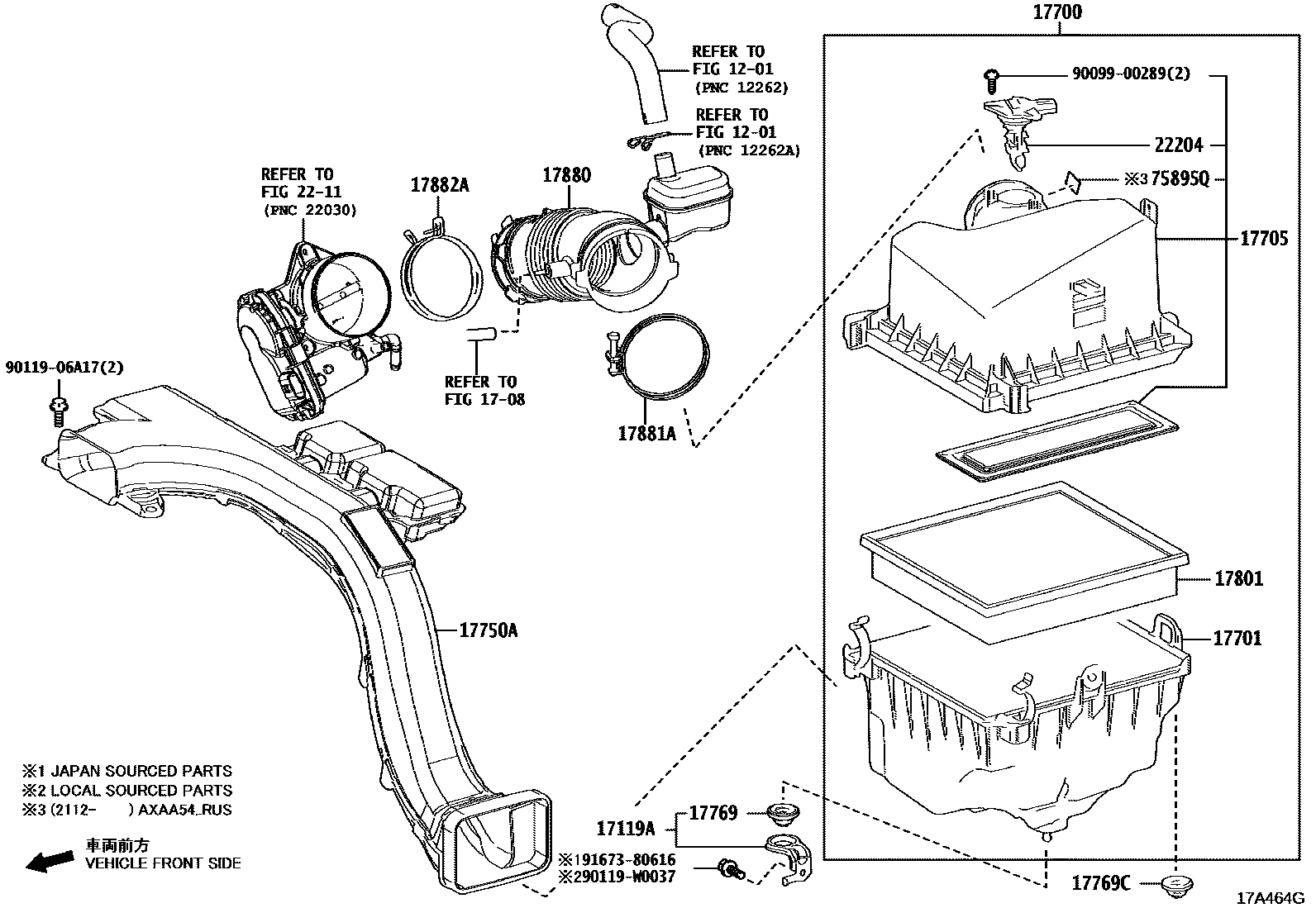

Toyota RAV4 (JPP) — AIR CLEANER

0001 1 0003 1 0004 1 0005 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-25010iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)¥350201811-202410

17700CLEANER ASSY, AIR

main17700-25100iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54..ARL,EUR,GCC,GEN¥20,800201811-202006

sub17700-25101¥17,300

main17700-25101iA25AFXS..AXAH5#,AXAL5#¥17,300202006-202410

main17700-25140iA25AFKS..AXAA5#..ARL,GCC,GEN,RUS,SA201811-202005

sub17700-25141

main17700-25141iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)202006-202203

main17700-25150iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥20,800201811-202005

sub17700-25151¥15,700

main17700-25151iA25AFKS..AXAA5#..JPP¥15,700202006-202310

17701CASE SUB-ASSY, AIR CLEANER

main17701-25080iA25AFXS..AXAH54..RUS201811-202006

sub17701-25081

main17701-25081iA25AFXS..AXAL5#..ARL;A25AFXS..AXAH5#..RHD..M..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202006-202410

main17701-25100iA25AFKS..AXAA54..EUR201811-202006

sub17701-25101

main17701-25101iA25AFKS..AXAA54..RUS202006-202310

17705CAP SUB-ASSY, AIR CLEANER

main17705-25040iA25AFKS..AXAA54..RUS201811-202203

main17705-25050iA25AFKS..AXAA5#..JPP201811-202310

main17705-25070iA25AFXS..AXAH5#,AXAL5#201811-202410

17750AINLET ASSY, AIR CLEANER

main17750-24010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥8,600202210-202411

W/O(MARK)

main17750-24010iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)¥8,600202112-202210

main17750-24031iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202412

W/O(MARK)

main17750-25030iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)¥7,500201811-202203

main17750-25040iA25AFXS..AXAL5#..ARL;A25AFXS..AXAH5#..RHD..M..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR¥3,560201811-202410

main17750-25050iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN201811-202203

17769SUPPORT, AIR CLEANER

main17769-25020iA25AFKS..AXAA5#..JPP¥160201811-202410

NO.1:REFER ILLUST.

main17769-25020iM20AFKS..MXAA5#..RUS¥160201811-202203

main17769-25030iA25AFXS..AXAL5#;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥200201811-202410

NO.2:REFER ILLUST.

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)¥160201811-202310

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKS..AXAA5#..JPP¥4,500201811-202310

main17801-77050iA25AFXS..AXAH54..RUS¥2,700201811-202410

17880HOSE ASSY, AIR CLEANER

main17880-24020iM20AFKS..MXAA5#..CVT..RUS¥2,330201811-202310

main17880-24030iM20AFKS..MXAA5#..6F..GEN¥2,330201811-202310

main17880-25040iA25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH52..LHD..(G,M,P)..GEN;A25AFX¥3,110201811-202410

main17880-25050iA25AFKS..AXAA54..RUS¥2,070201811-202310

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AXAH5#,AXAL5#¥240201811-202410

main96111-10880iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥520201811-202310

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥710201811-202410

main90466-71001iA25AFKS..AXAA54..RUS¥340201811-202310

main96111-10800iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.¥160201811-202310

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN¥9,400201811-202410

75895QTAPE, MOULDING, NO.1

main75895-52050iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥260202112-202410

9009900289

main90099-00289¥60

9011906A17

main90119-06A17¥60

90119W0037

main90119-W0037¥60

9167380616

main91673-80616¥60

20 parts on this diagram · 4 diagrams in section
