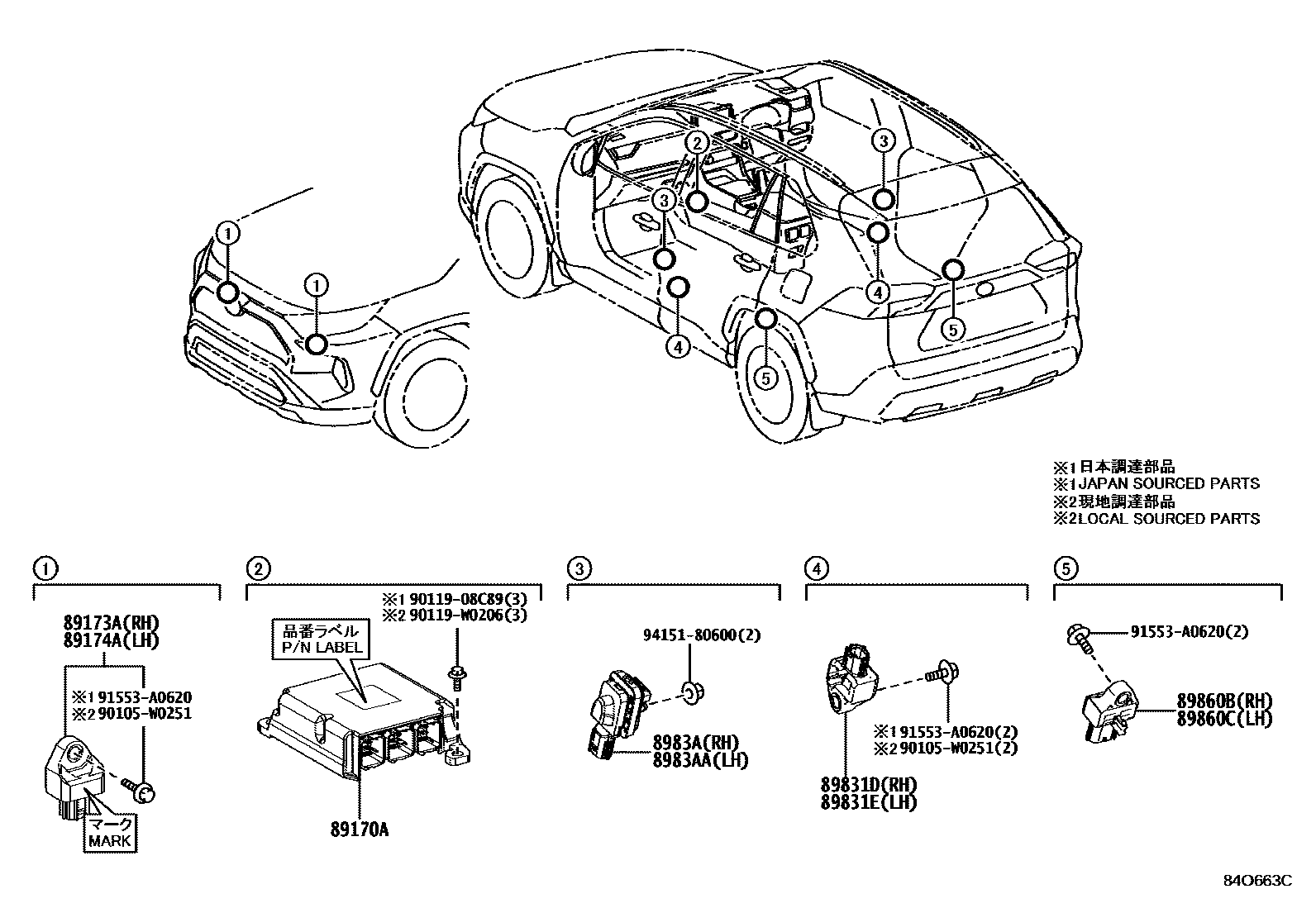

Toyota RAV4 (JPP) — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-42680iMXAA52..6F..G..SA201901-202007

main89170-42A10iMXAA54..6F..G..GEN201811-202007

main89170-42A20iAXAH52..M..GEN;AXAH54..GCC,GEN;AXAH52..LHD..G..GEN201811-202007

main89170-42A30iMXAA5#..LHD..EUR;AXAA54,MXAA52..ARL¥44,800201811-202007

main89170-42A40iAXAH5#,AXAL5#..ARL;AXAH5#,AXAL5#..LHD..EUR¥44,800201811-202007

main89170-42A50iMXAA5#..LHD..(G,M)..EUR201910-202007

FRANCE SPEC&AUDIO-JBL 8INCH DAB, EUROPE

main89170-42A50iMXAA5#..LHD..(G,M)..EUR201910-202007

FRANCE SPEC&AUDIO-6SPEAKER 8INCH DAB, EUROPE

main89170-42A50iMXAA5#..LHD..(G,M)..EUR201910-202007

ITALY SPEC&AUDIO-JBL 8INCH DAB, EUROPE

main89170-42A50iMXAA5#..LHD..(G,M)..EUR201910-202007

ITALY SPEC&AUDIO-6SPEAKER 8INCH DAB, EUROPE

main89170-42A50iMXAA5#..LHD..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA

main89170-42A50iMXAA5#..LHD..EUR201811-202007

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main89170-42A50iMXAA5#..LHD..EUR201811-202007

GERMANY SPEC

main89170-42A50iMXAA5#..LHD..EUR201811-202007

NORWAY,SWEDEN,FINLAND,DENMARK SPEC

main89170-42A50iMXAA5#..LHD..EUR201811-202007

OTHER WVTA COUNTRY, WITHOUT RSA

main89170-42A50iMXAA5#..LHD..EUR201811-202007

SPAIN,JIB SPEC

main89170-42A50iMXAA5#..LHD..EUR201811-202007

ISRAEL SPEC

main89170-42A50iMXAA5#..LHD..EUR201811-202007

TURKEY SPEC

main89170-42A60iAXAH5#,AXAL5#..LHD..EUR201811-202007

GERMANY SPEC

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

NORWAY,SWEDEN,FINLAND,DENMARK SPEC

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

OTHER WVTA COUNTRY, WITHOUT RSA

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

SPAIN,JIB SPEC

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

ISRAEL SPEC

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

TURKEY SPEC

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main89170-42A70iAXAA54,MXAA5#..RUS201910-202009

main89170-42A80iAXAH54..RUS201902-201909

main89170-42B80iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR¥25,400202310-202410

*614

main89170-42B90iAXAL5#..RHD;AXAH52..RHD..(G,P)..EUR202310-202410

*614

main89170-42D20iMXAA52..CVT..ARL;AXAA54..(M,V,X)..ARL¥37,300202008-202202

TAIWAN SPEC

main89170-42D20iAXAA54..G..ARL;MXAA52..6F..ARL¥37,300202008-202112

main89170-42D21iMXAA52..CVT..ARL;AXAA54..(M,V,X)..ARL¥33,800202202-202210

EXCEPT WVTA COUNTRY

main89170-42D21iMXAA54..LHD..V;MXAA52..LHD..CVT..(G,X)..GEN¥33,800202202-202310

TAIWAN SPEC

main89170-42D30iAXAH52..(G,P)..GEN;AXAH54..LHD..G..GEN¥37,300202008-202202

TAIWAN SPEC

main89170-42D30iAXAH5#..LHD..EUR¥37,300202008-202112

main89170-42D31iAXAH5#..ARL;AXAH52..X..GEN;AXAH54..P..GEN¥33,800202202-202310

EXCEPT WVTA COUNTRY

main89170-42D31iAXAH5#..ARL;AXAH52..X..GEN;AXAH54..P..GEN¥33,800202202-202310

TAIWAN SPEC

main89170-42D40iMXAA52..RHD..EUR202008-202202

main89170-42D41iMXAA54..JPP..RUS202202-202310

main89170-42D50iAXAH5#,AXAL5#..RHD..X..EUR202008-202202

main89170-42D51iAXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#..(G,M,P,V)..EUR202202-202310

main89170-42D60iAXAA54,MXAA5#..RUS202010-202202

P/N LABEL=8917042D60

main89170-42D61iMXAA54..JPP..RUS202310

main89170-42D61iAXAA54,MXAA5#..RUS202202-202203

P/N LABEL=8917042D61

main89170-42D70iAXAA52..GCC;AXAA54..LHD..V;MXAA54..(G,V)..GEN;MXAA5#..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..CVT..(M,X)..(GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,X)..(GCC,GEN202008-202202

main89170-42D71iAXAA52..GCC;AXAA54..LHD..V;MXAA54..(G,V)..GEN;MXAA5#..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..CVT..(M,X)..(GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,X)..(GCC,GEN202202-202310

main89170-42D80iAXAH5#..RHD..M..GEN202008-202202

main89170-42D81iAXAH54..P..GEN202202-202310

BRAZIL SPEC

main89170-42D81iAXAH52..GCC;AXAH54..(G,X)..(GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH54..LHD..M..(GCC,GEN)202202-202310

OTHER LATIN-NCAP COUNTRY

main89170-42D81iAXAH52..GCC;AXAH52..(G,M,P)..GEN;AXAH54..(G,M,X)..(GCC,GEN)202310

main89170-42D90iAXAA54,MXAA5#..SA202008-202202

main89170-42D91iAXAA54,MXAA5#..(G,V)..SA202202-202310

main89170-42F30iAXAH54..SA202112-202202

main89170-42F31iAXAH54..SA202202-202310

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iAXAA54..EUR;AXAH52..RHD..G..GEN¥4,110201811-202410

main89173-19515iAXAA54,MXAA5#..RUS¥4,110202202-202208

MARK=J4

main89173-49505iAXAA54,MXAA5#..RUS¥4,110202008-202210

MARK = RA

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iAXAA54,MXAA5#..RUS¥4,110201811-202410

main89173-19515iAXAA54,MXAA5#..RUS¥4,110202202-202208

MARK=J4

main89173-49505iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥4,110202008-202210

MARK = RA

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥4,110202008-202202

main89831-47050iAXAA54,MXAA5#..RUS¥8,200201811-202410

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥4,110202008-202202

main89831-47050iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥8,200201811-202410

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥4,110202310-202410

main8983A-33010iAXAH52..M,X;MXAA52..CVT;MXAA52..6F..(M,X);MXAA52..6F..G..EUR;AXAH52..G..(ARL,EUR);MXAA54..(M,V,X)..GEN;MXAA54..EUR,GCC,RUS,SA;AXAA5#..ARL,GCC,GEN,RUS,SA;AXAH54,AXAL¥9,100201811-202006

sub8983A-33011¥8,200

main8983A-33011iAXAA54,MXAA5#..RUS¥8,200202007-202009

main8983A-52010iAXAA5#,AXAH5#,AXAL5#,MXAA5#¥4,520202008-202101

sub8983A-52011¥4,110

main8983A-52011iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥4,110202102-202310

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥4,110202310-202410

main8983A-33010iAXAH52..M,X;MXAA52..CVT;MXAA52..6F..(M,X);MXAA52..6F..G..EUR;AXAH52..G..(ARL,EUR);MXAA54..(M,V,X)..GEN;MXAA54..EUR,GCC,RUS,SA;AXAA5#..ARL,GCC,GEN,RUS,SA;AXAH54,AXAL¥9,100201811-202006

sub8983A-33011¥8,200

main8983A-33011iAXAA54,MXAA5#..RUS¥8,200202007-202009

main8983A-52010iAXAA5#,AXAH5#,AXAL5#,MXAA5#¥4,520202008-202101

sub8983A-52011¥4,110

main8983A-52011iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥4,110202102-202310

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28040iAXAA54..EUR;AXAH52..RHD..G..GEN¥8,200201811-202009

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥8,200201811-202009

90105W0251

main90105-W0251

9011908C89

main90119-08C89¥80

90119W0206

main90119-W0206

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
