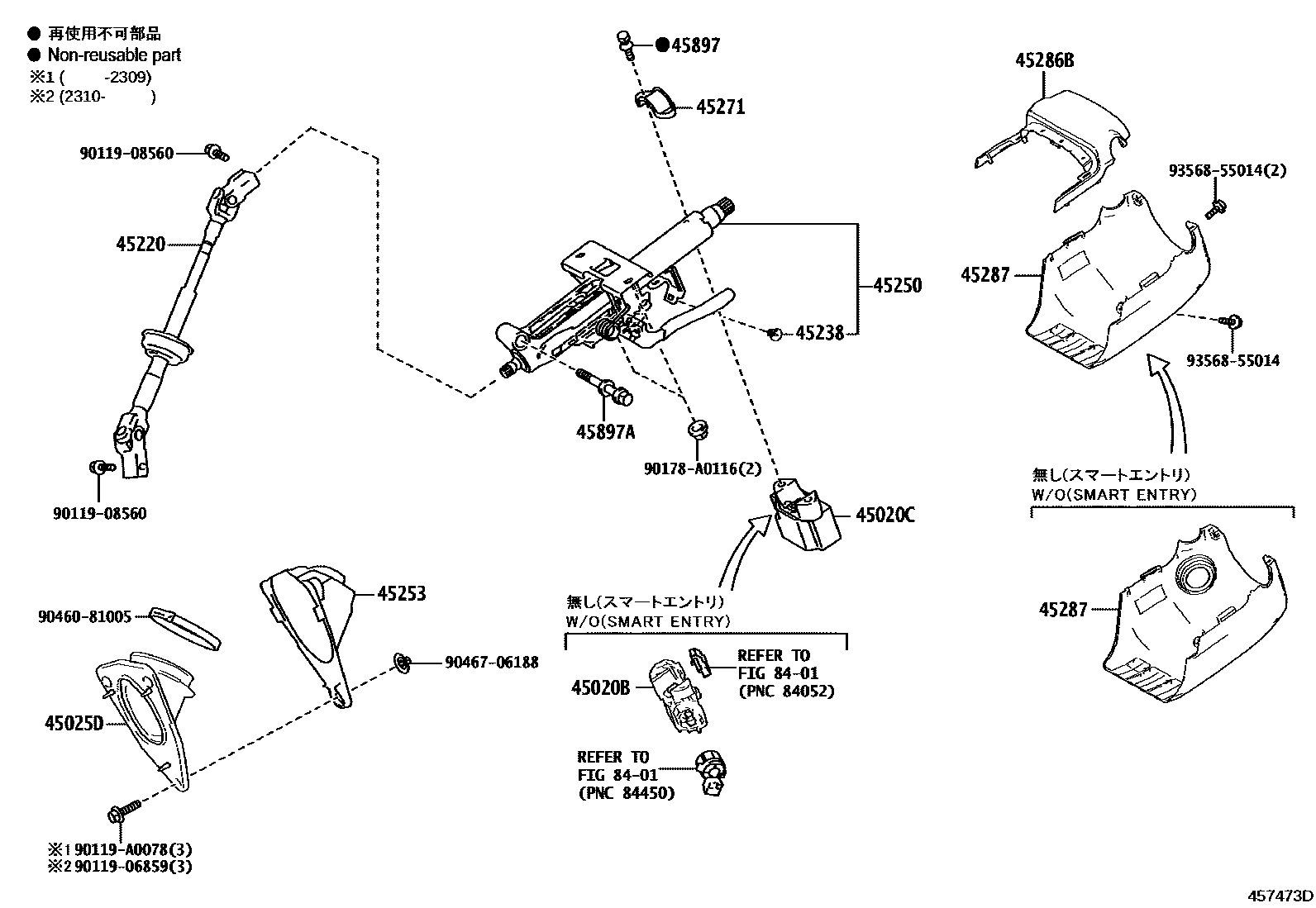

Toyota RAV4 (JPP) — STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-26270iMXAA52..6F..X..(EUR,SA);MXAA5#..LHD..6F..X..GEN¥11,300201811-202310

main45280-33180iAXAA52..X..GCC;AXAA54,MXAA5#..(ATM,CVT)..X..(EUR,GCC,GEN,SA)¥12,000201811-202310

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0R020iAXAA54,MXAA5#..(G,M)..RUS201910-202203

main45020-33240iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥13,500201811-202310

main45020-42270iAXAH5#,AXAL5#,MXAA52..RHD..EUR201811-202310

main45020-42280iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥13,500202310-202410

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42090iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥2,750201811-202410

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42010iAXAA54..EUR201811-202410

main45220-42020iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD¥13,000201811-202410

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥70201811-202410

45250COLUMN ASSY, STEERING

main45250-42410iMXAA5#..X..RUS201811-202310

main45250-42420iAXAA54,MXAA5#..(G,M)..RUS¥46,700201811-202410

45253COVER, STEERING COLUMN HOLE

main45253-42030iAXAA54,MXAA5#..RUS¥720201811-202410

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXAA5#..6F..M..EUR;MXAA52..X..(EUR,SA)¥440201811-202410

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iMXAA5#..(M,X)..EUR201811-202310

BLACK,TRIM2#,4#

main45286-33290-C0iMXAA5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

main45286-33290-C0iMXAA5#..(M,X)..EUR201811-202410

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-33220-C0iMXAA5#..X..RUS201811-202009

BLACK,TRIM1#,2#,4#

main45024-33220-C0iAXAA5#,MXAA5#..X..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main45024-33220-C0iMXAA52..X..EUR202008-202210

BLACK,TRIM2#

main45024-33230-C0iAXAL5#..X..ARL;MXAA54..V..GCC;MXAA52..6F..ARL;AXAA54..RHD..V..GEN201811-202310

BLACK,TRIM2#,4#

main45024-33230-C0iAXAH5#,AXAL5#..RHD..X..EUR202005-202410

BLACK,TRIM2#

main45024-33230-C0iAXAH5#,AXAL5#..RHD..X..EUR201811-202410

BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥210201811-202410

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥190201811-202410

8401

9011906859

main90119-06859¥130

9011908560

main90119-08560¥110

90119A0078

main90119-A0078¥80

90178A0116

main90178-A0116

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

9356855014

main93568-55014¥70

20 parts on this diagram · 2 diagrams in section
