Toyota RAV4 (JPP) — SPARE WHEEL CARRIER

0001 1GROUND TIRE 0002 1TEMPORARY TIRE

51931CARRIER, SPARE WHEEL, NO.1

main51931-33060iAXAH54..RHD..V..EUR¥430202112-202410

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

main51931-33060iAXAL54..RHD..V¥430202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,LTD

main51931-33060iAXAL54..RHD..V;AXAA54,AXAH54..V..ARL;MXAA5#..JPP..G..(ARL,RUS)¥430202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,AD

main51931-33060iAXAL54..RHD..V;AXAA54,AXAH54..V..ARL;MXAA5#..JPP..G..(ARL,RUS)¥430202112-202310

SPARE TIRE-REPAIR KIT

main51931-33060iMXAA52..G..ARL;AXAA54,AXAH54,AXAL54..RHD..V..(ARL,EUR)¥430202112-202210

TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD

main51931-33060iMXAA52..G..ARL;AXAA54,AXAH54,AXAL54..RHD..V..(ARL,EUR)¥430202112-202210

TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD

main51931-42030iAXAH52..LHD..M;AXAL5#..G,M,P,X;AXAL54,MXAA54..LHD..V;AXAH52..(G,P,X)..(EUR,GEN);MXAA52..LHD..CVT..(G,X)..GEN;AXAH54..LHD..(G,M,P,V)..(EUR,GEN)¥380201911-202210

SPARE TIRE-REPAIR KIT

main51931-42030iAXAA54..EUR;AXAH52..RHD..G..GEN¥380201911-202410

main51931-42030iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;AXAH54,AXAL5#,MXAA5#..JPP¥380201911-202007

SPARE TIRE-T165/90D18(TEMPORARY),STEEL

main51931-42030iAXAA54,MXAA52..(G,V)..ARL¥380202310

SPARE TIRE-GROUND TIRE(18)

main51931-42030iAXAA54,MXAA52..(G,V)..ARL¥380202310

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

main51931-42040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥510201811-201911

sub51931-42030¥380

main51931-42040iAXAH5#,MXAA5#..EUR;AXAA54,AXAH5#,MXAA52..LHD..(ATM,CVT)..GEN¥510201811-201910

SPARE TIRE-REPAIR KIT

sub51931-42030¥380

main51931-42040iAXAH5#,MXAA5#..EUR;AXAA54,AXAH5#,MXAA52..LHD..(ATM,CVT)..GEN¥510201811-201910

SPARE TIRE-T165/90D18(TEMPORARY),STEEL

sub51931-42030¥380

64777CCUSHION, SPARE WHEEL

main64777-0R130iAXAA54,MXAA5#..RUS201910-202203

main64777-42070iMXAA5#..G..EUR201811-202006

SPARE TIRE-T165/90D18(TEMPORARY),STEEL

sub64777-42071

main64777-42070iMXAA5#..G..EUR201811-202010

SPARE TIRE-REPAIR KIT

sub64777-42071

main64777-42070iMXAA5#..6F..G..(GEN,SA)201811-202004

sub64777-42071

main64777-42071iMXAA54..LHD..V;AXAH5#..LHD..GEN;MXAA52..LHD..CVT..(G,X)..GEN202210

SPARE TIRE-GROUND TIRE(17)

main64777-42071iAXAH5#..LHD..GEN;MXAA54..LHD..V..GEN;MXAA52..LHD..CVT..(G,X)..GEN202011-202210

SPARE TIRE-REPAIR KIT

main64777-42071iMXAA52..LHD..GEN;MXAA52..(M,X)..(ARL,GCC);MXAA52..RHD..(EUR,GEN,SA);AXAA54,AXAH54..V..(GCC,GEN,SA);AXAA52,AXAH52,MXAA54..ARL,GCC,GEN,SA;AXAA54,AXAH54..(G,M,P,X)..(A202210

SPARE TIRE-GROUND TIRE(18)

main64777-42071iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;AXAH5#..RHD..X..EUR;AXAA54..RHD..V..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..RHD..(ARL,GEN202011-202111

main64777-42080iAXAA5#,MXAA5#..(G,V)..(GCC,GEN)¥3,600202008-202210

SPARE TIRE-REPAIR KIT

main64777-42080iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,P,V)..EUR¥3,600202310

TIRE & DISC WHEEL-235/55R19,ALUMI,AD

main64777-42080iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,P,V)..EUR¥3,600202310

TIRE & DISC WHEEL-235/55R19,ALUMI,LTD

main64777-42080iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,P,V)..EUR¥3,600202008-202210

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

main64777-42080iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,P,V)..EUR¥3,600202008-202210

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

main64777-42080iAXAH54..RUS¥3,600201902-202410

main64777-42080iAXAL5#..RHD..X..EUR¥3,600202008-202111

SPARE TIRE-165/80D17(REINFORCED TEMPORARY),ALUMI

main64777-42080iAXAA54..V..ARL;MXAA52..G..ARL;MXAA52..LHD..EUR;AXAH5#..LHD..X..EUR;AXAH5#,MXAA54..(G,M)..EUR¥3,600202112-202210

TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD

main64777-42080iAXAA54..V..ARL;MXAA52..G..ARL;MXAA52..LHD..EUR;AXAH5#..LHD..X..EUR;AXAH5#,MXAA54..(G,M)..EUR¥3,600202112-202210

TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD

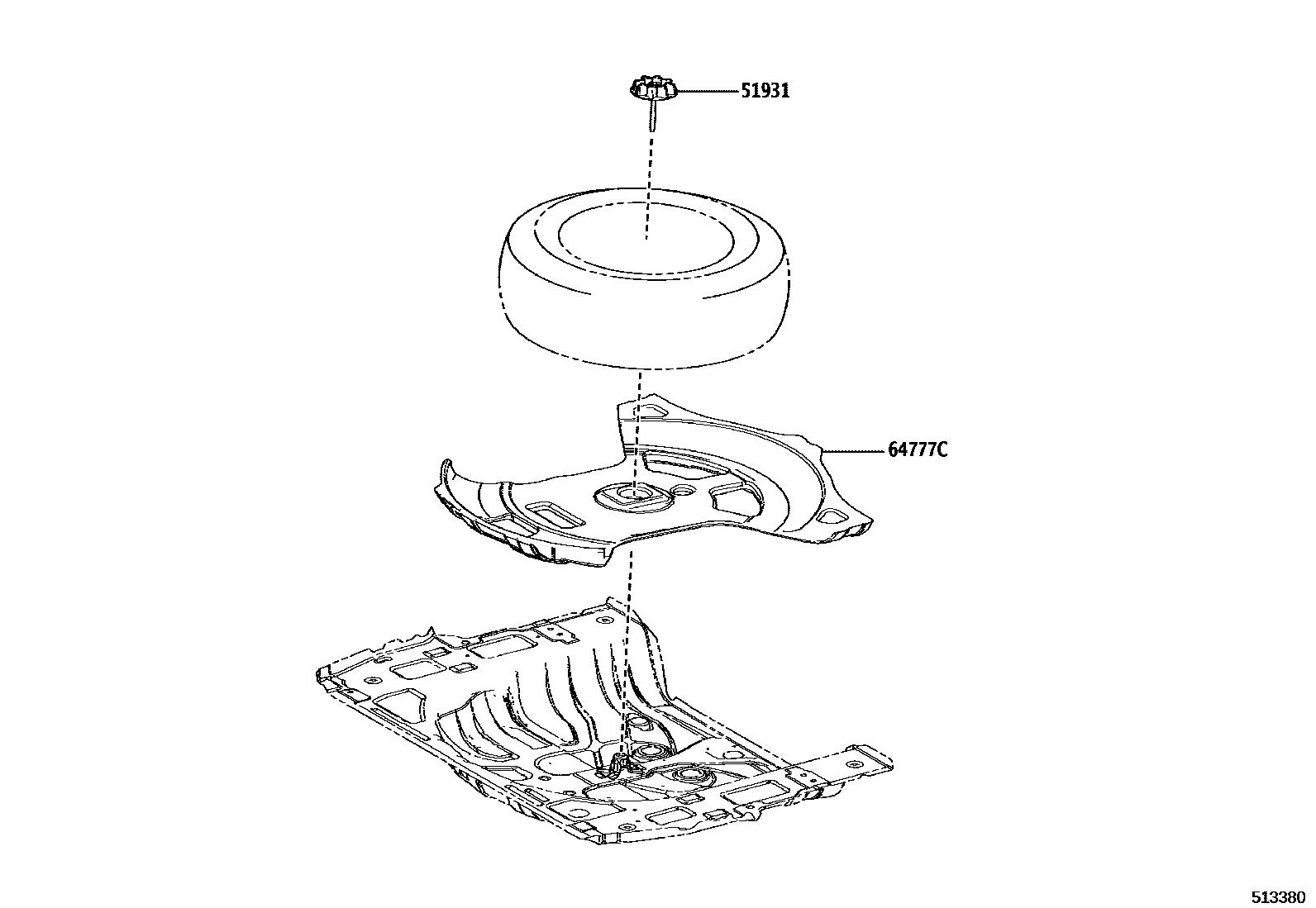

2 parts on this diagram · 2 diagrams in section
