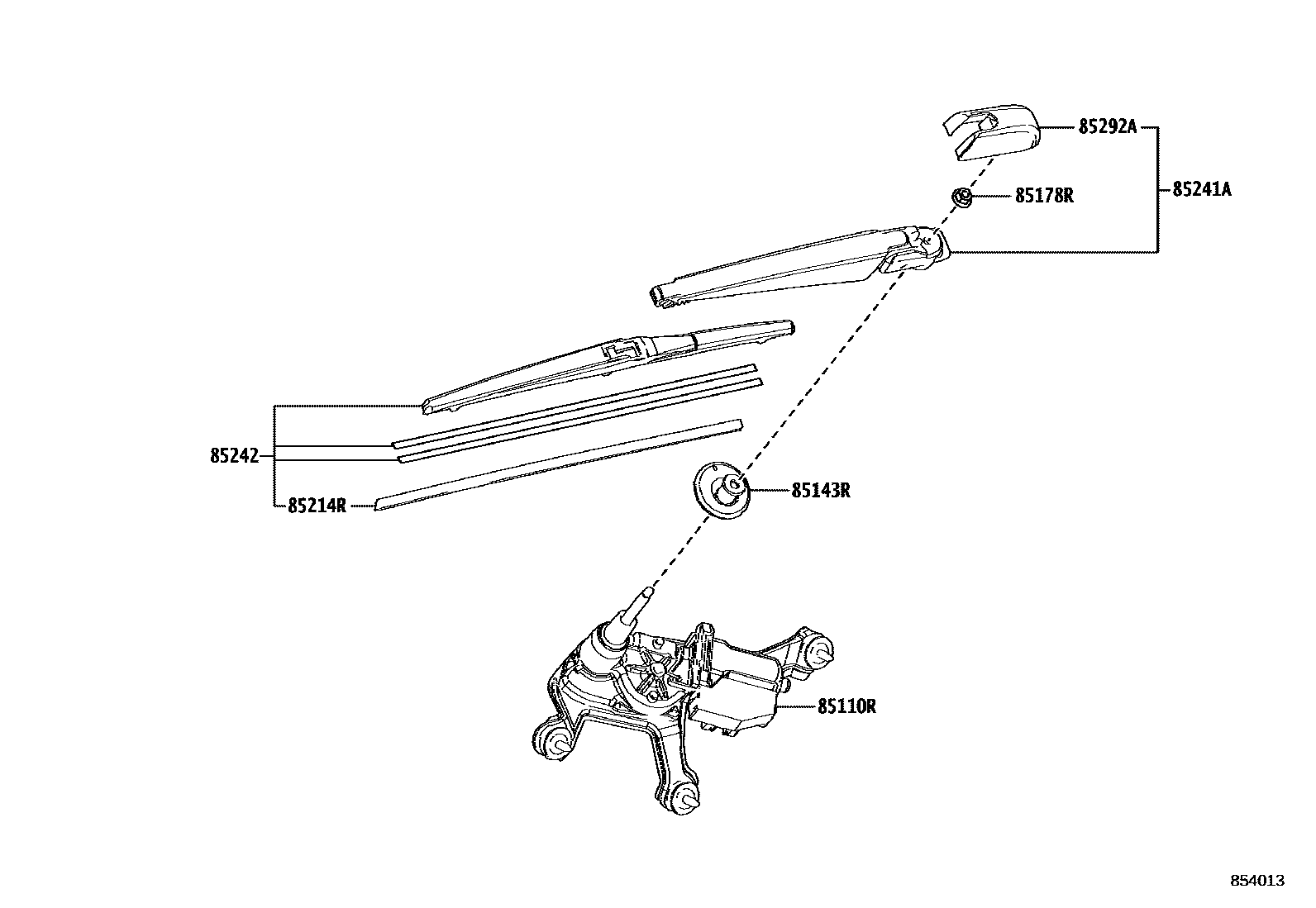

Toyota RAV4 (JPP) — REAR WIPER

0001 1 0002 1 0004 1 0005 1

85110RMOTOR ASSY, REAR WIPER

main85130-42100iAXAA5#,AXAH5#,MXAA5#..JPP¥21,200201811-201911

sub85130-42101¥17,600

sub90119-06864¥80

main85130-42101iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP¥17,600201911-202303

sub85130-42102¥16,000

sub90119-06864¥80

main85130-42102iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥16,000202303-202410

main85130-42110iAXAA54,MXAA5#..RUS201910-202203

85143RGROMMET, REAR WIPER MOTOR

main85143-42050iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥0201811-202410

main85143-42070iAXAA54,MXAA5#..RUS201910-202203

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAXAA54..EUR;AXAH52..RHD..G..GEN¥70201811-202410

85214RRUBBER, REAR WIPER

main85214-12320iAXAA54,MXAA5#..RUS¥600201910-202203

main85214-42040iAXAL5#..ARL;AXAA52..X..GEN;AXAA54..RHD..V..GEN¥600201811-202410

85241AARM, REAR WIPER

main85241-42110iAXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR¥1,340201811-202410

main85241-42120iAXAA54,MXAA5#..RUS201910-202203

85242BLADE, RR WIPER

main85242-12150iAXAA54,MXAA5#..RUS¥1,220201910-202203

main85242-72010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥1,220201811-202410

85292ACAP, REAR WIPER ARM HEAD

main85244-12060iAXAA54,MXAA5#..RUS201910-202203

main85292-42010iAXAL5#..ARL;AXAA52..X..GEN;AXAA54..RHD..V..GEN¥480201811-202410

7 parts on this diagram · 4 diagrams in section
