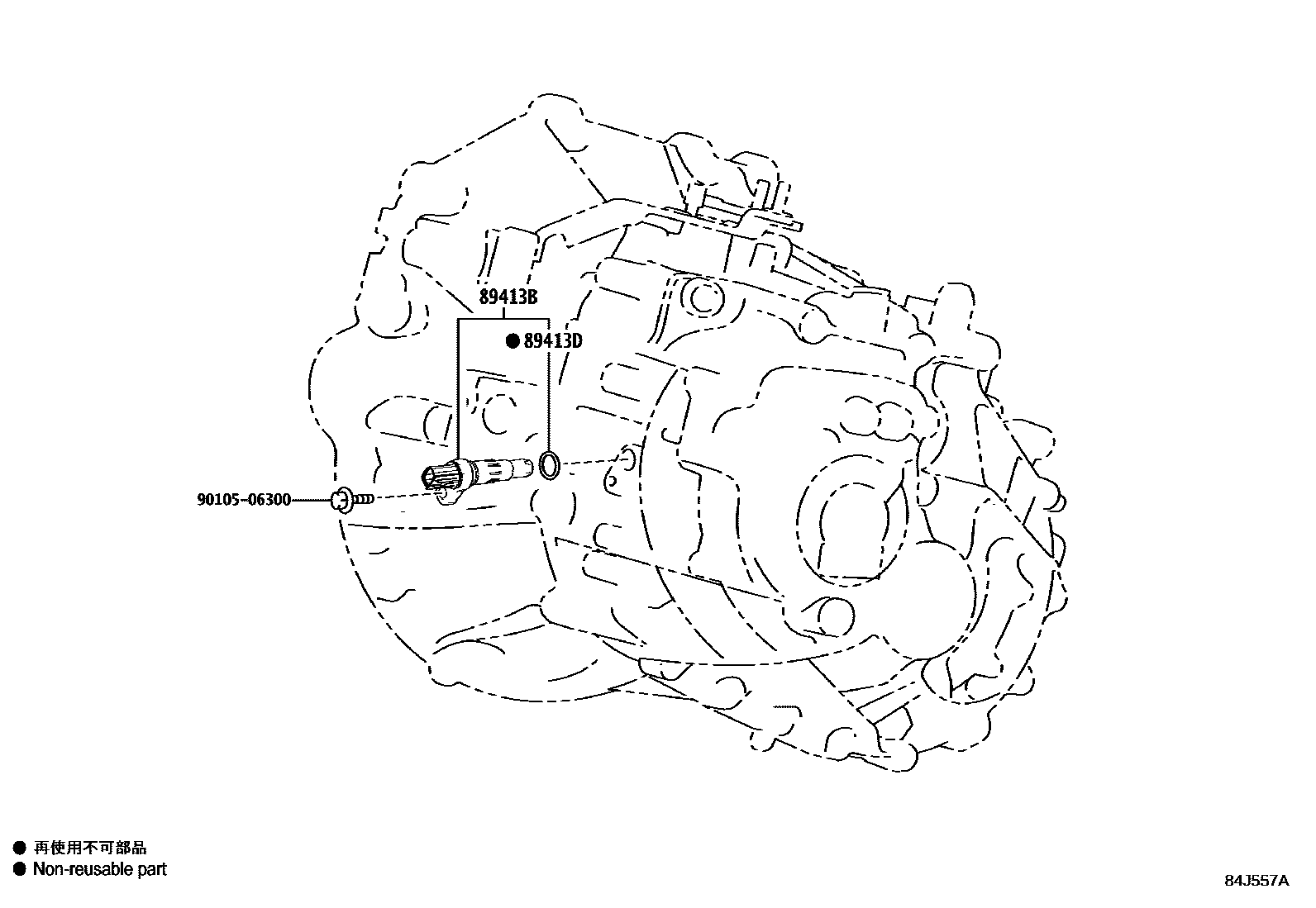

Toyota RAV4 (JPP) — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1EG62,EG62F 0002 1UB80E,UB80F 0003 1K120,K120F

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12040iMXAA5#..6F..(M,X);MXAA5#..6F..G..EUR201811-202102

sub89413-12041

main89413-12041iMXAA5#..6F..GEN202007-202310

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iMXAA5#..RHD..6F..(ARL,GEN)¥160201811-202310

main90301-11008iMXAA52..6F..GEN;MXAA54..JPP..(GCC,GEN,RUS,SA)¥160202310

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

9010506300

main90105-06300¥60

3 parts on this diagram · 3 diagrams in section
