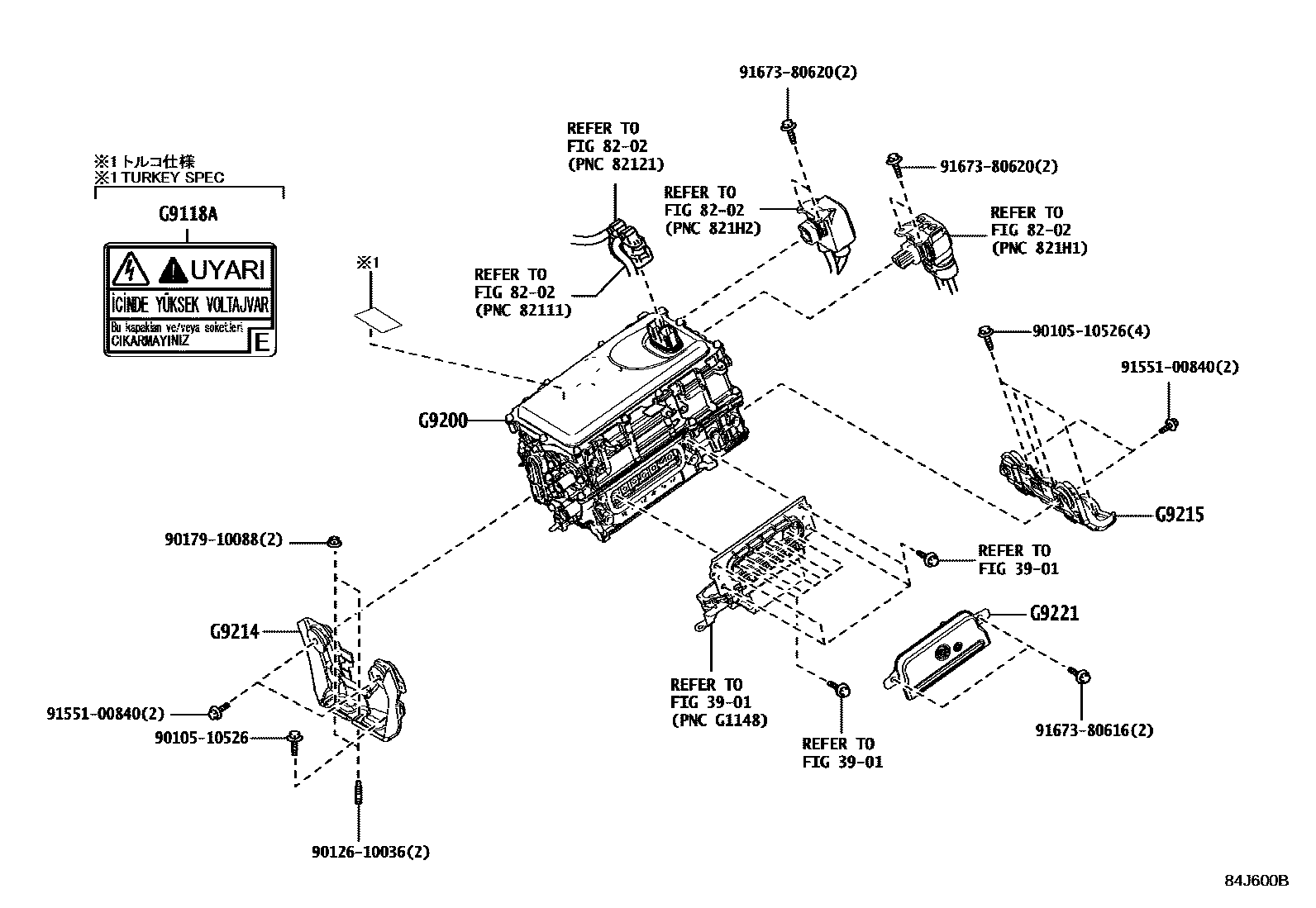

Toyota RAV4 (JPP) — HEV INVERTER

0001 1 0002 1 0003 1HV CONVERTER KIT 0004 1HV CONVERTER KIT

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9200INVERTER ASSY, W/CONVERTER

mainG92A033031iAXAH52,AXAL52202008-202106

subG92A0-33032¥341,000

mainG92A033031iAXAH52..RHD..G..GEN201811-202004

subG92A0-33032¥341,000

mainG92A033031iAXAL52;AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR)201811-202007

subG92A0-33032¥341,000

mainG92A033032iAXAL52..ARL;AXAH52..RHD..GEN;AXAH52,AXAL52..RHD..X..EUR202107-202111

subG92A0-33033¥309,000

mainG92A033032iAXAL52..(G,M,P)..EUR;AXAH52..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR)202107-202204

subG92A0-33033¥309,000

mainG92A033033iAXAH52,AXAL52202210-202310

mainG92A033033iAXAL52..(G,M,P)..EUR;AXAH52..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR)202205-202210

mainG92A033033iAXAH52..ARL,GCC,GEN202310

mainG92A042070iAXAH54,AXAL54202008-202106

subG92A0-42071¥435,000

mainG92A042070iAXAH54..RUS201902-201909

subG92A0-42071¥435,000

mainG92A042070iAXAH54,AXAL54..ARL,EUR,GCC,GEN201902-202007

subG92A0-42071¥435,000

mainG92A042071iAXAL54..ARL;AXAH54..RHD..M..GEN;AXAH54,AXAL54..RHD..X..EUR202107-202111

subG92A0-42072¥395,000

mainG92A042071iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAH54..X..(ARL,GCC);AXAL54..(G,M,P,V)..EUR;AXAH54,AXAL54..LHD..X..EUR;AXAH54..(G,M,P,V)..(ARL,EUR,GCC,SA)202107-202206

subG92A0-42072¥395,000

mainG92A042072iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAH54..X..(ARL,GCC);AXAL54..(G,M,P,V)..EUR;AXAH54,AXAL54..LHD..X..EUR;AXAH54..(G,M,P,V)..(ARL,EUR,GCC,SA)202207-202210

mainG92A042072iAXAH54,AXAL54202210-202310

mainG92A042072iAXAH54..ARL,GCC,GEN,SA202310

mainG92A042150iAXAH54..X..EUR;AXAH54..RHD..EUR202310-202410

mainG92A042150iAXAL54;AXAH54..LHD..(G,M,P,V)..EUR202310-202503

mainG92A042160iAXAL52;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR202310

mainG92A042160iAXAH52..RHD..M..EUR202310-202410

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202008-202210

mainG921433040iAXAH5#,AXAL5#202210-202310

mainG921433040iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

mainG921433040iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR202310

mainG921433040iAXAH54..RUS201811-201909

mainG921433040iAXAH52..RHD..G..GEN201811-202004

mainG921433040iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007

mainG921433040iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202111

G9215BRACKET, INVERTER, NO.2

mainG921533040iAXAL52;AXAH52..ARL,GCC,GEN;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR202310

mainG921533040iAXAH52..RHD..G..GEN201811-202004

mainG921533040iAXAL52;AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR)201811-202007

mainG921533040iAXAH52..RHD..M..EUR202310-202410

mainG921533040iAXAL52..ARL;AXAH52..RHD..GEN;AXAH52,AXAL52..RHD..X..EUR202008-202111

mainG921533040iAXAH52,AXAL52202210-202310

mainG921533040iAXAL52..(G,M,P)..EUR;AXAH52..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR)202008-202210

mainG921542010iAXAL54;AXAH54..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR202310

mainG921542010iAXAH54..RUS201902-201909

mainG921542010iAXAH54,AXAL54..ARL,EUR,GCC,GEN201902-202007

mainG921542010iAXAL54..ARL;AXAH54..RHD..M..GEN;AXAH54,AXAL54..RHD..X..EUR202008-202111

mainG921542010iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAH54..X..(ARL,GCC);AXAL54..(G,M,P,V)..EUR;AXAH54,AXAL54..LHD..X..EUR;AXAH54..(G,M,P,V)..(ARL,EUR,GCC,SA)202008-202210

mainG921542010iAXAH54,AXAL54202210-202310

mainG921542010iAXAH54..X..EUR;AXAH54..RHD..EUR202310-202410

G9221COVER, INVERTER

mainG902247050iAXAH54..RUS201811-201909

mainG902247050iAXAH52..RHD..G..GEN201811-202004

mainG902247050iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007

mainG902247050iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR202008-202111

mainG902247050iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,202008-202210

mainG902247050iAXAH5#,AXAL5#202210-202310

mainG902247050iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

mainG902247050iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR202310

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

13 parts on this diagram · 4 diagrams in section
