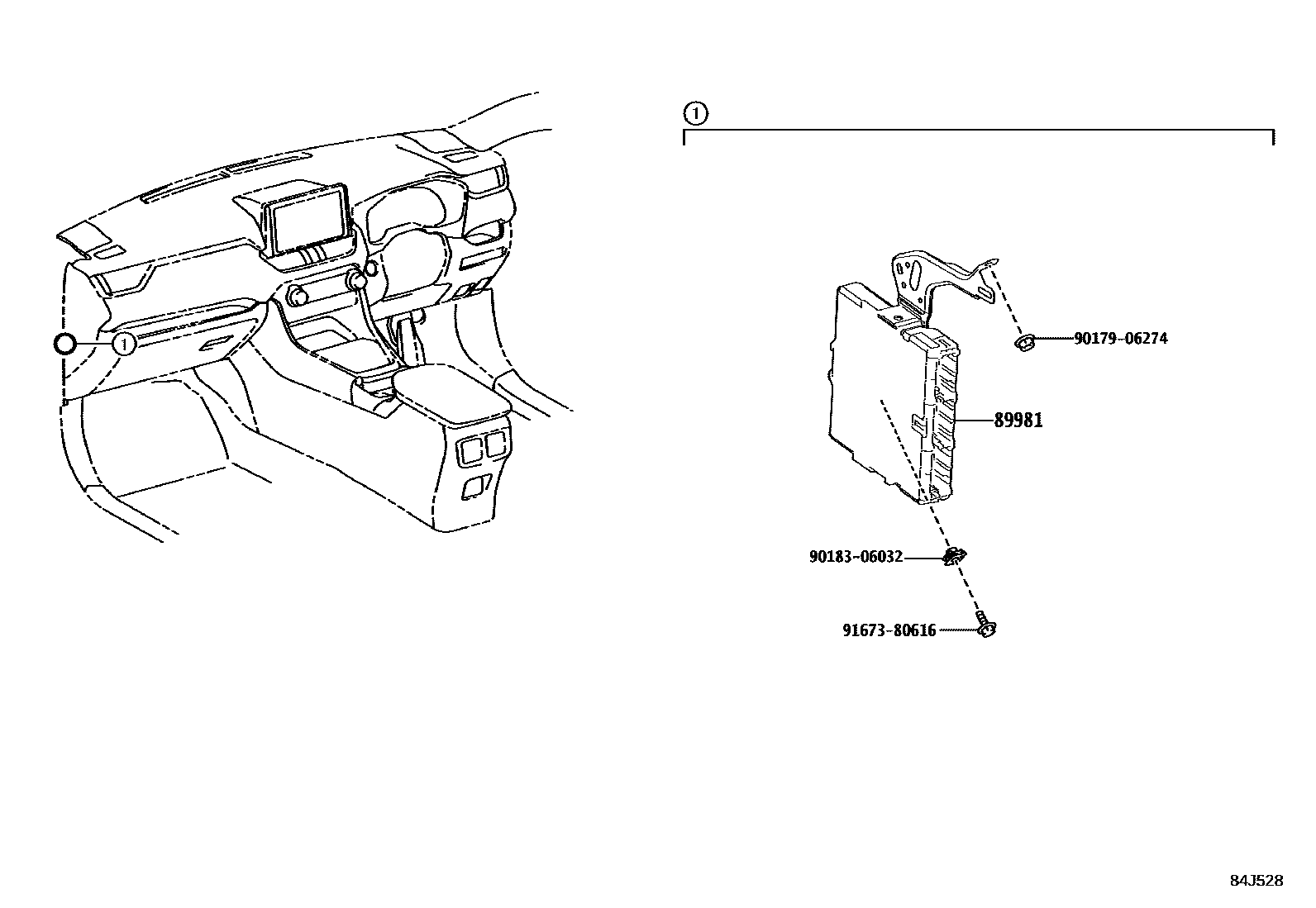

Toyota RAV4 (JPP) — HEV CONTROL COMPUTER

0001 1 0002 1

89981COMPUTER, HYBRID VEHICLE CONTROL

main89980-42110iAXAH52..LHD201811-202007

main89980-42120iAXAH52..RHD..G..GEN201901-202004

main89980-42120iAXAH52..G..ARL;AXAH52..RHD..(M,X)..(ARL,GEN)201901-202007

main89980-42150iAXAH54..LHD..(EUR,GCC,GEN)201902-202007

main89980-42150iAXAH54..RUS201902-201909

main89980-42160iAXAH54..RHD201902-202007

main89980-42210iAXAH52..RHD..EUR201811-202007

main89980-42310iAXAL52..LHD202005-202007

main89980-42310iAXAL52..LHD202008-202112

main89980-42320iAXAL52..RHD202005-202007

main89980-42320iAXAL52..RHD..(G,M)..EUR202008-202112

main89980-42320iAXAL52..ARL;AXAL52..RHD..X..EUR202008-202111

main89980-42330iAXAL54..LHD202008-202112

main89980-42330iAXAL54..LHD202005-202007

main89980-42340iAXAL54..ARL;AXAL54..RHD..X..EUR202008-202111

main89980-42340iAXAL54..RHD202005-202007

main89980-42340iAXAL54..RHD..(G,M)..EUR202008-202112

main89980-42400iAXAH52..LHD202008-202112

main89980-42410iAXAH52..X..ARL;AXAH52..RHD..(G,M)..(ARL,EUR)202008-202112

main89980-42410iAXAH52..RHD..GEN;AXAH52..RHD..X..EUR202008-202111

main89980-42420iAXAH54..LHD202008-202112

main89980-42430iAXAH54..RHD..M..GEN;AXAH54..RHD..X..EUR202008-202111

main89980-42430iAXAH54..X..ARL;AXAH54..RHD..G..GEN;AXAH54..RHD..(G,M)..(ARL,EUR)202008-202112

main89980-42630iAXAH52..LHD202112-202210

main89980-42640iAXAH52..X..ARL;AXAH52..RHD..(G,M,P)..(ARL,EUR)202112-202210

main89980-42650iAXAH54..LHD202112-202210

main89980-42660iAXAH54..X..ARL;AXAH54..RHD..G..GEN;AXAH54..RHD..(G,M,P,V)..(ARL,EUR,SA)202112-202210

main89980-42690iAXAL52..LHD202112-202210

main89980-42700iAXAL52..RHD..(G,M,P)..EUR202112-202210

main89980-42710iAXAL54..LHD202112-202210

main89980-42720iAXAL54..RHD..(G,M,P,V)..EUR202112-202210

main89980-42A00iAXAL52..RHD202210-202310

main89980-42A10iAXAL52..LHD202210-202310

main89980-42A20iAXAL54..RHD202210-202310

main89980-42A30iAXAL54..LHD202210-202310

main89980-42B10iAXAH52..RHD202210-202310

main89980-42B10iAXAH52..ARL202310

main89980-42B20iAXAH52..LHD202210-202310

main89980-42B20iAXAH52..GCC,GEN202310

main89980-42B30iAXAH54..RHD..(ARL,GEN,SA)202310

main89980-42B30iAXAH54..RHD202210-202310

main89980-42B40iAXAH54..LHD202210-202310

main89980-42B40iAXAH54..LHD..(GCC,GEN)202310

main89980-42C30iAXAL52..RHD202310

*614

main89980-42C40iAXAL52..LHD202310

*614

main89980-42C50iAXAL54..RHD202310

*614

main89980-42C60iAXAL54..LHD202310

*614

main89980-42C70iAXAH52..RHD..(G,P)..EUR202310

*614

main89980-42C70iAXAH52..RHD..M..EUR202310-202410

*614

main89980-42C80iAXAH52..LHD..EUR202310

*614

main89980-42C90iAXAH54..RHD..EUR202310-202410

*614

main89980-42D00iAXAH54..X..EUR202310-202410

*614

main89980-42D00iAXAH54..LHD..(G,M,P,V)..EUR202310

*614

9017906274

main90179-06274¥70

9018306032

main90183-06032¥70

9167380616

main91673-80616¥60

4 parts on this diagram · 2 diagrams in section
