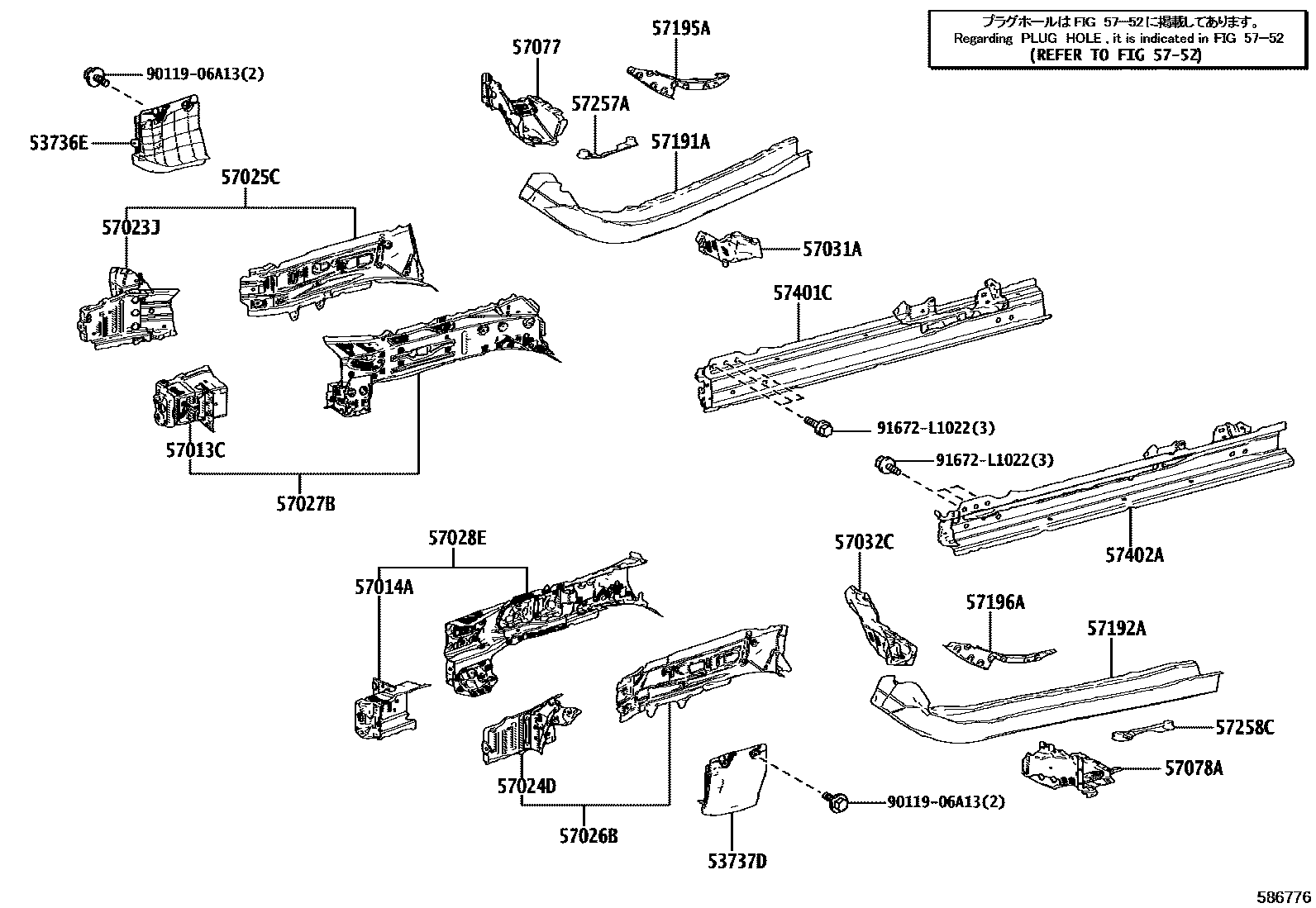

Toyota RAV4 (JPP) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR SIDE MEMBER 0002 1FLOOR PANEL 0003 1FLOOR PANEL 0005 1FLOOR PANEL

53736ESEAL, FRONT FENDER APRON, RH

main53736-0R070iAXAA54,MXAA5#..RUS201910-202203

main53736-42050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,820201811-202410

53737DSEAL, FRONT FENDER APRON, LH

main53737-0R040iAXAA54,MXAA5#..RUS201910-202203

main53737-42010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥1,820201811-202410

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥6,200201811-202410

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-42010iAXAA54..EUR;AXAH52..RHD..G..GEN¥6,200201811-202410

57023JMEMBER SUB-ASSY, REAR SIDE, RH

main57023-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥3,990201811-202410

57024DMEMBER SUB-ASSY, REAR SIDE, LH

main57024-42010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥3,990201811-202410

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0R050iAXAA54,MXAA5#..RUS201910-202203

sub57025-42010¥9,200

main57025-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥9,200201811-202410

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0R050iAXAA54,MXAA5#..RUS201910-202203

sub57026-42020¥9,200

main57026-42020iAXAA54..EUR;AXAH52..RHD..G..GEN¥9,200201811-202410

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0R040iAXAA54,MXAA5#..RUS201910-202203

sub57027-42020¥21,100

main57027-42020iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥21,100201811-202410

57028EBRACKET SUB-ASSY, CONVERTER SUPPORT

main57028-0R040iAXAA54,MXAA5#..RUS201910-202203

sub57028-42020¥22,400

main57028-42020iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥22,400201811-202410

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-42010iAXAA54,MXAA5#..RUS¥4,840201811-202410

57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥5,800201811-202410

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-42020iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥4,910201811-202410

main57077-42040iAXAA54,MXAA5#..RUS202101-202203

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-42020iAXAA54..EUR;AXAH52..RHD..G..GEN¥4,910201811-202410

main57078-42040iAXAA54,MXAA5#..RUS202101-202203

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-42070iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥12,400201811-202410

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-42070iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥12,400201811-202410

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-42040iAXAA54,MXAA5#..RUS¥2,490201811-202410

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,490201811-202410

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-42030iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥1,060201811-202410

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,060201811-202410

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0R090iAXAA54,MXAA5#..RUS201910-202203

sub57401-42160¥13,700

main57401-42160iAXAA54..EUR;AXAH52..RHD..G..GEN¥13,700201811-202410

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0R100iAXAA54,MXAA5#..RUS201910-202203

sub57402-42180¥13,700

main57402-42180iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥13,700201811-202410

5752

9011906A13

main90119-06A13¥60

91672L1022

main91672-L1022¥100

25 parts on this diagram · 4 diagrams in section
