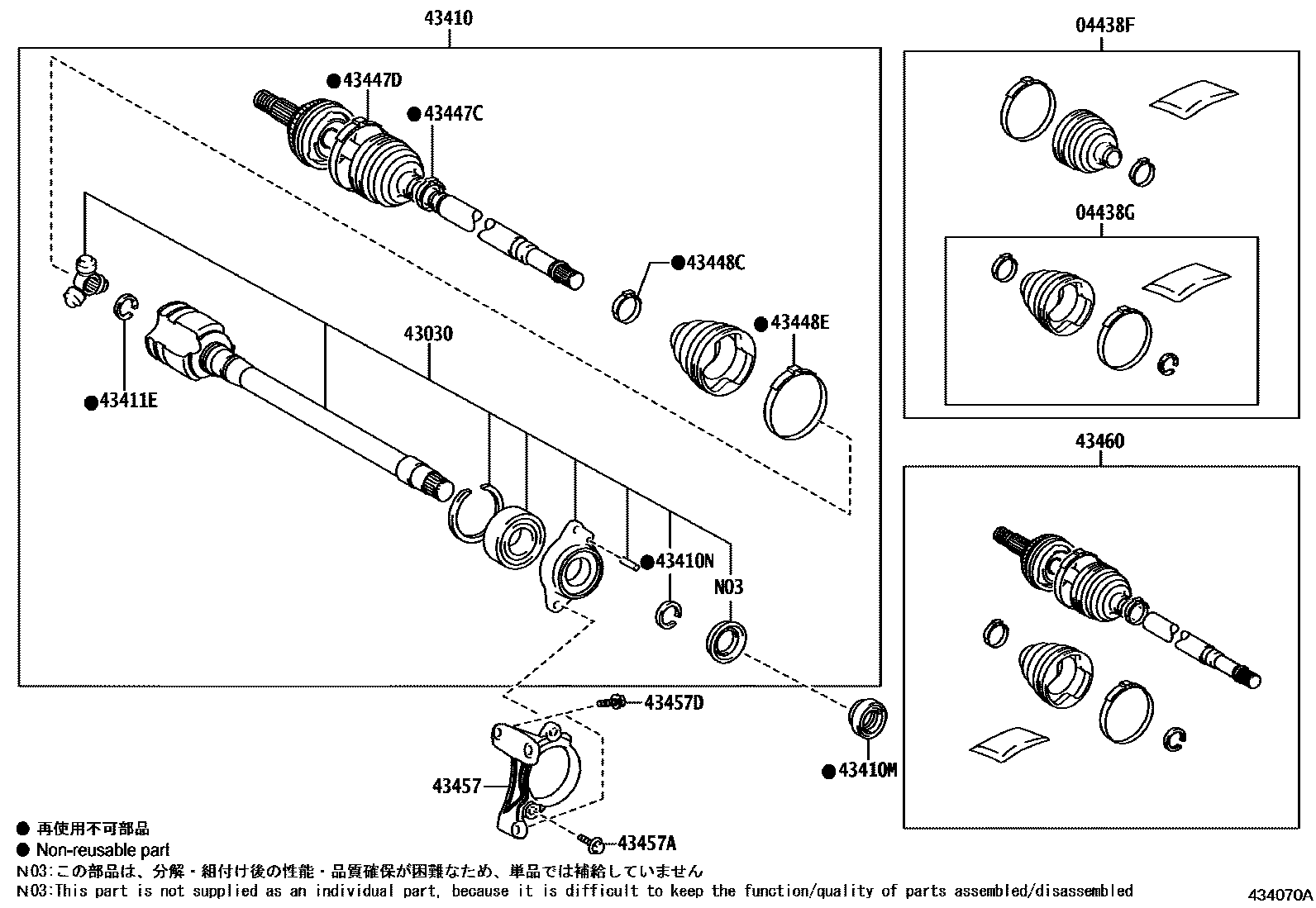

Toyota RAV4 (JPP) — FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42170iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA52..RHD..6F..(ARL,GEN)¥7,500202008-202307

W/O DAMPER

sub04427-42171¥6,700

main04427-42170iMXAA52..6F..RUS¥7,500201811-202009

sub04427-42171¥6,700

main04427-42171iAXAH5#,AXAL5#;MXAA5#..JPP..6F¥6,700202308-202410

W/O DAMPER

main04427-42180iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ATM,CVT)..(ARL,GCC,GEN,RUS,SA)¥6,700201811-202009

main04427-42180iMXAA54..(G,V)..GCC¥6,700202008-202210

W/O DAMPER

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-42080iMXAA54..RUS;MXAA52..CVT..RUS¥4,150202008-202410

W/O DAMPER

main04437-42080iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥4,150201811-202009

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33060iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN¥19,900201811-202310

main43030-33070iMXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;MXAA52..6F..(EUR,SA);MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,¥19,900201811-202410

main43030-42120iMXAA54..CVT..M..EUR;MXAA54..CVT..(G,V)..(EUR,GEN,SA)¥19,900201811-202210

main43030-42130iAXAA54..JPP..(M,X)201811-202310

main43030-42140iAXAA54..(G,V)..(ARL,GCC,GEN,SA)201811-202310

main43030-48080iMXAA54..6F..EUR;MXAA54..(M,X)..(GCC,GEN)¥19,900201811-202210

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42300iAXAH52..RHD..G..GEN¥52,100201811-202410

main43410-42311iMXAA54..JPP..LHD..6F201811-202310

main43410-42331iMXAA52..CVT..RUS¥52,100201811-202310

main43410-42341iMXAA54..CVT..(M,X)..(GCC,GEN)¥52,100201811-202310

main43410-42351iMXAA54..JPP..M..RUS;MXAA54..JPP..(G,V)..(GEN,RUS,SA)¥52,100201811-202310

main43410-42360iAXAA52..RHD;AXAA52..X..GEN202008-202310

W/O DAMPER

main43410-42360iAXAA52201811-202007

main43410-42371iAXAA54..M..RUS201811-202310

main43410-42381iAXAA54..LHD..V..GEN;AXAA54..V..(ARL,GCC);AXAA54..G..(GCC,GEN,SA)201811-202310

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN¥470201811-202310

main90311-40047iMXAA52..JPP..CVT;MXAA52..6F..G..EUR;MXAA52..JPP..6F..(M,X)¥470201811-202310

main90311-40049iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,¥470201811-202410

main90316-34001iAXAA54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)¥450201811-202310

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iAXAA54..G..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN¥110201811-202310

main90520-38015iMXAA52..RUS¥100201811-202410

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥40201811-202410

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXAA54..EUR¥220201811-202210

main42345-42120iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;MXAA52..6F..(EUR,SA);MXAA52..LHD..6F..GEN;MXAA54..JPP..LHD..6F;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(¥220201811-202410

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXAA54,MXAA5#..(ATM,CVT)..RUS¥340201811-202210

main42345-42110iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥350201811-202410

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28090iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥400202310-202410

main42345-33120iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥260201811-202210

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,480201811-202410

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAXAA52¥3,520201811-202310

main43457-33060iAXAH52..M,X;MXAA52..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA52..JPP..6F..(M,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)¥3,400201811-202410

main43457-42180iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X)¥3,320201811-202310

main43457-42190iAXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA54..(G,M,X)..(GCC,GEN,SA)¥3,240201811-202310

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA52..RHD..6F..(ARL,GEN)¥110201812-202310

*10-1.25PX22-19.5,(J)

main90105-10361iAXAA52¥110201811-202410

*10-1.25PX22-19.5

main90105-W0214iMXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥100201812-202310

*10-1.25PX22-19.5,(L)

main90119-10461iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);AXAA54..ARL,GCC,GEN,SA¥200201811-202310

*10-1.25PX19.8-8.3

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)¥100202112-202310

(J)

main90105-10381iAXAA54,MXAA5#..RUS¥100201811-202410

main90105-W0215iMXAA52..X..(ARL,GCC,GEN);AXAA54,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202112-202310

(L)

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80465iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥31,600201811-202410

main43470-80466iMXAA5#..JPP..CVT;AXAA5#..ARL,GCC,GEN,SA¥31,600201811-202210
