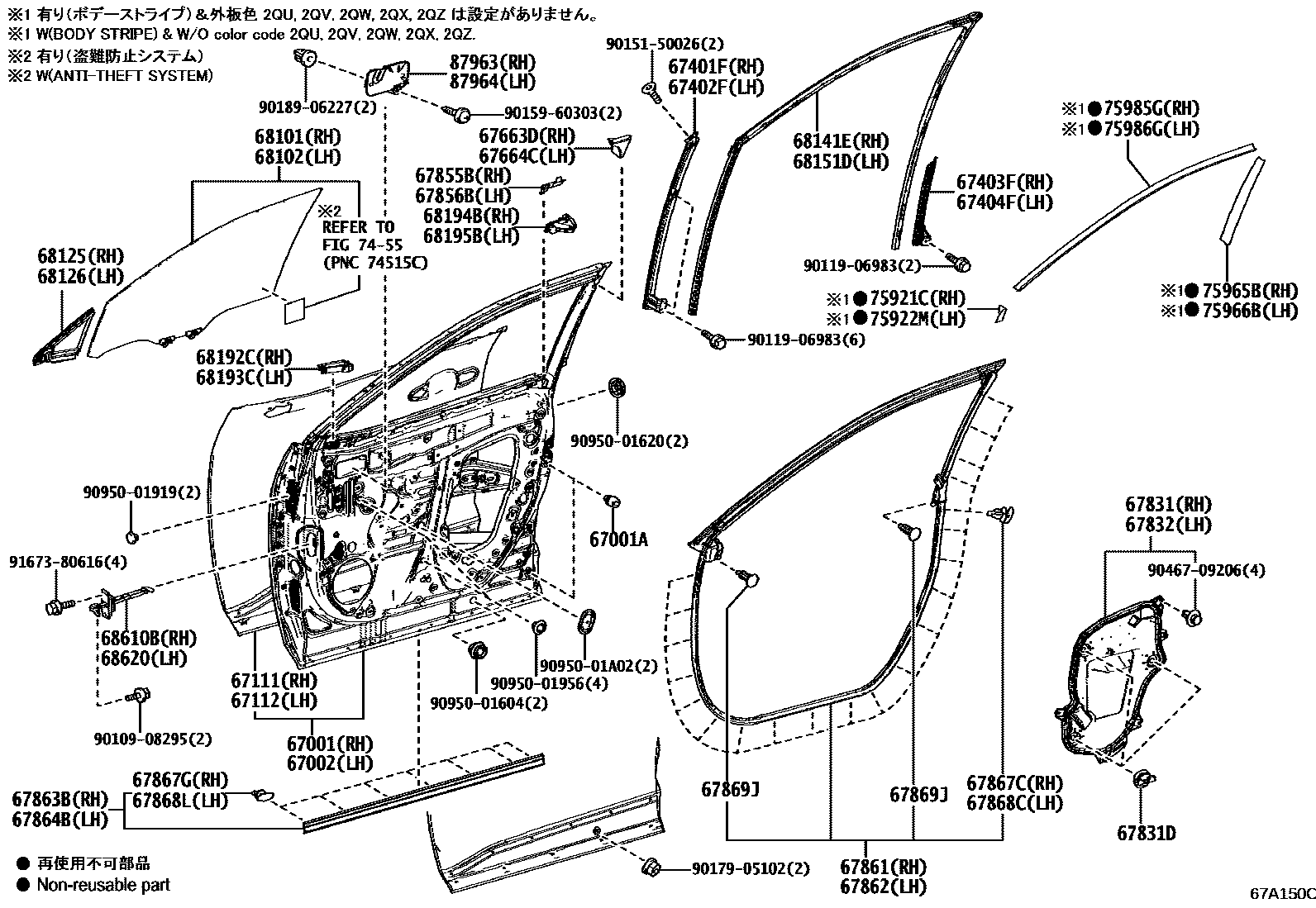

Toyota RAV4 (JPP) — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0R120iAXAA54,MXAA5#..RUS201910-202105

sub67001-0R121

sub87091-42010¥240

main67001-0R121iAXAA54,MXAA5#..RUS202105-202203

sub67001-42161¥48,000

main67001-42160iAXAA54..EUR;AXAH52..RHD..G..GEN¥52,800201811-202103

sub67001-42161¥48,000

sub87091-42010¥240

main67001-42161iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥48,000202103-202410

67001ACUSHION, FRONT DOOR PANEL

main90541-09137iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥100201811-202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0R140iAXAA54,MXAA5#..RUS201910-202105

sub67002-0R141

sub87091-42010¥240

main67002-0R141iAXAA54,MXAA5#..RUS202105-202203

sub67002-42181¥48,000

main67002-42180iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP¥52,800201811-202103

sub67002-42181¥48,000

sub87091-42010¥240

main67002-42181iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥48,000202103-202410

67111PANEL, FRONT DOOR, OUTER RH

main67111-0R100iAXAA54,MXAA5#..RUS201910-202203

sub67111-42080

main67111-42080iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

67112PANEL, FRONT DOOR, OUTER LH

main67112-0R100iAXAA54,MXAA5#..RUS201910-202203

sub67112-42080

main67112-42080iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-42030iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥2,590201811-202410

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-42030iAXAA54,MXAA5#..RUS¥2,590201811-202410

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-42050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,590201811-202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-42050iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥1,590201811-202410

67663DGARNISH, DOOR FRAME, RH

main67663-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥330201811-202410

67664CGARNISH, DOOR FRAME, LH

main67664-42030iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥330201811-202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-42090iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥4,090201811-202410

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-42010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥140202404-202410

main67869-47010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥140201811-202403

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-42040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥4,090201811-202410

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0R040iAXAA54,MXAA5#..RUS201910-202203

main67855-42030iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥160201811-202410

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0R040iAXAA54,MXAA5#..RUS201910-202203

main67856-42030iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥160201811-202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-42120iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥5,500201811-202410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-42120iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH¥5,500201811-202410

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-42040iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥1,610201811-202410

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,610201811-202410

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥100201811-202410

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iAXAA54..EUR;AXAH52..RHD..G..GEN¥100201811-202410

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥100201811-202410

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥100201811-202410

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)¥100201811-202410

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0R090iAXAA54,MXAA5#..RUS201910-202203

main68101-42260iAXAH52..X;AXAL5#..LHD;AXAH52..LHD..(G,M,P);AXAH54,MXAA52..X..(ARL,EUR);AXAA5#,AXAH54,MXAA52..GCC,GEN;MXAA54..JPP..(EUR,GCC,GEN,RUS);AXAH54,MXAA52..LHD..(G,M,P,V)..E¥19,500201811-202410

main68101-42290iAXAH5#,AXAL5#..RHD..X..EUR;AXAA54,MXAA52..RHD..(G,M,V)..(ARL,EUR);AXAH5#,AXAL5#,MXAA54..RHD..(G,M,V)..(ARL,EUR,SA)201811-202410

main68101-42300iAXAA54,AXAH54,MXAA5#..(G,V)..SA202008-202210

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

main68101-42300iAXAH54..RUS201901-202210

main68101-42300iAXAA54,AXAH54..SA202008-202210

ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0R090iAXAA54,MXAA5#..RUS201910-202203

sub68102-42270¥19,500

main68102-42270iAXAA54..EUR;AXAH52..RHD..G..GEN¥19,500201811-202410

main68102-42300iAXAA54,AXAH5#,AXAL5#,MXAA52..RHD..(G,M,P,V)..(ARL,EUR)201811-202410

main68102-42310iAXAA54,AXAH54,MXAA5#..SA202008-202210

ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))

main68102-42310iAXAH54..RUS201901-202210

main68102-42310iAXAA54,AXAH54..SA202008-202210

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0R040iAXAA54,MXAA5#..RUS201910-202203

main68125-42020iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥9,900201811-202410

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0R040iAXAA54,MXAA5#..RUS201910-202203

sub68126-42020¥9,900

main68126-42020iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥9,900201811-202410

68141ERUN, FRONT DOOR GLASS, RH

main68141-42120iAXAA5#,AXAH5#,MXAA5#¥3,530201811-201903

sub68141-42121¥2,660

main68141-42121iAXAA54,MXAA5#..RUS¥2,660201904-202410

68151DRUN, FRONT DOOR GLASS, LH

main68151-42120iAXAA5#,AXAH5#,MXAA5#¥3,530201811-201903

sub68151-42121¥2,660

main68151-42121iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥2,660201904-202410

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-0R040iAXAA54,MXAA5#..RUS201910-202203

main68192-42010iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥640201811-202410

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-0R040iAXAA54,MXAA5#..RUS201910-202203

main68193-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥640201811-202410

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-0R040iAXAA54,MXAA5#..RUS201910-202203

main68194-42010iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥570201811-202410

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-0R040iAXAA54,MXAA5#..RUS201910-202203

main68195-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥570201811-202410

68610BCHECK ASSY, FRONT DOOR, RH

main68610-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥2,330201811-202410

68620CHECK ASSY, FRONT DOOR, LH

main68610-42060iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥2,330201811-202410

7455

75921CTAPE, BLACK OUT, NO.1 RH

main75921-42050iAXAH5#,AXAL5#..P¥290202112-202310

BODY STRIPE-WITHOUT

main75921-42050iAXAH54..RHD..P..EUR¥290202310-202410

75922MTAPE, BLACK OUT, NO.1 LH

main75922-42050iAXAH5#,AXAL5#..P¥290202112-202310

BODY STRIPE-WITHOUT

main75922-42050iAXAH54..RHD..P..EUR¥290202310-202410

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-42010iAXAH5#,AXAL5#..P¥670202112-202310

BODY STRIPE-WITHOUT

main75965-42010iAXAH54..RHD..P..EUR¥670202310-202410

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-42010iAXAH5#,AXAL5#..P¥670202112-202310

BODY STRIPE-WITHOUT

main75966-42010iAXAH54..RHD..P..EUR¥670202310-202410

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-42050iAXAH5#,AXAL5#..P¥1,230202112-202310

BODY STRIPE-WITHOUT

main75985-42050iAXAH54..RHD..P..EUR¥1,230202310-202410

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-42030iAXAH5#,AXAL5#..P¥1,230202112-202310

BODY STRIPE-WITHOUT

main75986-42030iAXAH54..RHD..P..EUR¥1,230202310-202410

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥670201811-202410

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥670201811-202410

9010908295

main90109-08295¥80

9011906983

main90119-06983¥60

9015150026

main90151-50026¥60

9015960303

main90159-60303¥70

9017905102

main90179-05102¥90

9018906227

main90189-06227¥70

9046709206

main90467-09206¥80

9095001604

main90950-01604¥110

9095001620

main90950-01620¥110

9095001919

main90950-01919¥100

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

9167380616

main91673-80616¥60

59 parts on this diagram · 3 diagrams in section
