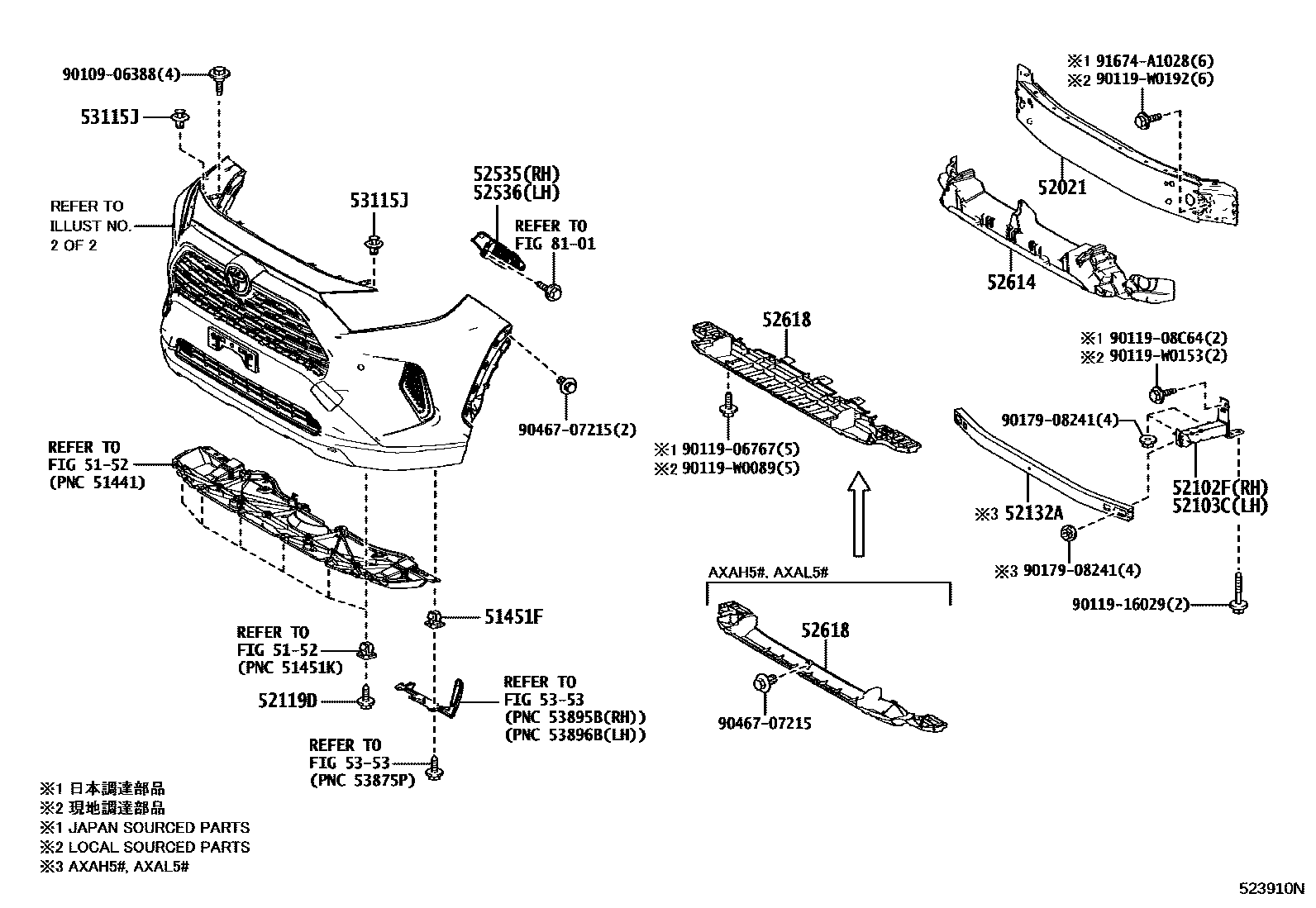

Toyota RAV4 (JPP) — FRONT BUMPER & BUMPER STAY

0001 1 0004 1 0007 1 0009 1 0011 1GR-S PACKAGE 0012 1GR-S PACKAGE

51451FGROMMET, NO.1

main90189-06237iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥100201811-202410

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42200iAXAA54..EUR;AXAH52..RHD..G..GEN¥17,000201811-202410

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,¥6,200201811-202410

main52102-42110iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)¥6,000201811-202310

52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR¥6,200201811-202410

main52103-42110iMXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA¥6,000201811-202310

52119DSCREW, NO.1

main90159-60477iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥70201811-202410

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR¥7,000201811-202410

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42050iAXAA54,MXAA5#..RUS¥2,400201811-202210

main52535-42050iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR¥2,400202310-202410

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42080iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥2,400202310-202410

NO PAINT REQ.

main52536-42080iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,400201811-202210

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0R130iAXAA54,MXAA5#..RUS201910-202203

main52614-42120iAXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);AXAH54..LHD..(G,M,P)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,AXAL5#..JPP..(G,M,P,X);AXAH5#,MXAA54.¥5,300201811-202410

main52614-42130iAXAA54..LHD..V..GEN;MXAA54..V..(GEN,SA);AXAA54,AXAH54,AXAL54..V..(ARL,EUR,GCC,SA)¥4,640201811-202410

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42060iAXAH54..RUS¥6,500201811-202410

main52618-42080iMXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA¥7,500201811-202310

53115JCLIP, RADIATOR GRILLE BRACKET

main90467-05063-C0iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

BLACK

sub90467-05063¥70

5353

8101

9010906388

main90109-06388¥70

9011906767

main90119-06767¥60

9011908C64

main90119-08C64¥90

9011916029

main90119-16029¥490

90119W0089

main90119-W0089¥90

90119W0153

main90119-W0153

90119W0192

main90119-W0192

9017908241

main90179-08241¥80

9046707215

main90467-07215¥80

91674A1028

main91674-A1028¥120

24 parts on this diagram · 6 diagrams in section
