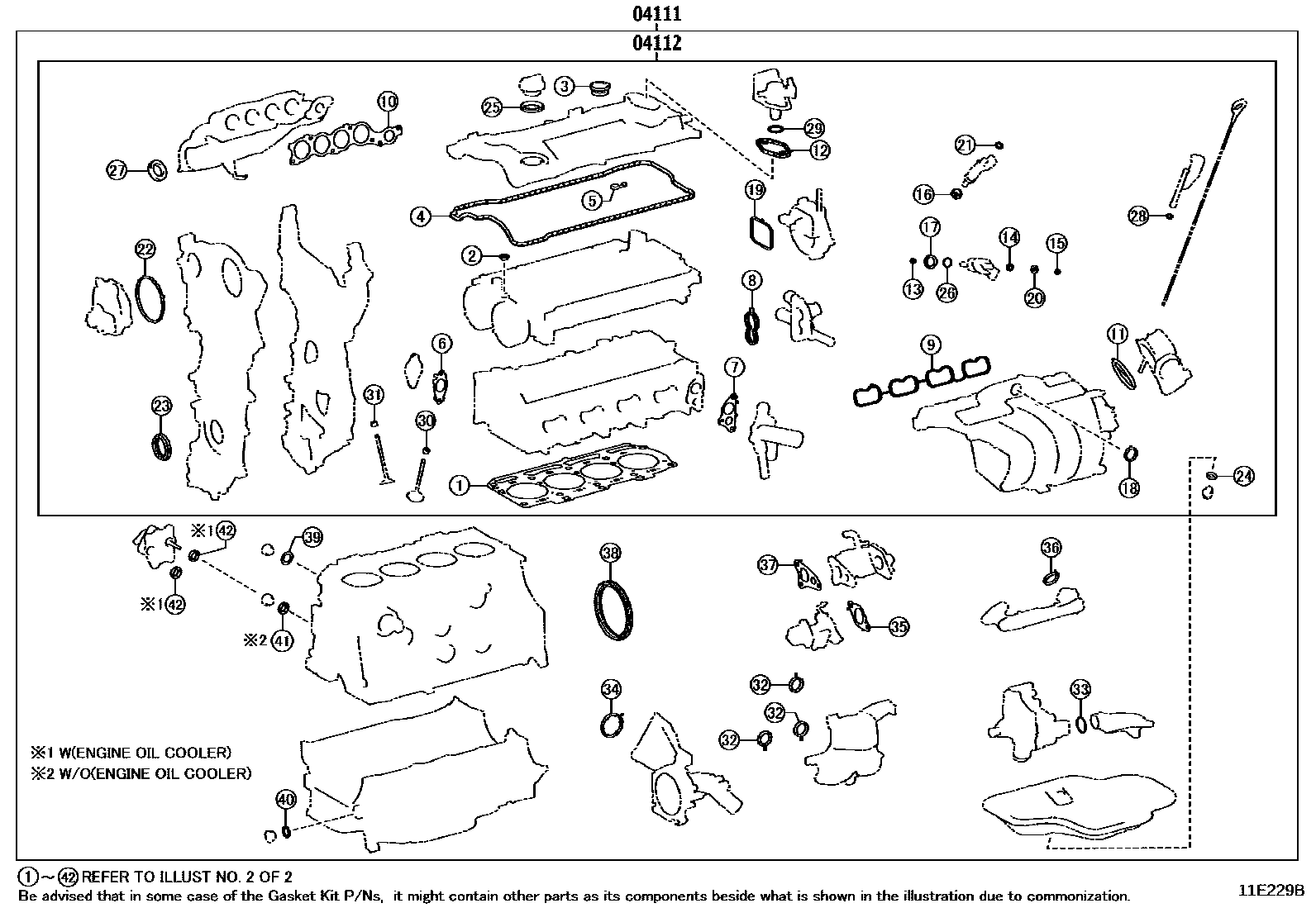

Toyota RAV4 (JPP) — ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-24160iM20AFKS..MXAA5#..JPP201811-202107

sub04111-24161

main04111-24161iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202107-202310

main04111-25180iA25AFKS..AXAA5#..GEN201811-202103

sub04111-25230

main04111-25210iA25AFXS..AXAH52..RHD..G..GEN¥27,800201811-202112

sub04111-25240

main04111-25230iA25AFKS..AXAA54..RUS201811-202112

sub04111-25231

main04111-25230iA25AFKS..AXAA54..RUS,SA202008-202112

EGYPT SPEC

sub04111-25231

main04111-25230iA25AFKS..AXAA5#..ARL,GCC,SA201811-202007

MEXICO SPEC

sub04111-25231

main04111-25230iA25AFKS..AXAA5#..ARL,GCC,SA201811-202007

ECUADOR SPEC

sub04111-25231

main04111-25230iA25AFKS..AXAA5#..ARL,GCC,SA201811-202007

COLOMBIA SPEC

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

REFER TO FIG.25-01

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

ECUADOR SPEC,REFER TO FIG.25-01

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

NEW ZEALAND SPEC

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE,REFER TO FIG.25-01

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

COLOMBIA SPEC,REFER TO FIG.25-01

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

PARAGUAY SPEC,REFER TO FIG.25-01

sub04111-25231

main04111-25230iA25AFKS..AXAA54..LHD..GEN;A25AFKS..AXAA52..LHD..(G,M)..GEN202008-202112

OCEANIA OTHERS SPEC

sub04111-25231

main04111-25231iA25AFKS..AXAA54..RUS202112-202203

main04111-25240iA25AFXS..AXAL5#..(G,M)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC);A25AFXS..AXAH5#,AXAL5#..LHD..X..EUR;A25AFXS..AXAH5#..(G,M)..(ARL,EUR,GCC)202008-202112

MOROCCO SPEC

sub04111-25241¥28,400

main04111-25240iA25AFXS..AXAH52..LHD..GEN201811-202112

PARAGUAY SPEC

sub04111-25241¥28,400

main04111-25240iA25AFXS..AXAH52..LHD..G..GEN201811-202007

MEXICO SPEC

sub04111-25241¥28,400

main04111-25240iA25AFXS..AXAH54..RUS201811-202111

sub04111-25241¥28,400

main04111-25251iA25AFKS..AXAA5#..JPP¥25,500202210-202310

main04111-25251iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)¥25,500202112-202210

EGYPT SPEC

main04111-25251iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..(M,V)..GCC¥25,500202112-202210

REFER TO FIG.25-01

main04111-25261iA25AFXS..AXAL5#;A25AFXS..AXAH5#..ARL,GCC,SA;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥25,900202112-202310

PARAGUAY SPEC

main04111-25261iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥25,900202310-202410

main04111-25290iA25AFXS..AXAH54..(M,X)..GCC¥25,200202112-202310

EGYPT SPEC

main04111-F2030iM20AFKS..MXAA5#..RUS201910-202012

sub04111-F2031

main04111-F2031iM20AFKS..MXAA5#..RUS202012-202110

main04111-F2032iM20AFKS..MXAA5#..RUS202110-202203

04112GASKET KIT, ENGINE VALVE GRIND

main04112-24090iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)¥24,100201811-202107

sub04112-24091¥21,900

main04112-24091iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥21,900202107-202310

main04112-25120iA25AFKS..AXAA5#..GEN201811-202103

sub04112-25170¥24,000

main04112-25150iA25AFXS..AXAH52..RHD..G..GEN¥24,200201811-202112

sub04112-25180¥24,200

main04112-25170iA25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..LHD..(G,M,V)..GEN¥24,000201811-202007

COLOMBIA SPEC

sub04112-25171¥21,700

main04112-25170iA25AFKS..AXAA5#..LHD..(G,M,X)..GEN¥24,000201811-202007

ECUADOR SPEC

sub04112-25171¥21,700

main04112-25170iA25AFKS..AXAA5#..LHD..GEN¥24,000201811-202007

MEXICO SPEC

sub04112-25171¥21,700

main04112-25170iA25AFKS..AXAA54..EUR¥24,000201811-202112

sub04112-25171¥21,700

main04112-25171iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)¥21,700202112-202310

main04112-25180iA25AFXS..AXAL5#..ARL;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR¥24,200201811-202111

sub04112-25181¥22,000

main04112-25180iA25AFXS..AXAH5#,AXAL5#..ARL,EUR,GCC¥24,200201811-202007

MEXICO SPEC

sub04112-25181¥22,000

main04112-25180iA25AFXS..AXAH5#,AXAL5#..ARL,EUR,GCC¥24,200201811-202112

PARAGUAY SPEC

sub04112-25181¥22,000

main04112-25180iA25AFXS..AXAL5#..(G,M)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC);A25AFXS..AXAH5#,AXAL5#..LHD..X..EUR;A25AFXS..AXAH5#..(G,M)..(ARL,EUR,GCC)¥24,200202008-202112

MOROCCO SPEC

sub04112-25181¥22,000

main04112-25181iA25AFXS..AXAL5#;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥22,000202112-202410

main04112-F2030iM20AFKS..MXAA5#..RUS201910-202012

sub04112-F2031

main04112-F2031iM20AFKS..MXAA5#..RUS202012-202110

main04112-F2032iM20AFKS..MXAA5#..RUS202110-202203

2 parts on this diagram · 6 diagrams in section
