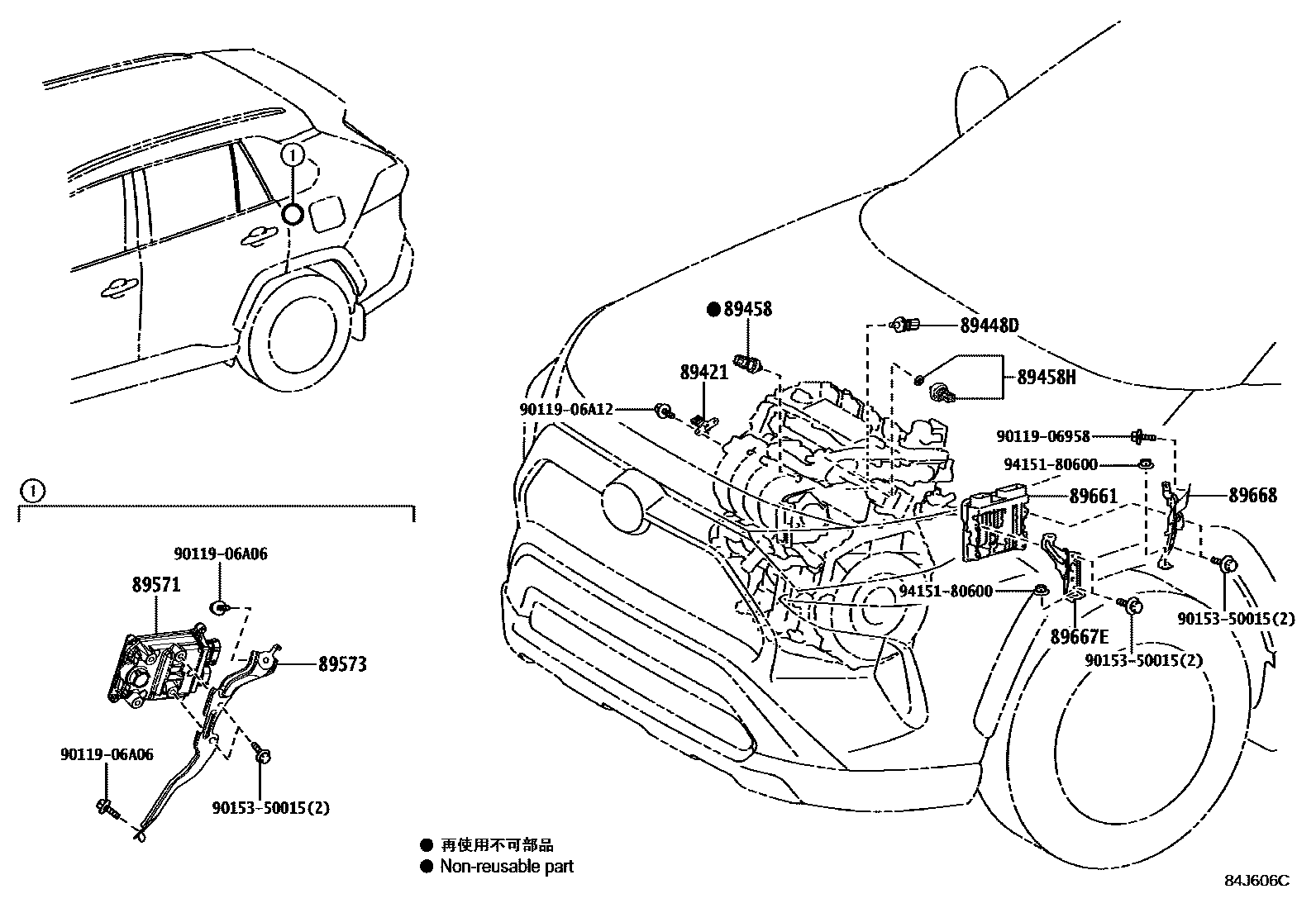

Toyota RAV4 (JPP) — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥5,900201811-202410

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥5,700201811-202410

89458SENSOR, FUEL PRESSURE

main89458-33030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥4,320201811-202410

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMXAA52..CVT;AXAA54..LHD..V;MXAA54..RHD..CVT;MXAA54..(M,X)..GCC;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..E¥4,760201811-202303

main89458-33042iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR¥4,320202304-202410

89571COMPUTER, FUEL PUMP CONTROL

main89571-12010iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP¥10,900201811-202111

main89571-48010iAXAA54,MXAA5#..RUS¥9,900202004-202410

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-42030iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥910201811-202410

89661COMPUTER, ENGINE CONTROL

main89661-0R840iMXAA54..CVT..RUS201910-202203

DENSO

main89661-0R850iMXAA52..CVT..RUS201910-202203

DENSO

main89661-0R860iMXAA54..6F..RUS201910-202203

DENSO

main89661-0R870iMXAA52..6F..RUS201910-202203

DENSO

main89661-0R880iAXAA54..RUS201910-202009

DENSO

main89661-0RB40iAXAA54..RUS202010-202203

DENSO

main89661-4A080iAXAA54..(M,V)..ARL201901-202007

DENSO TEN

main89661-4A080iAXAA54..(M,V)..ARL201901-202007

DENSO TEN,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4A090iAXAA52201811-202112

DENSO TEN

main89661-4A100iAXAA54..(M,V)..(GCC,GEN);AXAA54..(G,X)..(ARL,GCC,GEN,SA)201811-202112

DENSO TEN

main89661-4A130iMXAA52..RHD..CVT..EUR201910-201911

DENSO TEN

sub89661-4A131

main89661-4A131iMXAA52..RHD..CVT..EUR201911-202001

DENSO TEN

sub89661-4A132

main89661-4A131iMXAA52..LHD..CVT..EUR201911-202001

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

sub89661-4A132

main89661-4A132iMXAA52..RHD..CVT..EUR202002-202007

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89661-4A132iMXAA52..RHD..CVT..EUR202002-202007

DENSO TEN

main89661-4A150iMXAA52..RHD..CVT..EUR201811-201910

DENSO TEN

main89661-4A170iMXAA52..M..ARL;MXAA52..LHD..CVT..EUR201811-202007

DENSO TEN

main89661-4A190iMXAA54..CVT..EUR201811-202007

DENSO TEN

main89661-4A200iMXAA52..CVT..M..GEN;MXAA52..CVT..(G,X)..(ARL,GEN,SA)201901-202007

DENSO TEN

main89661-4A210iMXAA54..CVT..(GCC,GEN,SA)201811-202007

DENSO TEN

main89661-4A240iMXAA52..LHD..6F..EUR201811-202001

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

sub89661-4A241

main89661-4A240iMXAA52..RHD..6F..EUR201811-202001

DENSO TEN

sub89661-4A241

main89661-4A241iMXAA52..LHD..6F..EUR202002-202007

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89661-4A241iMXAA52..RHD..6F..EUR202002-202007

DENSO TEN

main89661-4A260iMXAA52..LHD..6F..M..EUR;MXAA52..6F..(G,X)..(ARL,EUR)201811-202007

DENSO TEN

main89661-4A330iAXAH54..G..GEN;AXAH52..LHD..GEN;AXAH54..LHD..M..GEN201811-202112

DENSO

main89661-4A360iMXAA54..6F..EUR201811-202007

DENSO TEN

main89661-4A370iMXAA52..6F..G..SA201901-202007

DENSO TEN

main89661-4A380iMXAA54..6F..G..GEN201901-202007

DENSO TEN

main89661-4A410iAXAH52..LHD..GEN;AXAH54..LHD..G..GEN201811-202007

DENSO,TAIWAN SPEC

main89661-4A410iAXAH5#..LHD..G..GEN201811-202112

DENSO,ARGENTINA SPEC

main89661-4A410iAXAH54..RUS201811-202112

DENSO

main89661-4A420iAXAH52..(G,X)..ARL;AXAH54..(M,X)..ARL201901-202112

DENSO,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4A420iAXAH52..(G,X)..ARL;AXAH54..(M,X)..ARL201901-202112

DENSO

main89661-4A430iAXAH52..M..ARL;AXAH54..(M,X)..GCC;AXAH54..G..(ARL,GCC)201901-202112

DENSO

main89661-4A430iAXAH54..LHD..EUR202008-202112

DENSO,IRAN SPEC

main89661-4A560iMXAA54..CVT..EUR202112-202210

DENSO TEN

main89661-4A570iMXAA52..CVT..EUR202112-202210

DENSO TEN

main89661-4A580iMXAA54..M..GCC;MXAA54..LHD..CVT..(G,V,X)..(GCC,GEN)202210-202310

DENSO TEN,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4A580iMXAA54..LHD..V202210-202310

DENSO TEN

main89661-4A580iMXAA54..LHD..V202210-202310

DENSO TEN,EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)

main89661-4A640iMXAA52..ARL202112-202310

DENSO TEN,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4A640iMXAA52..LHD..G202112-202310

DENSO TEN

main89661-4A640iMXAA52..CVT..ARL202112-202310

DENSO TEN,TAIWAN SPEC

main89661-4A640iMXAA52..CVT..ARL202112-202210

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main89661-4A640iMXAA52..CVT..ARL202112-202310

DENSO TEN,EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)

main89661-4A660iMXAA54..CVT..(GCC,GEN,SA)202112-202310

DENSO TEN

main89661-4A670iMXAA52..CVT..X..EUR202112-202310

DENSO TEN

main89661-4A670iMXAA52..CVT..X..SA202112-202210

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&IRAN SPEC

main89661-4A670iMXAA52..X..ARL202112-202310

DENSO TEN,PAPUA NEW GUINEA, SAMOA SPEC

main89661-4A670iMXAA52..X..ARL202112-202310

DENSO TEN,OCEANIA OTHERS SPEC

main89661-4A710iMXAA54..6F..EUR202112-202210

DENSO TEN

main89661-4A720iAXAA54..EUR201811-202004

DENSO

main89661-4A850iAXAH5#..RHD..EUR201811-202007

DENSO

main89661-4AA50iAXAL5#..RHD..EUR202005-202112

DENSO

main89661-4AA50iAXAL5#..LHD202005-202007

DENSO,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89661-4AA60iAXAL5#..ARL202005-202111

DENSO

main89661-4AA70iMXAA52..LHD..CVT..(G,X)..GEN202008-202112

DENSO TEN

main89661-4AA70iMXAA52..CVT..(G,X)..ARL202008-202112

DENSO TEN,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4AA70iMXAA52..CVT..(G,X)..ARL202008-202112

DENSO TEN,TAIWAN SPEC

main89661-4AA70iMXAA52..CVT..(G,X)..ARL202008-202112

DENSO TEN,ARGENTINA SPEC

main89661-4AB30iAXAH5#..LHD..EUR202008-202112

DENSO,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89661-4AB30iAXAH5#..RHD..(G,M)..EUR202008-202112

DENSO

main89661-4AB40iAXAL5#..LHD202005-202007

DENSO

main89661-4AC40iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

DENSO,*614

main89661-4AC50iAXAA54..(M,V)..ARL202008-202112

DENSO

main89661-4AC60iAXAA52..GCC202008-202112

DENSO

main89661-4AC70iAXAA54..G..ARL202008-202112

DENSO

main89661-4AC80iAXAL5#202310

DENSO,*614

main89661-4AC90iMXAA52..RHD..EUR202008-202112

DENSO TEN

main89661-4AC90iMXAA52..RHD..EUR202008-202112

DENSO TEN,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89661-4AD00iMXAA54..LHD..V..GEN202008-202112

DENSO TEN

main89661-4AD00iMXAA54..CVT..EUR202008-202112

DENSO TEN,TAIWAN SPEC

main89661-4AD20iMXAA54..(G,V)..(GEN,SA);MXAA54..CVT..(M,X)..(GCC,GEN)202008-202112

DENSO TEN

main89661-4AD30iMXAA52..LHD..CVT..(G,X)..EUR202008-202112

DENSO TEN,IRAN SPEC

main89661-4AD30iMXAA52..LHD..CVT..(G,X)..EUR202008-202112

DENSO TEN

main89661-4AD80iMXAA54..6F..EUR202008-202112

DENSO TEN

main89661-4AD90iMXAA52..6F..EUR202008-202112

DENSO TEN

main89661-4AE10iMXAA54..LHD..6F..GEN202008-202112

DENSO TEN

main89661-4AE20iMXAA52..6F..SA;MXAA52..LHD..6F..GEN202008-202112

DENSO TEN

main89661-4AE60iMXAA52..6F..EUR202112-202210

DENSO TEN

main89661-4AE90iMXAA54..6F..GEN202112-202310

DENSO TEN

main89661-4AF00iMXAA52..6F..SA202112-202310

DENSO TEN

main89661-4AF70iAXAH54..P..GEN202112-202310

DENSO,OTHER LATIN-NCAP COUNTRY

main89661-4AF70iAXAH54..G..GEN;AXAH52..(G,M,P)..GEN202112-202310

DENSO

main89661-4AF90iAXAH5#..GCC202112-202310

DENSO

main89661-4AF90iAXAH5#..ARL202112-202310

DENSO,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4AG00iAXAH5#..GCC,SA202210-202310

DENSO,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&EXCEPT WVTA COUNTRY&IRANSPEC

main89661-4AG00iAXAH5#..GCC,SA202112-202310

DENSO,PAPUA NEW GUINEA, SAMOA SPEC

main89661-4AG00iAXAH54..LHD..(G,M,X)..EUR202112-202310

DENSO

main89661-4AG00iAXAH54..LHD..(G,M,X)..EUR202112-202310

DENSO,OCEANIA OTHERS SPEC

main89661-4AG00iAXAH52..M..ARL;AXAH54..G..ARL202112-202210

DENSO,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&IRAN SPEC

main89661-4AG10iAXAH5#..EUR202112-202310

DENSO

main89661-4AG20iAXAH52..X..GEN;AXAH54..P..GEN¥71,000202210-202310

DENSO,TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS)

main89661-4AG20iAXAH52..X..GEN;AXAH54..P..GEN¥71,000202112-202310

DENSO

main89661-4AG20iAXAH52..X..GEN;AXAH54..P..GEN¥71,000202112-202310

DENSO,TAIWAN SPEC

main89661-4AG40iAXAL5#202112-202310

DENSO

main89661-4AJ30iAXAA54..ARL202112-202411

DENSO,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4AJ30iAXAA54..ARL202112-202411

DENSO

main89661-4AJ30iAXAA54..LHD..GEN202112-202210

DENSO,COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4AJ30iAXAA54..LHD..GEN202112-202210

DENSO,ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4AJ40iAXAA52202112-202411

DENSO

main89661-4AJ50iAXAA54..V..ARL202112-202411

DENSO,OCEANIA OTHERS SPEC

main89661-4AJ50iAXAA54..GCC,GEN,SA202210-202411

DENSO,PAPUA NEW GUINEA, SAMOA SPEC

main89661-4AJ50iAXAA54..ARL202112-202411

DENSO

main89661-4AL60iMXAA54..CVT..EUR202210

DENSO TEN

main89661-4AL70iMXAA52..CVT..EUR202210

DENSO TEN

main89661-4AM50iMXAA54..6F..EUR202210

DENSO TEN

main89661-4AM60iMXAA52..6F..EUR202210

DENSO TEN

main89661-4AV50iAXAA54..GCC202411

DENSO,EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)

main89661-4AV50iAXAA54..ARL202411

DENSO

main89661-4AV60iAXAA54..M..ARL202411

DENSO,OCEANIA OTHERS SPEC

main89661-4AV60iAXAA54..GCC,GEN,SA202411

DENSO

main89661-4AV60iAXAA54..GCC,GEN,SA202411

DENSO,PAPUA NEW GUINEA, SAMOA SPEC

main89661-4AV70iAXAA52202411

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)¥800201811-202310

main89667-42080iAXAH54..RUS¥700201811-202405

main89667-42081iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR¥650202406-202410

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42080iMXAA5#..6F..G..(GEN,SA)¥1,340201811-202310

main89668-42100iAXAH54..RUS¥910201811-202410

9011906958

main90119-06958¥60

9011906A06

main90119-06A06¥60

9011906A12

main90119-06A12¥60

9015350015

main90153-50015¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 3 diagrams in section
