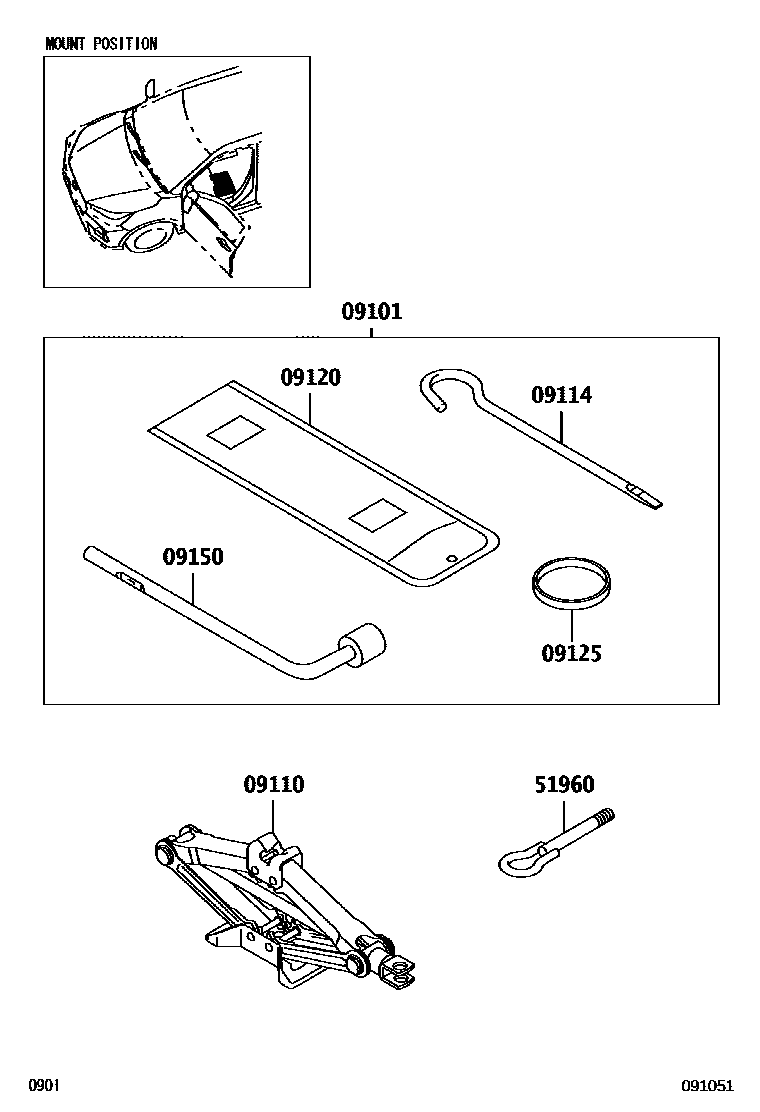

Toyota RAIZE — STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

09110JACK ASSY

main09111-BZ300iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ060iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

09120BAG, TOOL

main09120-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

09125BAND, TOOL BAG

main09125-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥210202104-202608

09150WRENCH, HUB NUT BOX

main09151-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

51960HOOK ASSY, FRONT

main51960-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

7 parts on this diagram · 2 diagrams in section
