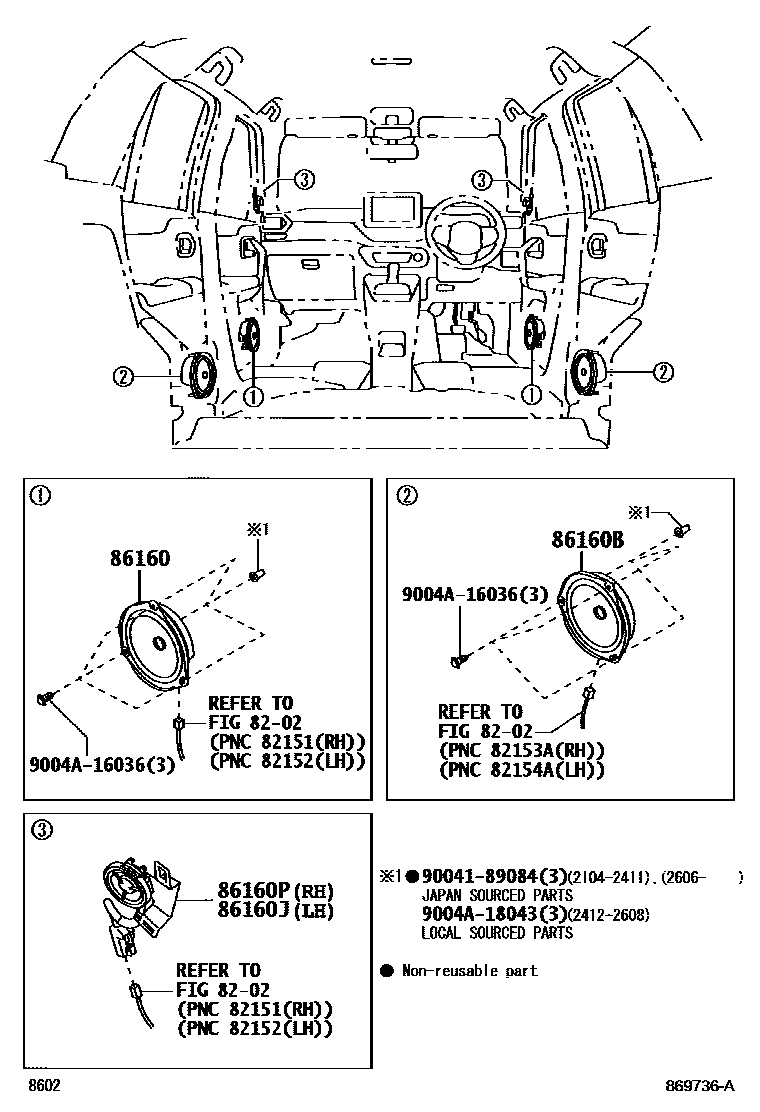

Toyota RAIZE — SPEAKER

8202

86160SPEAKER ASSY, FRONT NO.1

main86160-BZ180iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥5,300202104-202608

86160BSPEAKER ASSY, REAR

main86160-BZ180iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥5,300202104-202608

86160JSPEAKER ASSY, FRONT NO.3

main86160-BZ300iA251..V;A250..GEN,IDN,PHL202104-202608

86160PSPEAKER ASSY, FRONT NO.2

main86160-BZ290iA251..V;A250..GEN,IDN,PHL202104-202608

9004189084

main90041-89084¥160

9004A16036

main9004A-16036¥110

9004A18043

main9004A-18043

8 parts on this diagram · 1 diagram in section
