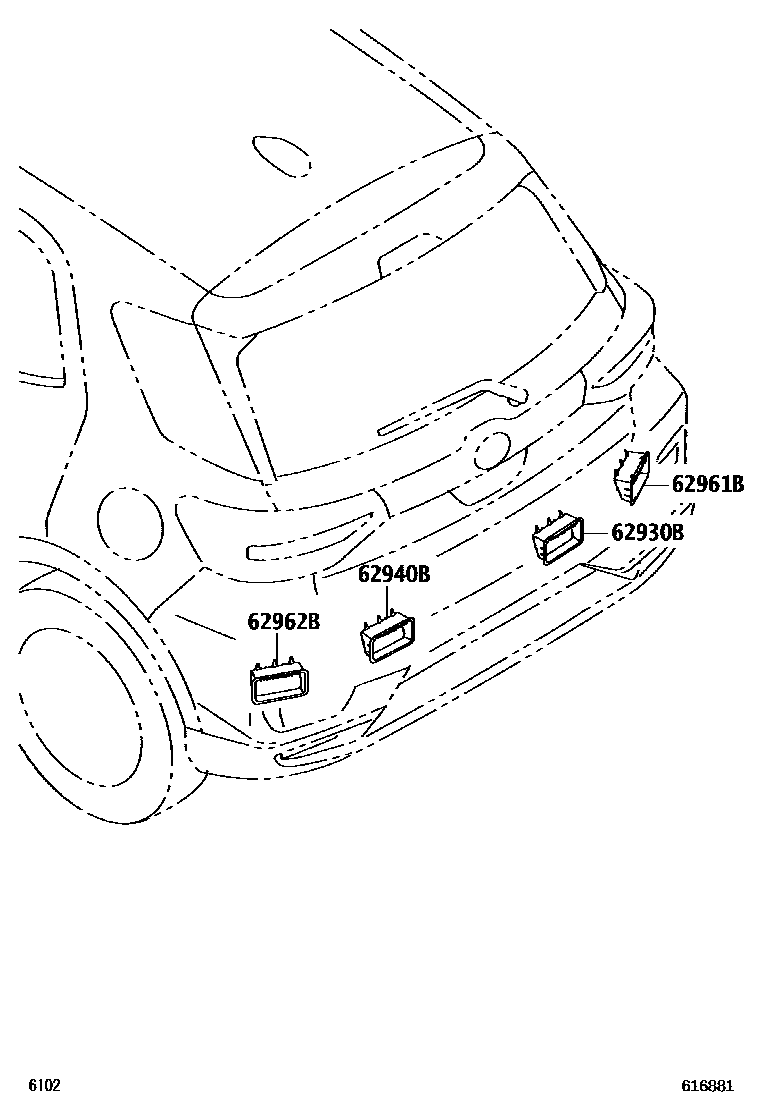

Toyota RAIZE — ROOF SIDE VENTILATOR

62930BDUCT ASSY, QUARTER VENT, RH

main62930-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

62940BDUCT ASSY, QUARTER VENT, LH

main62930-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

62961BDUCT, QUARTER VENT, NO.2 RH

main62930-BZ150iA25#202104-202308

sub62930-BZ151

main62930-BZ151iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202309-202608

62962BDUCT, QUARTER VENT, NO.2 LH

main62930-BZ150iA25#202104-202308

sub62930-BZ151

main62930-BZ151iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202309-202608

4 parts on this diagram · 1 diagram in section
