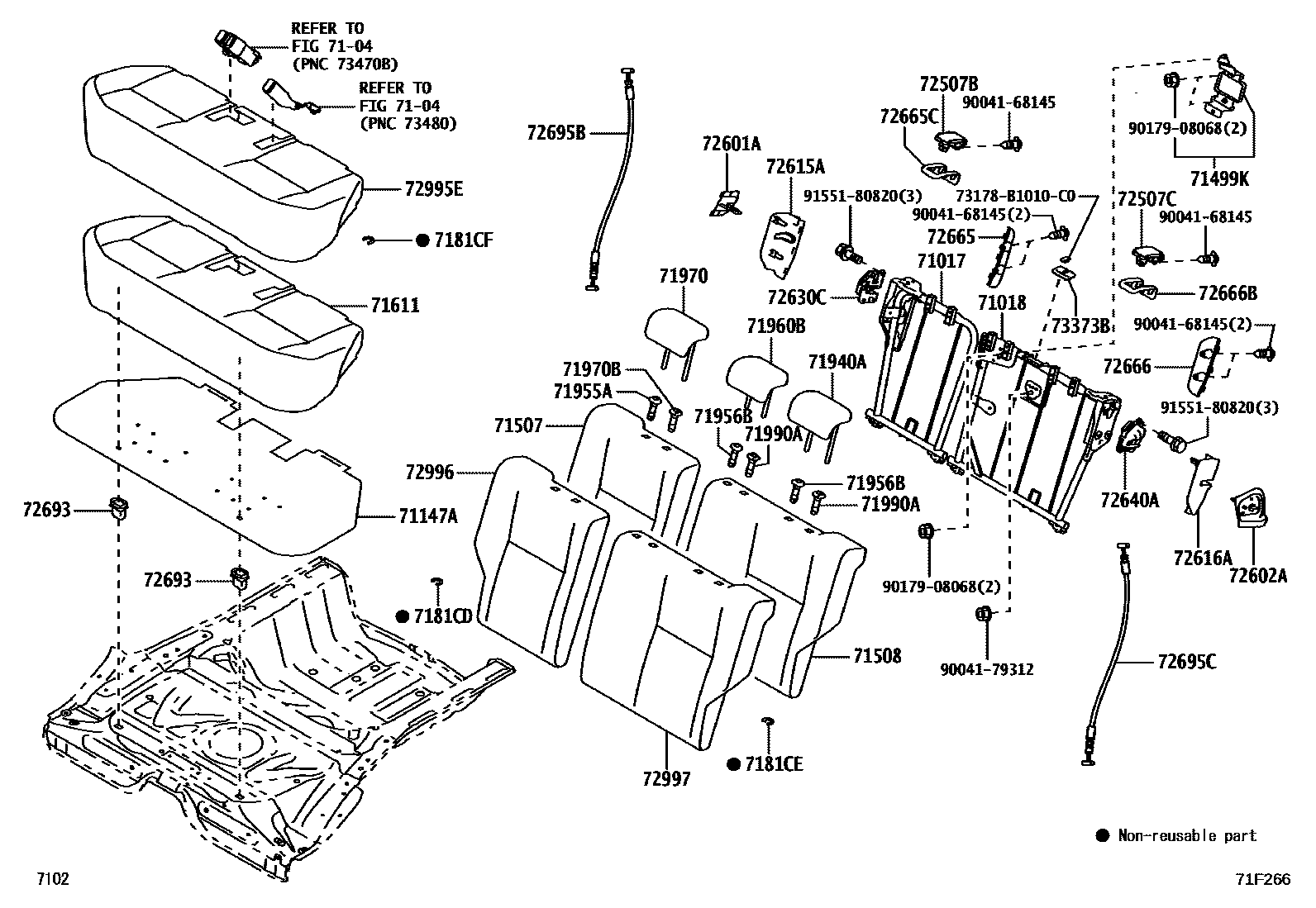

Toyota RAIZE — REAR SEAT & SEAT TRACK

0001 1 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-B1180iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥7,700202104-202608

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-BZ320iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

7104

71147ASILENCER, REAR SEAT SPRING

main71147-B1230iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥560202104-202608

71499KDAMPER, REAR SEAT CUSHION SPRING, LH

main71499-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

71507PAD SUB-ASSY, REAR SEATBACK, RH

main71507-BZ490iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

71508PAD SUB-ASSY, REAR SEATBACK, LH

main71508-BZ350iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

71611PAD, REAR SEAT CUSHION

main71503-BZ570iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

7181CDRING, HOG, SMALL (FOR REAR SEATBACK)

main9004A-46143iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥80202104-202608

7181CERING, HOG, SMALL (FOR REAR SEATBACK)

main9004A-46143iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥80202104-202608

7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)

main9004A-46143iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥80202104-202608

71940AHEADREST ASSY, REAR SEAT

main71940-BZF40-C3iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

-,TRIM2#

main71940-BZF50-C3iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

71955ASUPPORT, REAR SEAT HEADREST

main71931-B2030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71931-B2030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-BZ050-C3iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

-,TRIM2#

main71960-BZ060-C3iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

71970HEADREST ASSY, REAR SEAT

main71940-BZF40-C3iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

-,TRIM2#

main71940-BZF50-C3iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

71970BSUPPORT ASSY, REAR SEAT HEADREST, RH

main71930-B2030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

71990ASUPPORT ASSY, REAR SEAT HEADREST, LH

main71930-B2030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH

main72507-B1040-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72507CHANDLE SUB-ASSY, RECLINING RELEASE, LH

main72507-B1060-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-BZ020-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72616-BZ020-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-B1030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥2,320202104-202608

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-B1030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥2,320202104-202608

72665COVER, REAR SEATBACK LOCK, RH

main72665-B1030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72665CCOVER, REAR SEAT LOCK, RH

main72665-B1040-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72666COVER, REAR SEATBACK LOCK, LH

main72666-B1020-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72666BCOVER, REAR SEAT LOCK, LH

main72665-B1040-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-B1010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥220202104-202608

72695BCABLE, REAR SEAT LOCK CONTROL, RH

main72695-B1030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥1,370202104-202608

72695CCABLE, REAR SEAT LOCK CONTROL, LH

main72695-B1030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥1,370202104-202608

72995ECOVER, REAR SEAT CUSHION

main71075-BZL90-C2iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

main71075-BZM00-C3iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

72996COVER, REAR SEATBACK, RH

main71077-BZL00-C4iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

main71077-BZL10-C4iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

72997COVER, REAR SEATBACK, LH

main71078-BZE90-C4iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

main71078-BZF00-C4iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

73373BCOVER, REAR NO.1 SEAT SHOULDER BELT

main73373-B1030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

73178B1010C0HANGER, FRONT SEAT LAP BELT, RH

main73178-B1010C0

9004168145

main90041-68145¥110

9004179312

main90041-79312¥190

9017908068

main90179-08068¥100

9155180820

main91551-80820¥80

42 parts on this diagram · 2 diagrams in section
