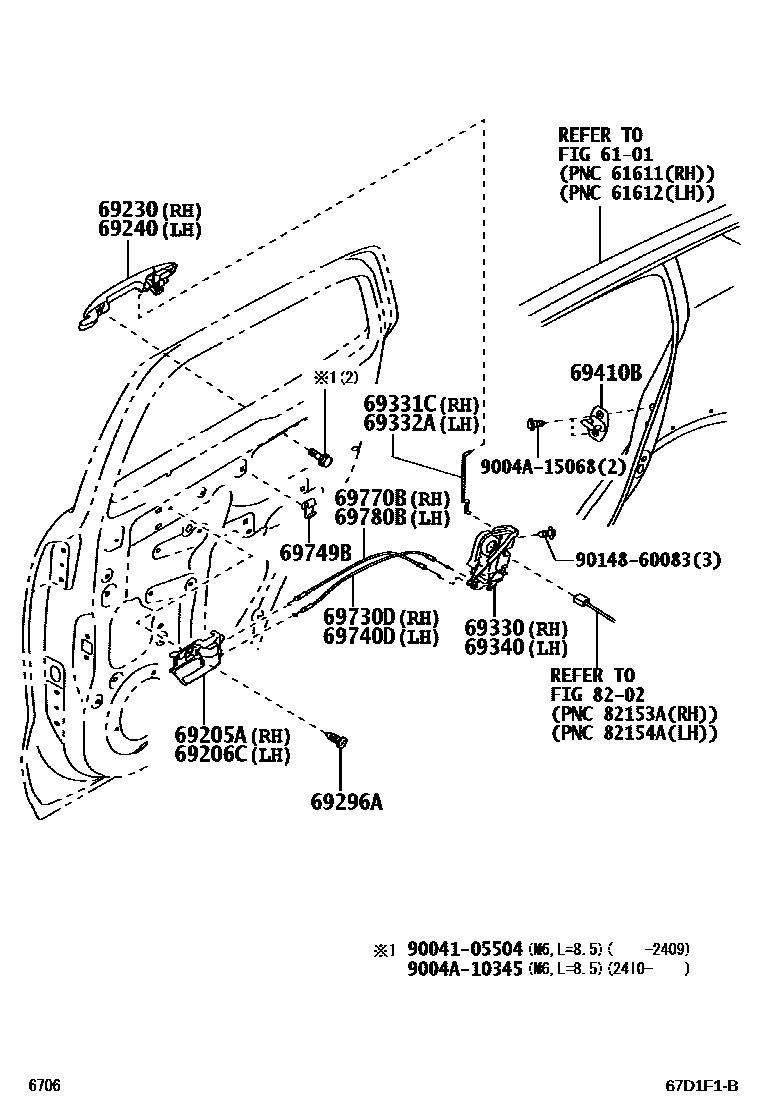

Toyota RAIZE — REAR DOOR LOCK & HANDLE

6101

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-BZ150-C0iA251..5F..L;A251..X..PHL;A251..L..GCC202108-202608

BLACK,TRIM2#

main69270-BZ160-C0iA250;A251..V..PHL;A251..(V,X)..(CHL,GCC,GEN,IDN)202104-202608

BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-BZ150-C0iA251..5F..L;A251..X..PHL;A251..L..GCC202108-202608

BLACK,TRIM2#

main69280-BZ160-C0iA250;A251..V..PHL;A251..(V,X)..(CHL,GCC,GEN,IDN)202104-202608

BLACK,TRIM2#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-BZ480-A0iA250..V..GCC202110-202608

WHITE PEARL SE.,W25 ,XJ5

main69210-BZ480-A0iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

WHITE PEARL SE.,W25

main69210-BZ480-A1iA251..IDN;A250..V..GCC202104-202608

WHITE,W09 ,XJ7

main69210-BZ480-A1iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

WHITE,W09

main69210-BZ480-B0iA251..IDN;A250..V..GCC202104-202608

SILVER ME.,S28 ,XK4

main69210-BZ480-B0iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

SILVER ME.,S28

main69210-BZ480-B2iA251..5F;A250..GCC;A251..CVT..X;A251..L..GCC202104-202608

GRAY ME.,1G3

main69210-BZ480-C0iA251..5F;A250..GCC;A251..CVT..X;A251..L..GCC202104-202608

BLACK,X13

main69210-BZ480-D1iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

RED,R40

main69210-BZ480-D1iA251..IDN;A250..V..GCC202104-202608

RED,R40 ,XJ9

main69210-BZ480-F0iA251..IDN;A250..V..GCC202104-202608

YELLOW SE.,XK1 ,Y13

main69210-BZ480-F0iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

YELLOW SE.,Y13

main69210-BZ480-J1iA251..IDN;A250..V..GCC202104-202608

TURQUOISE M.M.,B86 ,XJ8

main69210-BZ480-J1iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

TURQUOISE M.M.,B86

main69210-BZ510iA251..V;A250..GEN,IDN,PHL202104-202608

PLATED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-BZ470-A0iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

WHITE PEARL SE.,W25

main69220-BZ470-A0iA250..V..GCC202110-202608

WHITE PEARL SE.,W25 ,XJ5

main69220-BZ470-A1iA251..IDN;A250..V..GCC202104-202608

WHITE,W09 ,XJ7

main69220-BZ470-A1iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

WHITE,W09

main69220-BZ470-B0iA251..IDN;A250..V..GCC202104-202608

SILVER ME.,S28 ,XK4

main69220-BZ470-B0iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

SILVER ME.,S28

main69220-BZ470-B2iA251..5F;A250..GCC;A251..CVT..X;A251..L..GCC202104-202608

GRAY ME.,1G3

main69220-BZ470-C0iA251..5F;A250..GCC;A251..CVT..X;A251..L..GCC202104-202608

BLACK,X13

main69220-BZ470-D1iA251..IDN;A250..V..GCC202104-202608

RED,R40 ,XJ9

main69220-BZ470-D1iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

RED,R40

main69220-BZ470-F0iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

YELLOW SE.,Y13

main69220-BZ470-F0iA251..IDN;A250..V..GCC202104-202608

YELLOW SE.,XK1 ,Y13

main69220-BZ470-J1iA251..IDN;A250..V..GCC202104-202608

TURQUOISE M.M.,B86 ,XJ8

main69220-BZ470-J1iA251..L..GCC;A251..5F..(CHL,GEN,PHL);A25#..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

TURQUOISE M.M.,B86

main69220-BZ500iA251..V;A250..GEN,IDN,PHL202104-202608

PLATED

69296ASCREW, DOOR INSIDE HANDLE

main9004A-16093iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69330LOCK ASSY, REAR DOOR, RH

main69330-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69331CROD, REAR DOOR LOCK OPEN, RH

main69331-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69332AROD, REAR DOOR LOCK OPEN, LH

main69332-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69340LOCK ASSY, REAR DOOR, LH

main69340-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥1,040202104-202608

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69749BCLAMP, REAR DOOR LOCK LINK

main69749-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-BZ160iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8202

9004105504

main90041-05504¥110

9004A10345

main9004A-10345

9004A15068

main9004A-15068

9014860083

main90148-60083¥60

21 parts on this diagram · 1 diagram in section
