Toyota RAIZE — METER

0001 1 0002 1 0003 1 0004 1 0005 1

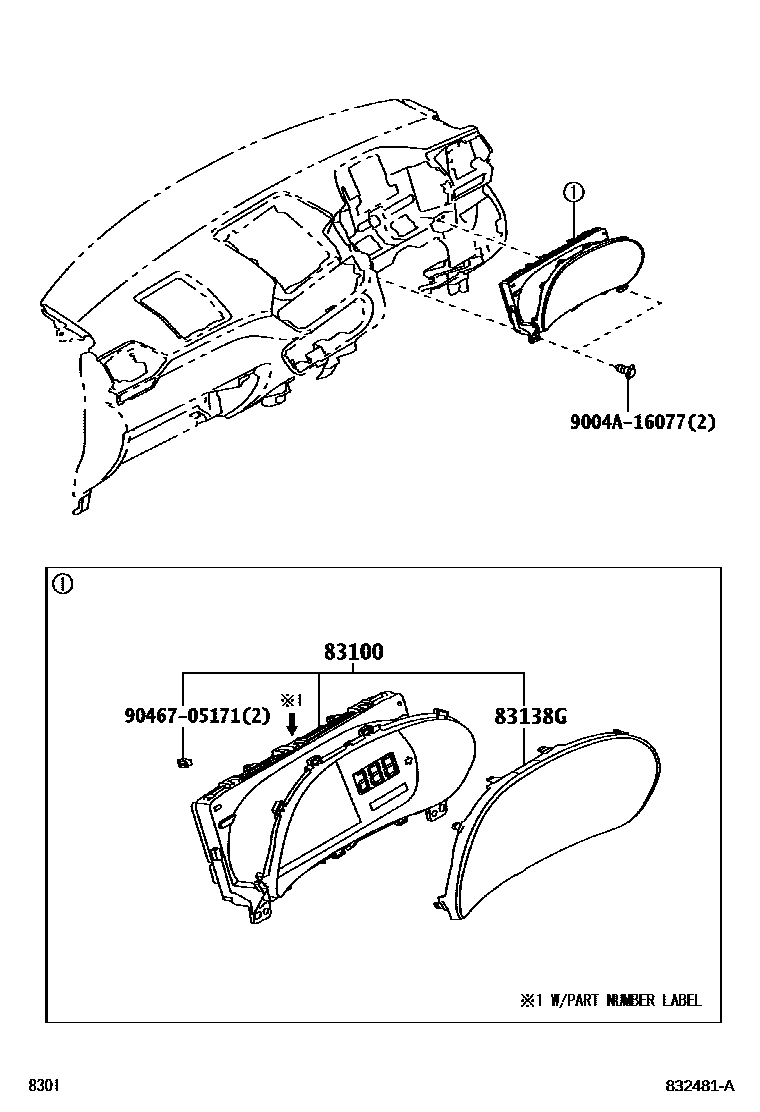

83100METER ASSY, COMBINATION

main83800-BYQ80iA251..RHD..5F..GEN202108-202607

CONTINENTAL

main83800-BYQ90iA251..LHD..5F..X202108-202608

CONTINENTAL

main83800-BYR00iA251..RHD..CVT..GEN202108-202607

CONTINENTAL

main83800-BYR10iA251..LHD..CVT..X..(CHL,GEN,PHL)202108-202608

CONTINENTAL

main83800-BYR20iA250..RHD..5F;A251..5F..IDN202104-202203

DENSO,W/PART NUMBER LABEL

sub83800-BYR21

main83800-BYR21iA250..RHD..5F;A251..5F..IDN202203-202607

DENSO,W/PART NUMBER LABEL

main83800-BYR30iA250..LHD..5F202108-202203

DENSO,W/PART NUMBER LABEL

sub83800-BYR31

main83800-BYR31iA250..LHD..5F202203-202208

DENSO,W/PART NUMBER LABEL

main83800-BYR32iA250..LHD..5F202208-202607

DENSO,W/PART NUMBER LABEL

main83800-BYR40iA250..RHD..CVT;A251..CVT..IDN202104-202203

DENSO,W/PART NUMBER LABEL

sub83800-BYR41

main83800-BYR41iA250..RHD..CVT;A251..CVT..IDN202203-202607

DENSO,W/PART NUMBER LABEL

main83800-BYR50iA25#..LHD..CVT..V..(CHL,GEN,PHL)202108-202203

DENSO,W/PART NUMBER LABEL

sub83800-BYR51

main83800-BYR51iA25#..LHD..CVT..V..(CHL,GEN,PHL)202203-202208

DENSO,W/PART NUMBER LABEL

main83800-BYR52iA25#..LHD..CVT..V..(CHL,GEN,PHL)202208-202608

DENSO,W/PART NUMBER LABEL

main83800-BYR60iA25#..GCC202110-202608

CONTINENTAL

main83800-BYU40iA251..5F..L202108-202608

DENSO

83138GGLASS, COMBINATION METER

main83852-B1050iA250..GCC;A251..L..GCC;A251..X..(CHL,GCC,GEN,PHL)¥1,350202108-202608

main83852-BZ220iA251..5F..L202108-202608

main83852-BZ230iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

9004A16077

main9004A-16077

9046705171

main90467-05171¥60

4 parts on this diagram · 5 diagrams in section
