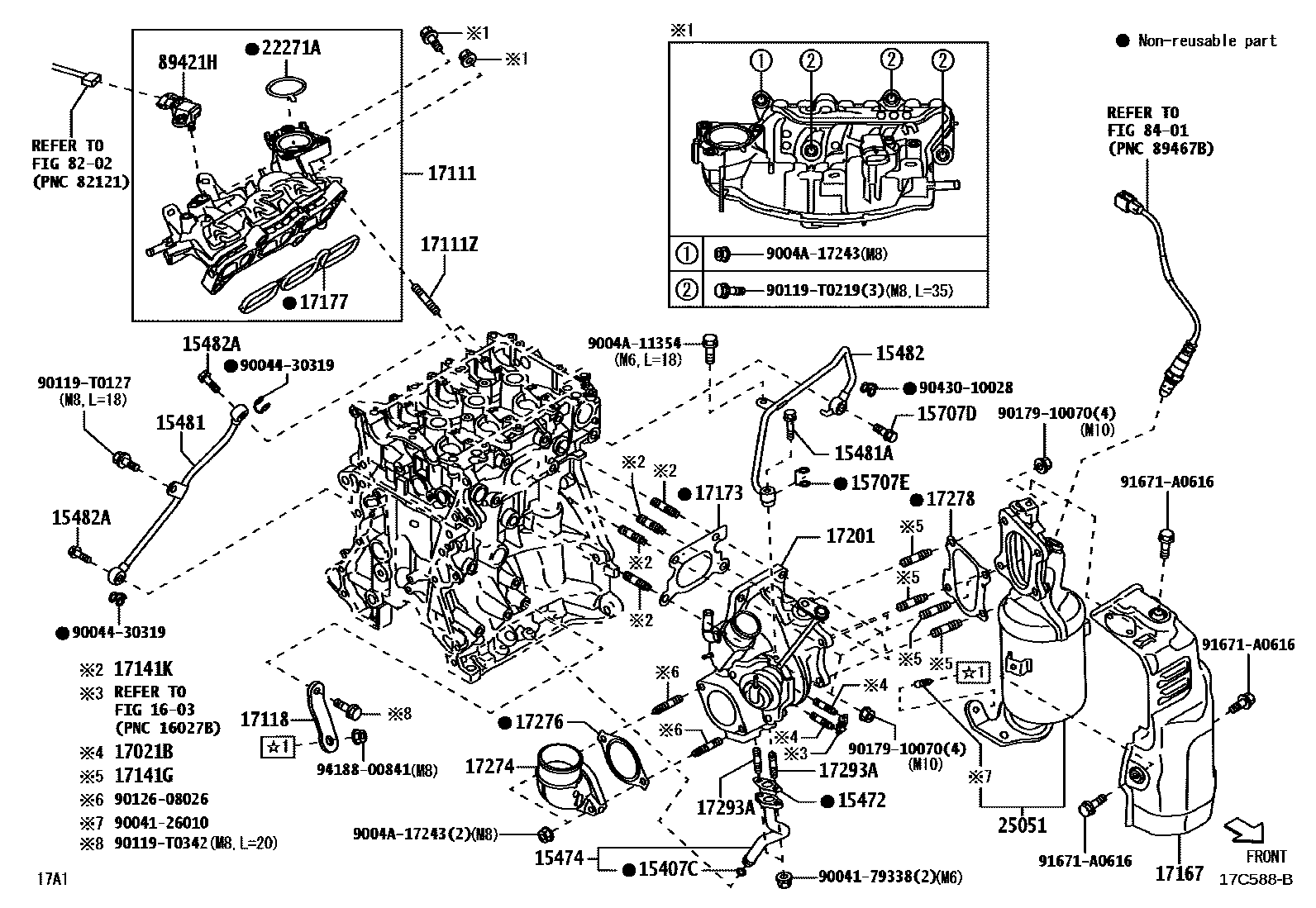

Toyota RAIZE — MANIFOLD
15407CRING, O(FOR TURBO OIL PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15481PIPE, TURBO OIL, NO.1
15481ABOLT, UNION, NO.1
M8,L=33.5
M8,L=33.5
15482PIPE, TURBO OIL, NO.2
15482ABOLT, UNION, NO.2
M8,L=25.5
M8,L=25.5
15707DBOLT, UNION(FOR OIL PIPE)
M10,L=25
M10,L=25
15707EGASKET(FOR OIL PIPE)
1603
17021BBOLT, STUD
17111MANIFOLD, INTAKE
sub17120-BZ200
main17120-BZ200iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
main17118-B1080iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202410-202608
17141GBOLT, STUD(FOR TURBOCHARGER)
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
main90041-26010iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)¥190202104-202608
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-BZ070iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608
17201TURBOCHARGER SUB-ASSY
17274ELBOW, COMPRESSOR INLET
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17293ABOLT, STUD(FOR TURBOCHARGER STAY)
22271AGASKET, THROTTLE BODY
main22271-BZ060iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
sub25051-BZ300
sub25051-BZ240
main25051-BZ300iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608
8202
8401
89421HSENSOR, VACUUM
9004126010
9004179338
9004430319
9004A11354
main9004A-11354
9004A17243
main9004A-17243
90119T0127
main90119-T0127
90119T0219
main90119-T0219
90119T0342
main90119-T0342
9012608026
9017910070
9043010028
91671A0616
9418800841
42 parts on this diagram · 4 diagrams in section
