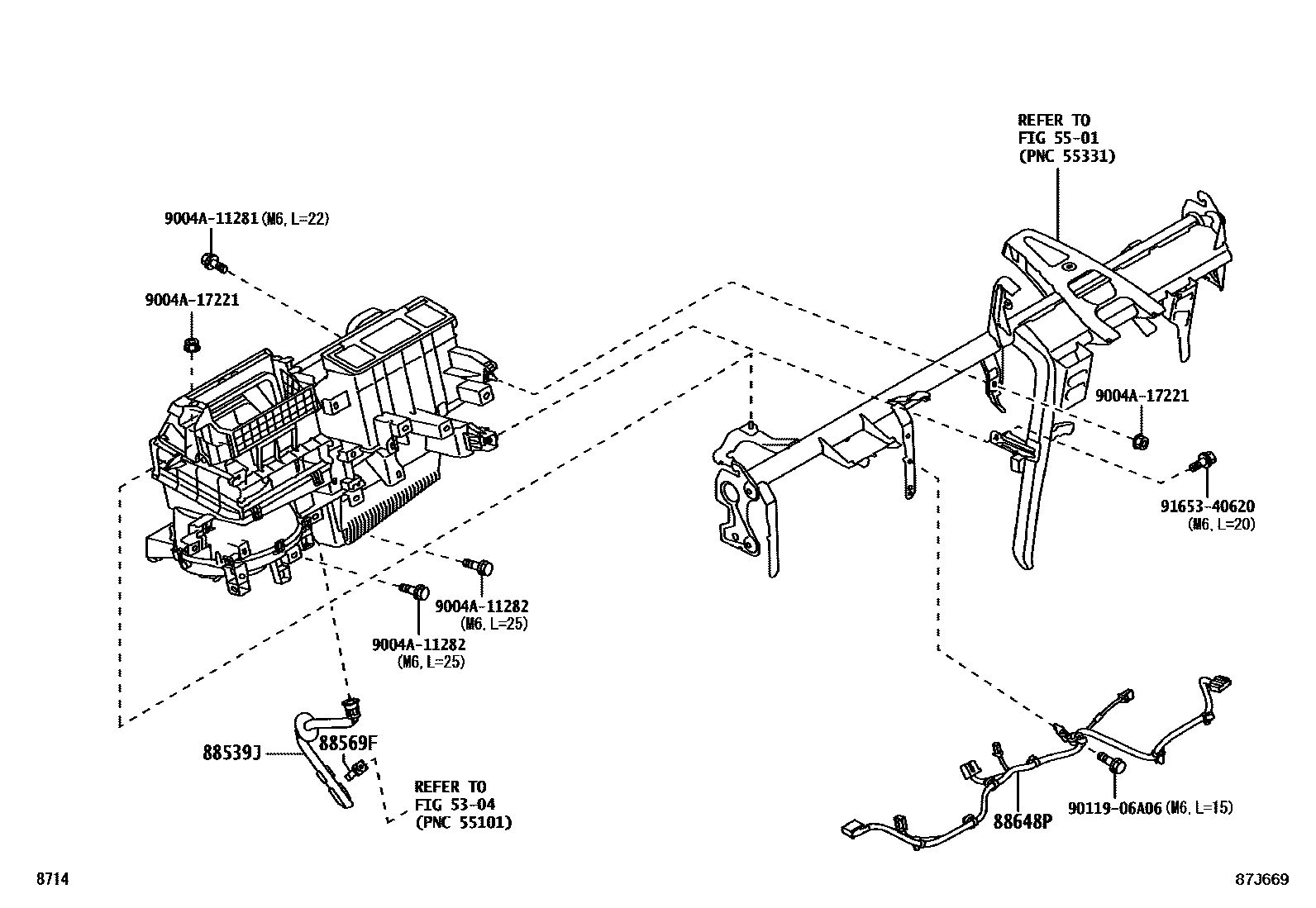

Toyota RAIZE — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1MANUAL 0005 1AUTO 0006 1MANUAL 0008 1AUTO 0009 1MANUAL 0010 1AUTO 0011 1MANUAL 0012 1AUTO

5304

5501

88539JHOSE, DRAIN COOLER

main88539-BZ450iA25#..RHD202104-202607

main88539-BZ460iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

88569FCLAMP

mainC8899B2010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88648PWIRE,AIR CONDITIONER,NO.1

main88648-BZ050iA25#..X..IDN202104-202606

main88648-BZ060iA250..V..IDN202104-202606

main88648-BZ070iA251..RHD..GEN202108-202607

main88648-BZ080iA250..RHD..GEN202108-202607

main88648-BZ200iA250..GCC;A251..LHD..CVT..X..GEN;A251..LHD..5F..(CHL,GEN);A251..CVT..(L,X)..(CHL,GCC)202108-202608

main88648-BZ210iA25#..LHD..V..(CHL,GEN)202108-202608

main88648-BZ220iA251..X..PHL202108-202607

main88648-BZ390iA25#..V..PHL202108-202607

9004A11281

main9004A-11281

9004A11282

main9004A-11282

9004A17221

main9004A-17221

9011906A06

main90119-06A06¥60

9165340620

main91653-40620¥60

10 parts on this diagram · 11 diagrams in section
