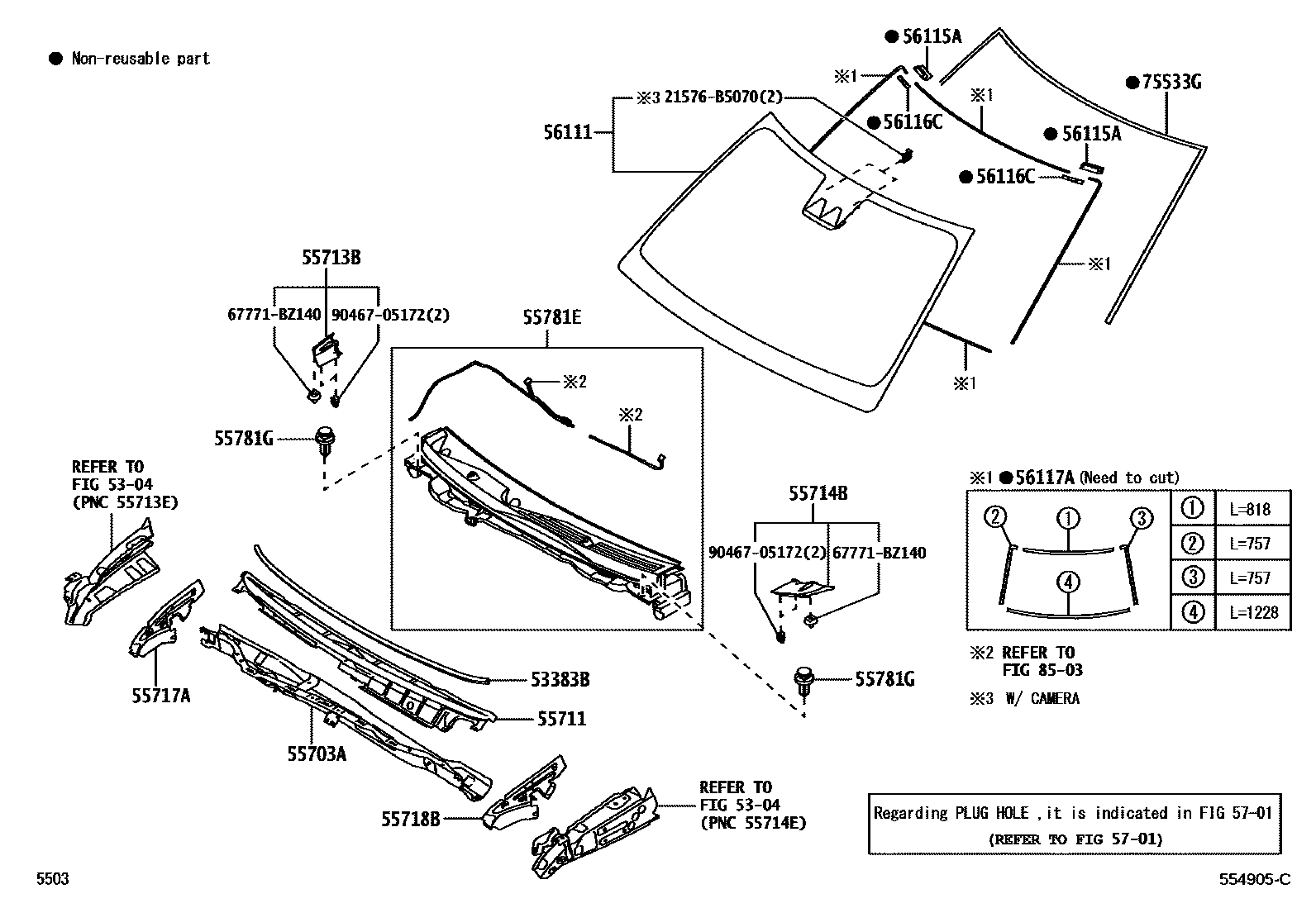

Toyota RAIZE — COWL PANEL & WINDSHIELD GLASS

5304

53383BSEAL, HOOD TO COWL TOP

main53383-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ710iA250..RHD;A251..RHD..CVT202104-202607

main55703-BZ720iA251..RHD..5F202104-202607

main55703-BZ730iA250..LHD;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main55703-BZ740iA251..LHD..5F202108-202608

55711PANEL, COWL TOP, OUTER

main55701-BZ200iA25#..RHD202104-202607

main55701-BZ240iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55717APANEL, COWL TOP SIDE, INNER RH

main55717-BZ040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ150iA25#..RHD202104-202607

main55708-BZ160iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

55781GCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46323iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥170202104-202608

56111GLASS, WINDSHIELD

main56111-BZ730iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

MULIA

main56111-BZD00iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

ASAHIMAS

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥210202104-202608

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥210202104-202608

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ240iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

L=3560

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8503

21576B5070CLIP, PUMP STRAINER

main21576-B5070¥120

67771BZ140WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-BZ140

9046705172

main90467-05172¥60

20 parts on this diagram · 1 diagram in section
