Toyota RAIZE — CLUTCH MASTER CYLINDER

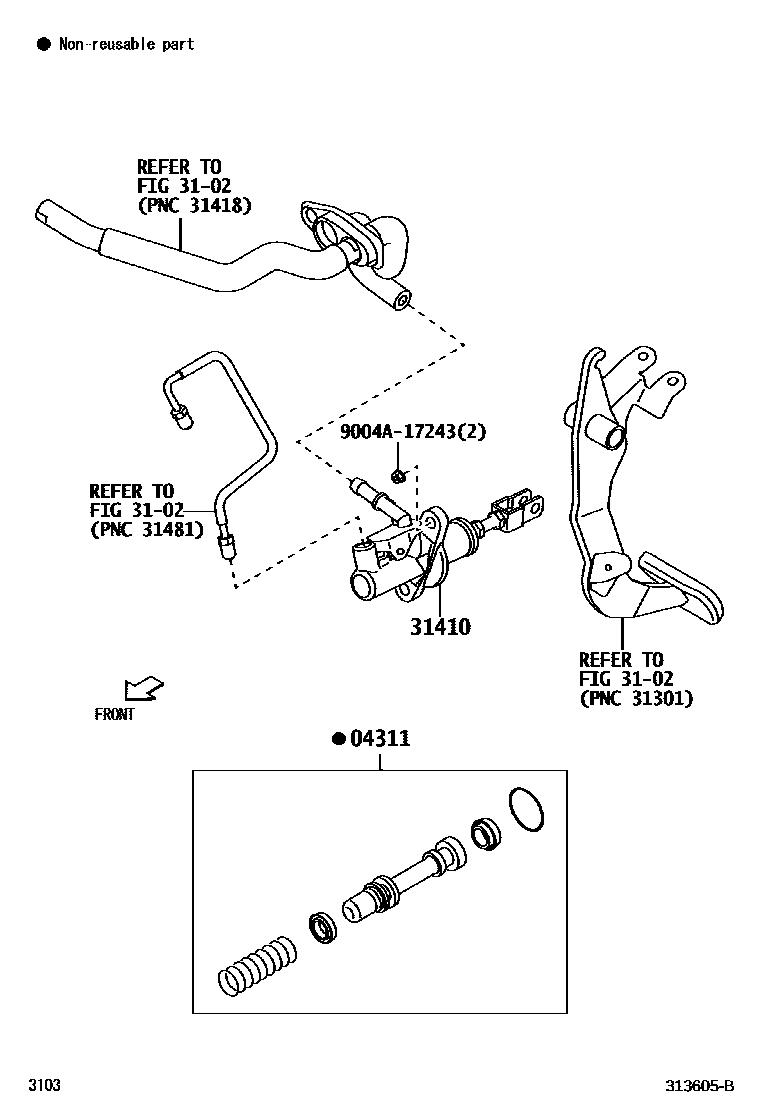

Parts diagram

04311CYLINDER KIT, CLUTCH MASTER

main04311-BZ020i202104-202607

3102

31410CYLINDER ASSY, CLUTCH MASTER

main31420-BZ040i202104-202607

9004A17243

main9004A-17243

4 parts on this diagram · 1 diagram in section
