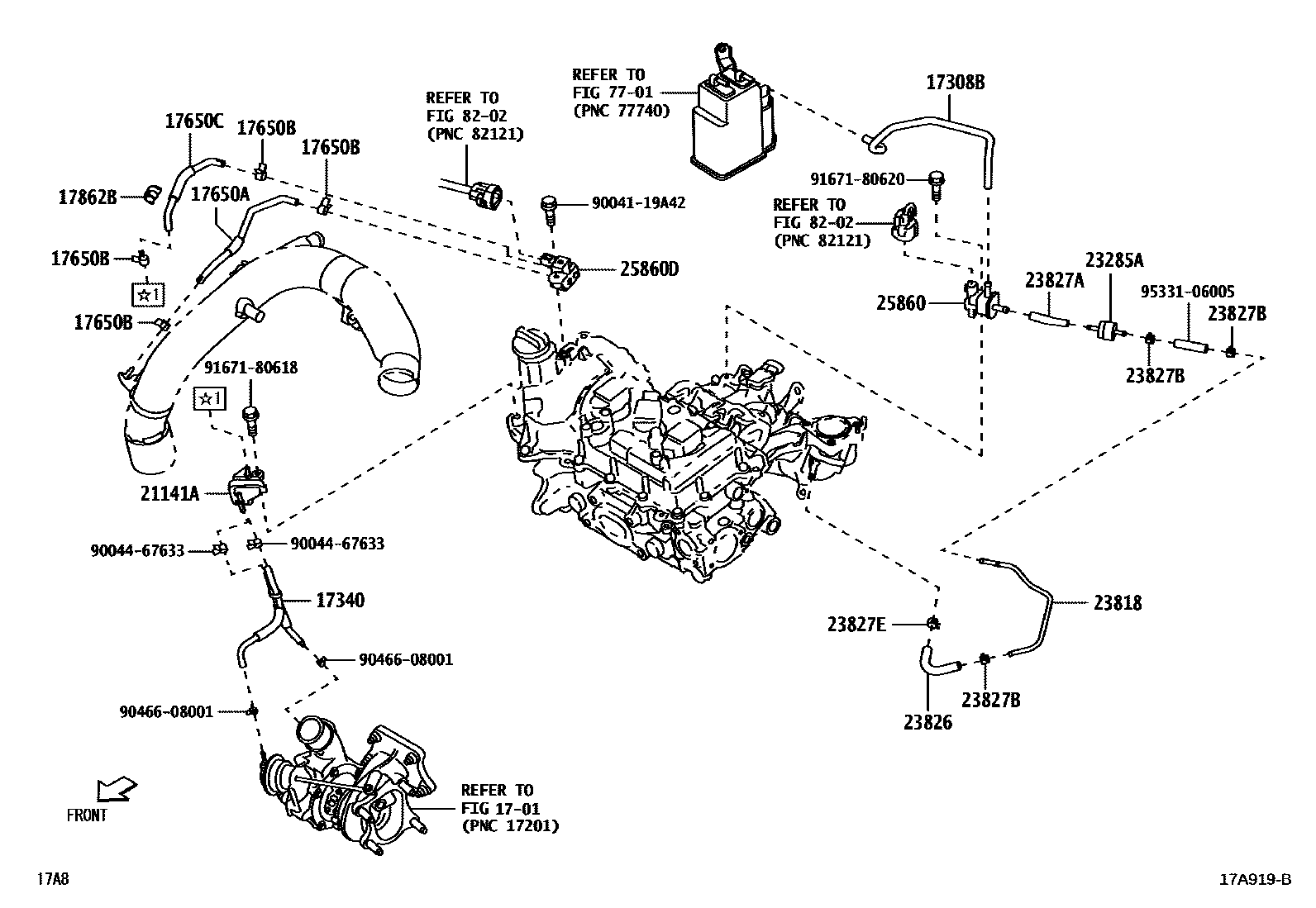

Toyota RAIZE — VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

17308BHOSE SUB-ASSY, VACUUM

main77754-B1140i1KRVET..A200,210¥550201910-202912

main77754-B1160iWAVE..A201¥410202111-202912

main77754-B1180iWAVEX..A202¥870202111-202912

17340HOSE ASSY, VACUUM SWITCHING VALVE

main17340-B1020i1KRVET..A200,210¥1,030201910-202912

17650AHOSE(FOR VACUUM SWITCHING VALVE)

main17294-B1030i1KRVET..A200,210¥740201910-202912

17650BCLIP(FOR VACUUM SWITCHING VALVE HOSE)

main90044-67633i1KRVET..A200,210¥250201910-202912

17650CHOSE(FOR VACUUM SWITCHING VALVE TO MANIFOLD)

main17294-B1040i1KRVET..A200,210¥740201910-202912

17862BCLAMP, HOSE

main90464-00831i1KRVET..A200,210¥110201910-202912

21141ACHAMBER, SUCTION

main21141-B1010i1KRVET..A200,210¥980201910-202912

23285AVALVE, CHECK, NO.1

main90048-20012i1KRVET..A200,210¥1,910201910-202111

main90048-20013i1KRVET..A210¥1,910202111-202912

23818PIPE, FUEL VAPOR FEED

main23818-B1010i1KRVET..A200,210¥1,430201910-202111

main23818-B1020i1KRVET..A210¥1,290202111-202912

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-B1030i1KRVET..A200,210¥300201910-202111

main23826-B1050i1KRVET..A210¥290202111-202912

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-B1070i1KRVET..A200,210¥230201910-202111

main23827-B1110iWAVE..A201¥1,610202111-202912

main23827-B1120iWAVEX..A202¥1,370202111-202912

main23827-B1130i1KRVET..A210¥210202111-202912

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90044-67230i1KRVET..A200,210¥250201910-202110

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96135-41100i1KRVET..A200,210¥140201910-202110

sub96135-51100¥130

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main90910-12280i1KRVET..A200,210¥0201910-202111

main90910-12282i1KRVET..A210202111-202912

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main89470-B1040i1KRVET..A200,210¥4,330201910-202912

7701

8202

9004119A42

main90041-19A42¥140

9004467633

main90044-67633¥250

9046608001

main90466-08001¥70

9167180618

main91671-80618¥60

9167180620

main91671-80620¥60

9533106005

main95331-06005¥80

24 parts on this diagram · 4 diagrams in section
