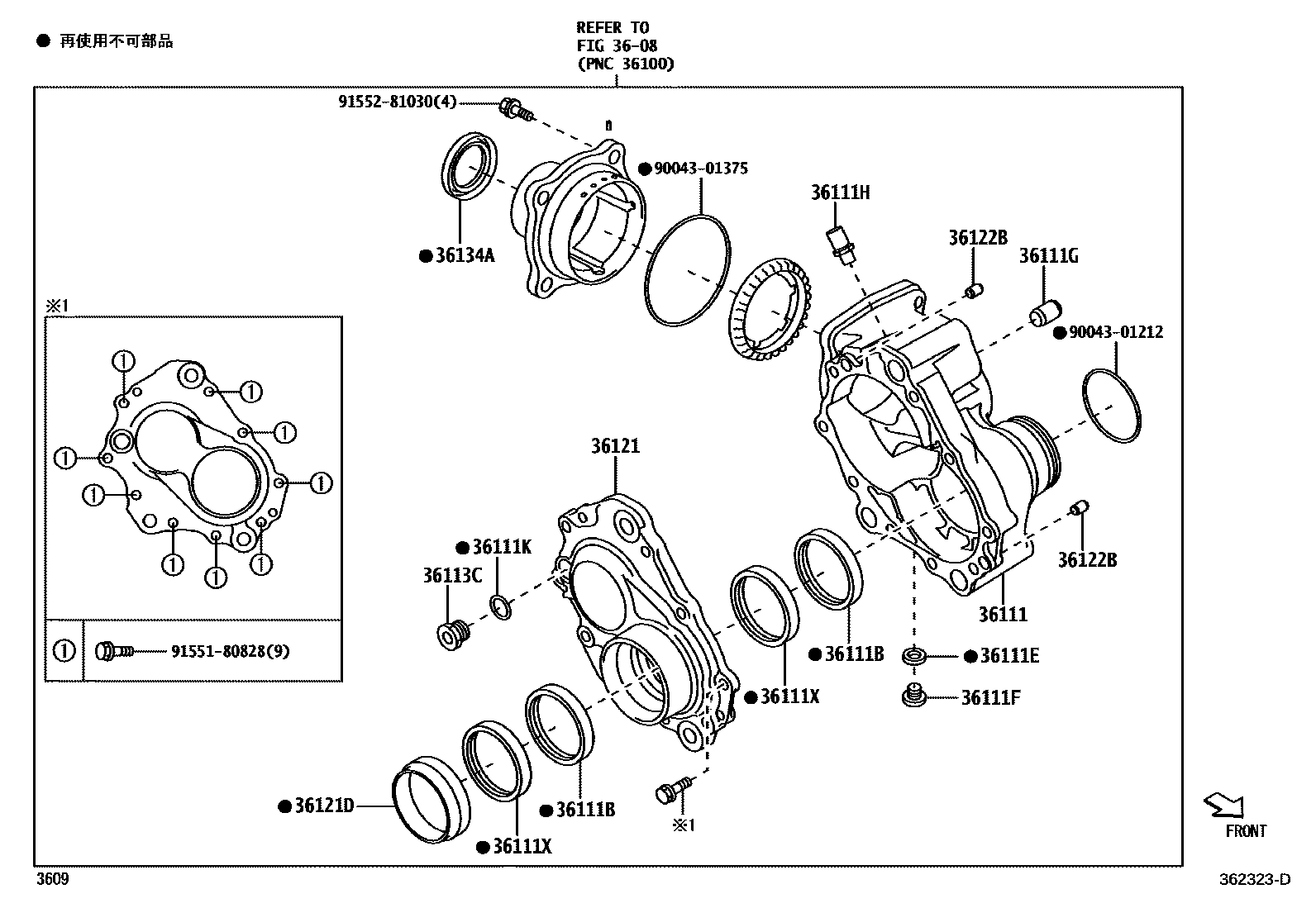

Toyota RAIZE — TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

3608

36111CASE, TRANSFER

main36111-B2010iA210¥19,000201910-202912

36111BSEAL, OIL (FOR TRANSFER CASE)

main90043-11444iA210¥560201910-202912

36111EGASKET (FOR TRANSFER CASE)

main90044-30178iA210¥70201910-202912

36111FPLUG (FOR TRANSFER CASE)

main90043-41035iA210¥190201910-202912

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90042-50173iA210¥290201910-202912

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90049-15026iA210¥400201910-202912

36111KGASKET (FOR TRANSFER CASE)

main90044-30336iA210¥110201910-202912

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90043-11445iA210¥640201910-202912

36113CPLUG (FOR TRANSFER CASE)

main90043-41094iA210¥360201910-202912

36121COVER, TRANSFER CASE, NO.1

main36121-B2010iA210¥14,700201910-202912

36121DSEAL, OIL(FOR TRANSFER CASE COVER)

main90043-11442iA210¥810201910-202912

36122BPIN, STRAIGHT(FOR TRANSFER CASE COVER)

main90042-50202iA210¥110201910-202912

36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)

main90043-11443iA210¥560201910-202912

9004301212

main90043-01212¥370

9004301375

main90043-01375¥500

9155180828

main91551-80828¥80

9155281030

main91552-81030¥100

18 parts on this diagram · 2 diagrams in section
