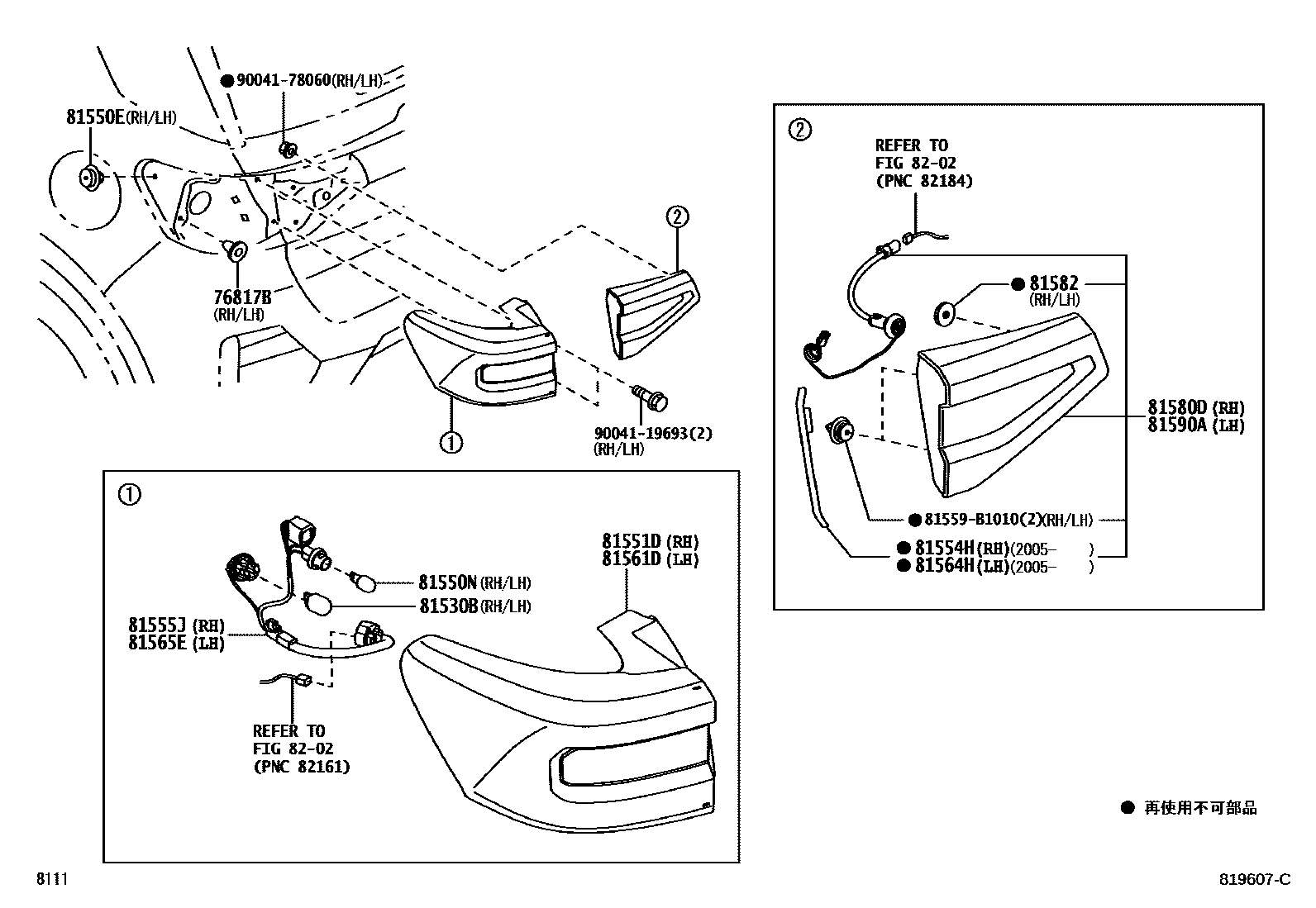

Toyota RAIZE — REAR COMBINATION LAMP

0001 1 0002 1

76817BCLIP, REAR LAMP

main90044-67602iA200,210¥110201910-202912

81530BBULB, REAR TURN SIGNAL LAMP

main90049-51143iA200,210¥300201910-202912

81550ECLIP(FOR REAR COMBINATION LAMP)

main81559-B2230iA200,210¥120201910-202912

81550NBULB, BACK UP LAMP

main90981-11055iA200,210¥200201910-202912

sub90981-11059¥200

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B1200iA200,210¥15,500201910-202912

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-B1020iA200,210¥650202005-202912

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-B1150iA200,210¥2,580201910-202912

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B1170iA200,210¥15,500201910-202912

81564HPACKING, REAR COMBINATION LAMP, LH

main81554-B1030iA200,210¥650202005-202912

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81565-B1030iA200,210¥2,580201910-202912

81580DLAMP ASSY, REAR, RH

main81580-B1010iA200,210¥13,900201910-202004

sub81580-B1011¥13,900

main81580-B1011iA200,210¥13,900202005-202912

81582GASKET, REAR LAMP

main81584-B1010iA200,210¥110201910-202912

81590ALAMP ASSY, REAR, LH

main81590-B1010iA200,210¥13,900201910-202004

sub81590-B1011¥13,900

main81590-B1011iA200,210¥13,900202005-202912

8202

81559B1010MOULDING, REAR COMBINATION LAMP, RH

main81559-B1010¥120

9004119693

main90041-19693¥100

9004178060

main90041-78060¥170

17 parts on this diagram · 2 diagrams in section
