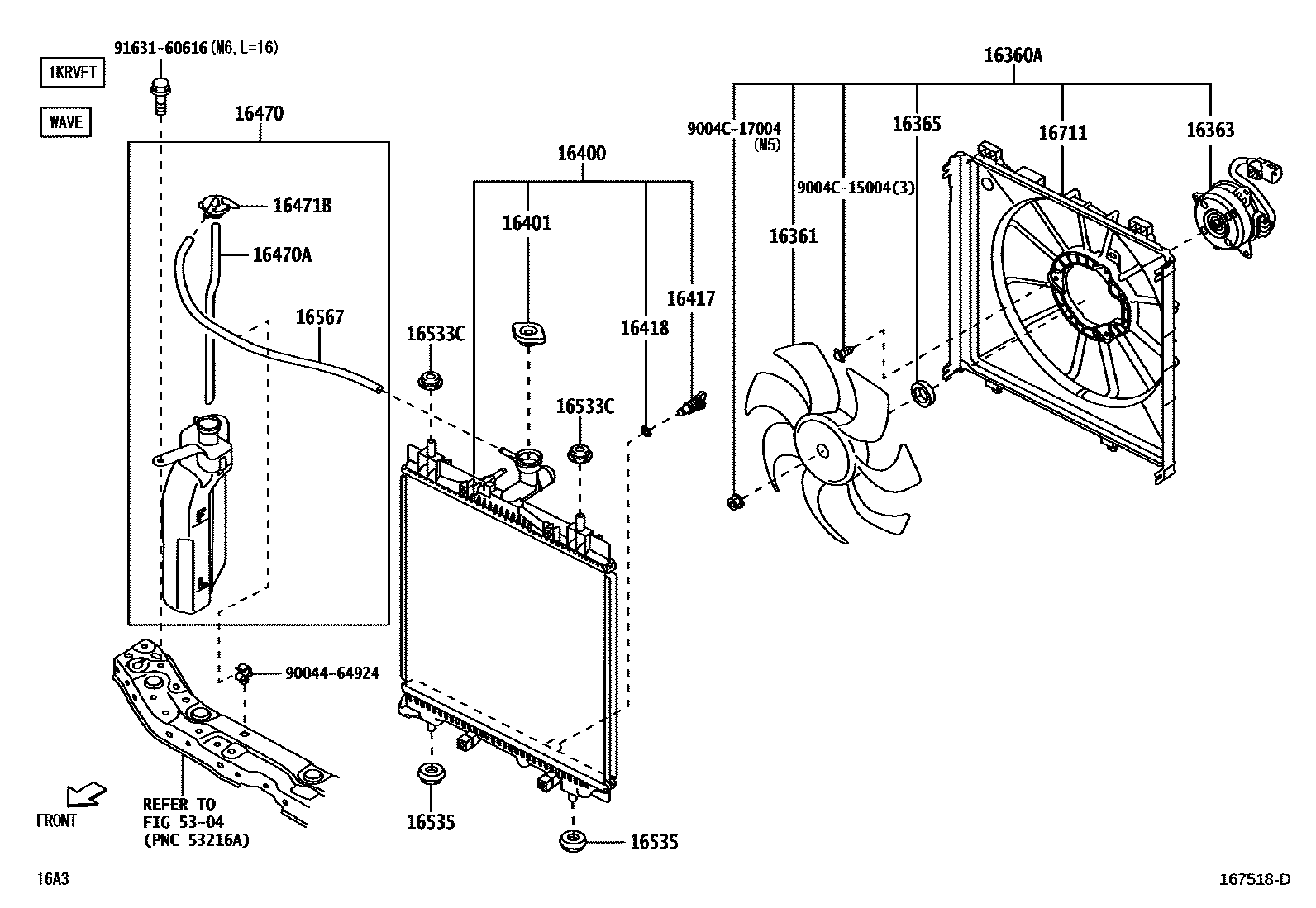

Toyota RAIZE — RADIATOR & WATER OUTLET

0001 1������,��������� 0003 1������,��������� 0004 1��� 0005 1��� 0006 1���

16360AFAN ASSY, W/MOTOR

main16360-B1070i1KRVET..A200,210¥28,800201910-202111

main16360-B1071i1KRVET..A210¥26,100202111-202912

main16360-B1230iWAVE..A201¥22,800202111-202912

main16360-B1240iWAVEX..A202¥22,800202111-202912

16361FAN

main16361-B1110i1KRVET..A200,210¥3,870201910-202912

16363MOTOR, COOLING FAN

main16363-B1100i1KRVET..A200,210¥19,300201910-202111

sub16363-B1170¥19,300

main16363-B1110iWAVE..A201¥14,300202111-202202

sub16363-B1150¥14,300

main16363-B1120iWAVEX..A202¥14,300202111-202202

sub16363-B1160¥14,300

main16363-B1130i1KRVET..A210¥17,600202111-202202

sub16363-B1140¥17,600

main16363-B1140i1KRVET..A210¥17,600202203-202912

main16363-B1150iWAVE..A201¥14,300202203-202912

main16363-B1160iWAVEX..A202¥14,300202203-202912

16365SPACER, FAN

main9004C-56001i1KRVET..A200,210¥120201910-202912

16400RADIATOR ASSY

main16400-B1420iWAV#..A20#¥22,900202111-202205

sub16400-B1421¥22,900

main16400-B1421iWAV#..A20#¥22,900202206-202912

main16400-B1480i1KRVET..A210¥25,700201910-202205

sub16400-B1481¥25,700

main16400-B1481i1KRVET..A210¥25,700202206-202912

16401CAP SUB-ASSY, RADIATOR

main16401-B5070i1KRVET..A200,210¥770201910-202912

16417COCK

main16417-30170iWAV#,1KRVET..A20#,210¥500201910-202912

16418PACKING

main16418-87503i1KRVET..A200,210¥160201910-202912

16470TANK ASSY, RADIATOR RESERVE

main16470-B1060i1KRVET..A200,210¥3,250201910-202111

sub16470-B1061¥3,250

main16470-B1061iWAV#,1KRVET..A20#,210¥3,250202111-202912

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-B1070i1KRVET..A200,210¥600201910-202912

16471BCAP, RESERVE TANK

main16471-B1030iWAV#,1KRVET..A20#,210¥330201910-202912

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621i1KRVET..A200,210¥250201910-202912

16535SUPPORT, RADIATOR, LOWER

main90044-80592i1KRVET..A200,210¥260201910-202912

16567HOSE(FOR RADIATOR RESERVE TANK)

main16472-B1060i1KRVET..A200,210¥600201910-202111

sub16472-B1061¥600

main16472-B1061iWAV#,1KRVET..A20#,210¥600202111-202912

16711SHROUD, FAN

main16711-B1100i1KRVET..A200,210¥4,690201910-202912

main16711-B1110iWAVEX..A202¥4,690202111-202912

5304

9004464924

main90044-64924¥160

9004C15004

main9004C-15004¥110

9004C17004

main9004C-17004¥120

9163160616

main91631-60616¥120

20 parts on this diagram · 5 diagrams in section
