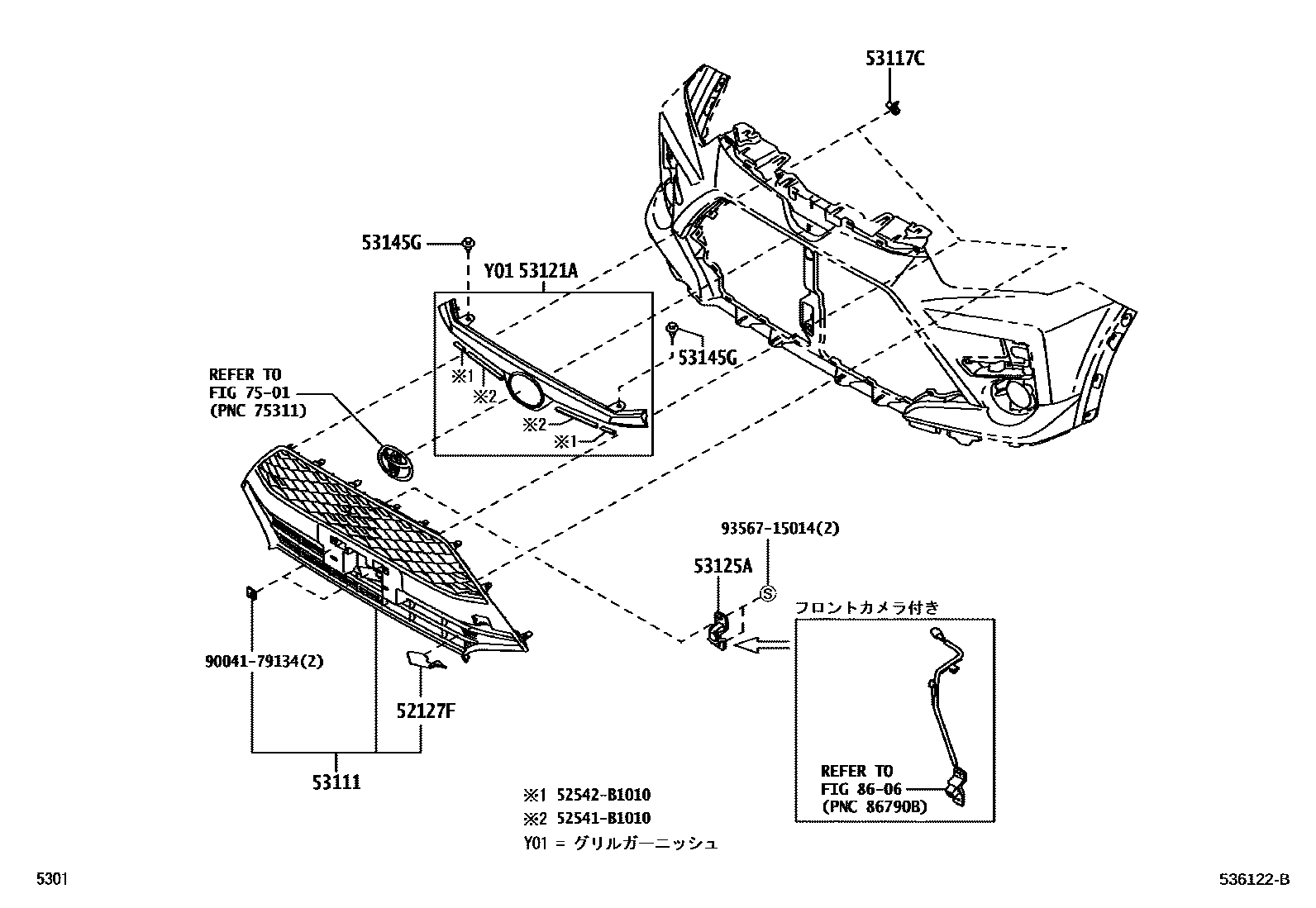

Toyota RAIZE — RADIATOR GRILLE

0001 1 0002 1

52127FCOVER, FRONT BUMPER HOLE

main52127-B1340iA200,210¥710201910-202111

main52127-B1340iA201,210¥710202111-202912

main52127-B1420iA202¥710202111-202912

53111GRILLE, RADIATOR

main53101-B1130iA200,210¥15,400201910-202111

�h���s�v

main53101-B1130iA201,210¥15,400202111-202912

�h���s�v

main53101-B1220iA202¥15,500202111-202912

�h���s�v

53117CRETAINER, RADIATOR GRILLE, NO.1

main76854-87401iA200,210¥180201910-202111

main76854-87401iA20#,210¥180202111-202912

53121AMOULDING, RADIATOR GRILLE

main53121-B1120iA200,210¥6,400201910-202111

main53121-B1120iA20#,210¥6,400202111-202912

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-B1050iA200,210¥500201910-202111

main53125-B1050iA20#,210¥500202111-202912

53145GCLIP, RADIATOR GRILLE

main90044-68378iA200,210¥110201910-202111

main90044-68378iA20#,210¥110202111-202912

7501

8606

52541B1010PROTECTOR, FRONT BUMPER

main52541-B1010¥220

52542B1010SEAL, FRONT BUMPER, CENTER

main52542-B1010¥120

9004179134

main90041-79134¥300

9356715014

main93567-15014¥120

12 parts on this diagram · 2 diagrams in section
