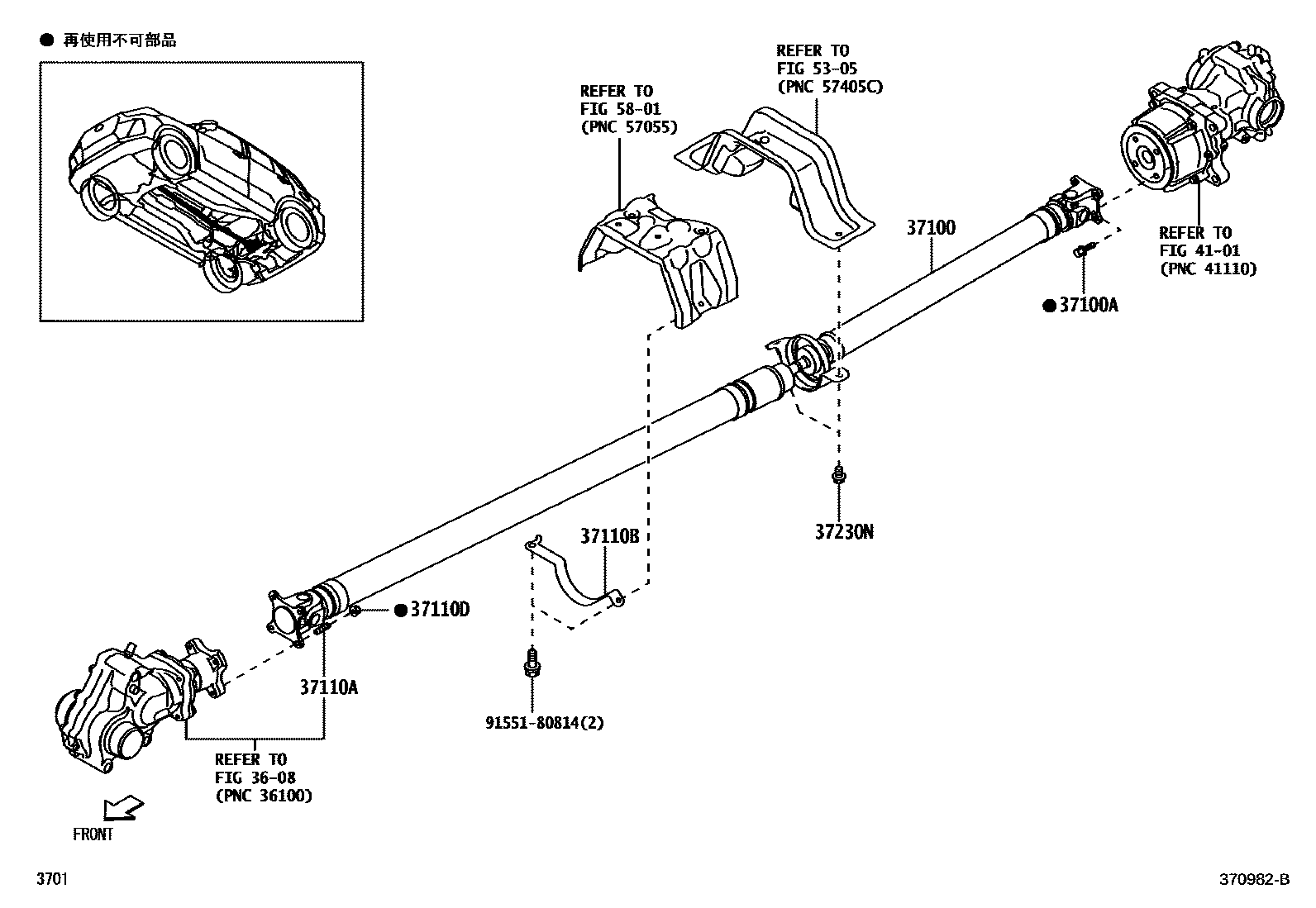

Toyota RAIZE — PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

3608

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-B1100iA210¥70,400201910-202101

sub37100-B1110¥77,500

main37100-B1101iA210¥70,400202111-202912

main37100-B1110iA210¥77,500202101-202111

sub37100-B1101¥70,400

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90041-05565iA210¥170201910-202111

main90041-05565iA210¥170202111-202912

37110ABOLT (FOR PROPELLER SHAFT)

main90041-16503iA210¥190201910-202912

37110BGUARD, PROPELLER SHAFT

main51569-B1040iA210¥1,420201910-202912

37110DNUT (FOR PROPELLER SHAFT)

main90041-78093iA210¥120201910-202111

main90041-78093iA210¥120202111-202912

37230NBOLT, NO.2 (FOR CENTER SUPPORT BEARING)

main91651-61020iA210¥130201910-202111

main91651-61020iA210¥130202111-202912

4101

5305

5801

9155180814

main91551-80814¥80

11 parts on this diagram · 2 diagrams in section
